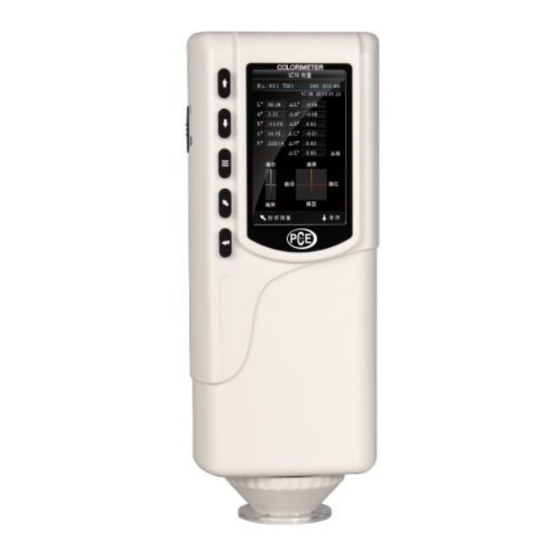

PCE Instruments PCE-CSM 5 Manual

Colour meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PCE Americas Inc.
PCE Instruments UK Ltd.
711 Commerce Way
Units 12/13
Suite 8
Southpoint Business Park
Jupiter
Ensign way
FL-33458
Hampshire / Southampton
USA
United Kingdom, SO31 4RF
From outside US: +1
From outside UK: +44
Tel: (561) 320-9162
Tel: (0) 2380 98703 0
Fax: (561) 320-9176
Fax: (0) 2380 98703 9
info@pce-americas.com
info@pce-instruments.com
www.pce-instruments.com/english
www.pce-instruments.com
Manual
Colour Meter PCE-CSM 5
Version 1.0
Date of creation: 05.10.2015
Date of last change: 12.04.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-CSM 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCE Instruments PCE-CSM 5

Summary of Contents for PCE Instruments PCE-CSM 5

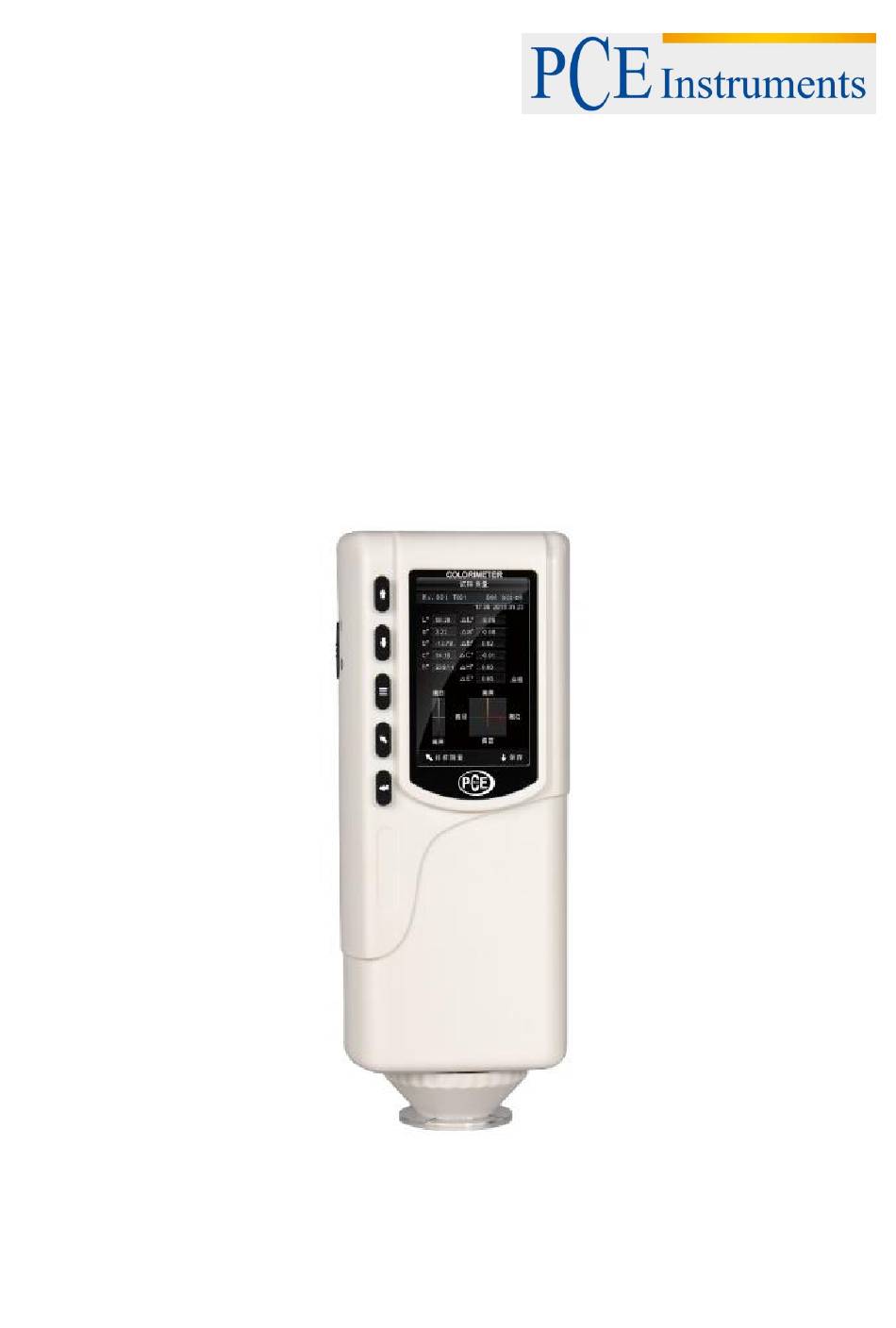

  • Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Colour Meter PCE-CSM 5 Version 1.0 Date of creation: 05.10.2015 Date of last change: 12.04.2016...

  • Page 2: Table Of Contents

    Contrast ............................ 15 Restore factory ......................... 15 Optional Accessories.................... 16 Powder test box PCE-CSM PTB ....................16 7.1.1 Construction ..........................16 7.1.2 Operation ............................. 16 Disposal ......................... 17 Contact ........................17 PCE Instruments UK ........................ 17 PCE Americas .......................... 17...

  • Page 3: Introduction

    XYZ, LCh, RGB, LUV). The PCE-CSM 5 also comes with two different measuring apertures (Ø4 mm and Ø8 mm) for different applications. After a measurement with the PCE-CSM 5, the reading can be used as a standard value. Other readings can be recorded as a sample and later be compared to the reference value.

  • Page 4: Specification

    Manual Specifications Technical specifications Measuring aperture Ø 8 mm, Ø 4 mm (exchangeable) Measuring geometry 8 °/d Sensor Silicon photoelectric diode Observation angle CIE 10 ° Measurement time 0.4 s Colour spaces CIE L*a*b CIE XYZ CIE RGB CIE L*u*v CIE*C*H Other colour parameters WI (E313, CIE, AATCC, Hunter)

  • Page 5: Contents Of Delivery

    Manual Contents of delivery 1 x colorimeter PCE-CSM 5 1 x 4 mm measuring aperture 1 x 8 mm measuring aperture 1 x USB cable 1 x aluminium carrying case 1 x battery 1 x mains adaptor 1 x wrist band...

  • Page 6: Interfaces

    Manual Interfaces Connector for mains adaptor interface interfaces  Connector for mains adaptor: Only use the mains adaptor which is included in the package. If it breaks down, use substitutions with the following characteristics: 5 V DC, 2 A.  USB interface: By using the USB interface, you can transfer data from the colorimeter to a PC.

  • Page 7: Change The Measuring Aperture

    Manual Installing the battery 1. Make sure that the colorimeter is turned off. 2. Open the cover of the battery compartment. 3. Insert the battery into the allocated space. 4. Close the cover of the battery compartment. Charging the battery The battery can only be charged when the colorimeter is connected to a PC or to the mains adaptor.

  • Page 8: Operation

    Manual Operation Turn on the device 1. Make sure the battery is installed or the device is connected to an external power source. 2. Turn on the device by pressing the ON/OFF switch. After a few seconds, you are automatically directed to the “Standard Measurement”...
  • Page 9 Manual You can add one or more sample measurements to this reading. To do so, you have to switch to the “Sample Measurement” screen: 1. Press the Enter button when you are in the result screen of the standard measurement function.

  • Page 10: Additional Functions

    Manual Additional functions 5.3.1 Records All measuring results are recorded and saved to the internal memory of the colorimeter (if auto save is , select “Record” and press Enter to active). To view the recorded data, press the Menu button confirm.

  • Page 11: Calibration

    Manual 5.3.2 Calibration , select “Calibrate“ and press Enter. To get to the calibration menu, press the Menu button Here you can select between white and black calibration. Use the arrow keys ( ) to select and press Enter to confirm. A confirmation screen with instructions will appear. White calibration If you want to perform a white calibration, place the white calibration plate on the measuring aperture.

  • Page 12: Tolerances

    Manual 5.3.4 Tolerances , select “Tolerance“ and press Enter To set up or adjust tolerances, press the Menu button . Now you get to the tolerance screen. Here you can set up tolerances. Select an option by using the arrow keys ( ) and press Enter to confirm.

  • Page 13: Select The Colour Space

    Manual 5.3.7 Select the colour space , select “Display” and press Enter To select the colour space, press the Menu button . Now you get to the colour space settings. Here you can choose between the following options: CIE L*a*b*C*H*, CIE L*a*b*, CIE XYZ, CIE RGB, CIEL*U*V, L*a*b* Whiteness&Yellowness, Color Fastness und Staining Fastness.

  • Page 14: Settings

    Manual Colour fastness Staining fastness Note: When the option CIE XYZ, CIE RGB or CIE L*U*V is active, you can only take standard measurements. Settings , select “Setting“ and press Enter To get to the settings, press the Menu button Here you have different options.

  • Page 15: Time Setting

    Manual Time setting Here you can set the time (“Set time”), date (“Set date”) and how time and date are displayed (“Time format” / “Date format”). Select the desired option by using the arrow keys ( ) and press Enter to confirm.

  • Page 16: Optional Accessories

    Manual Optional Accessories Powder test box PCE-CSM PTB With the optional powder test box PCE-CSM PTB you can determine the colorimetric parameters of powders. 7.1.1 Construction The PCE-CSM PTB consists of a base plate (1), a measuring plate with a powder compartment (2), a lens (3) and a mounting ring (4).

  • Page 17: Disposal

    In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
