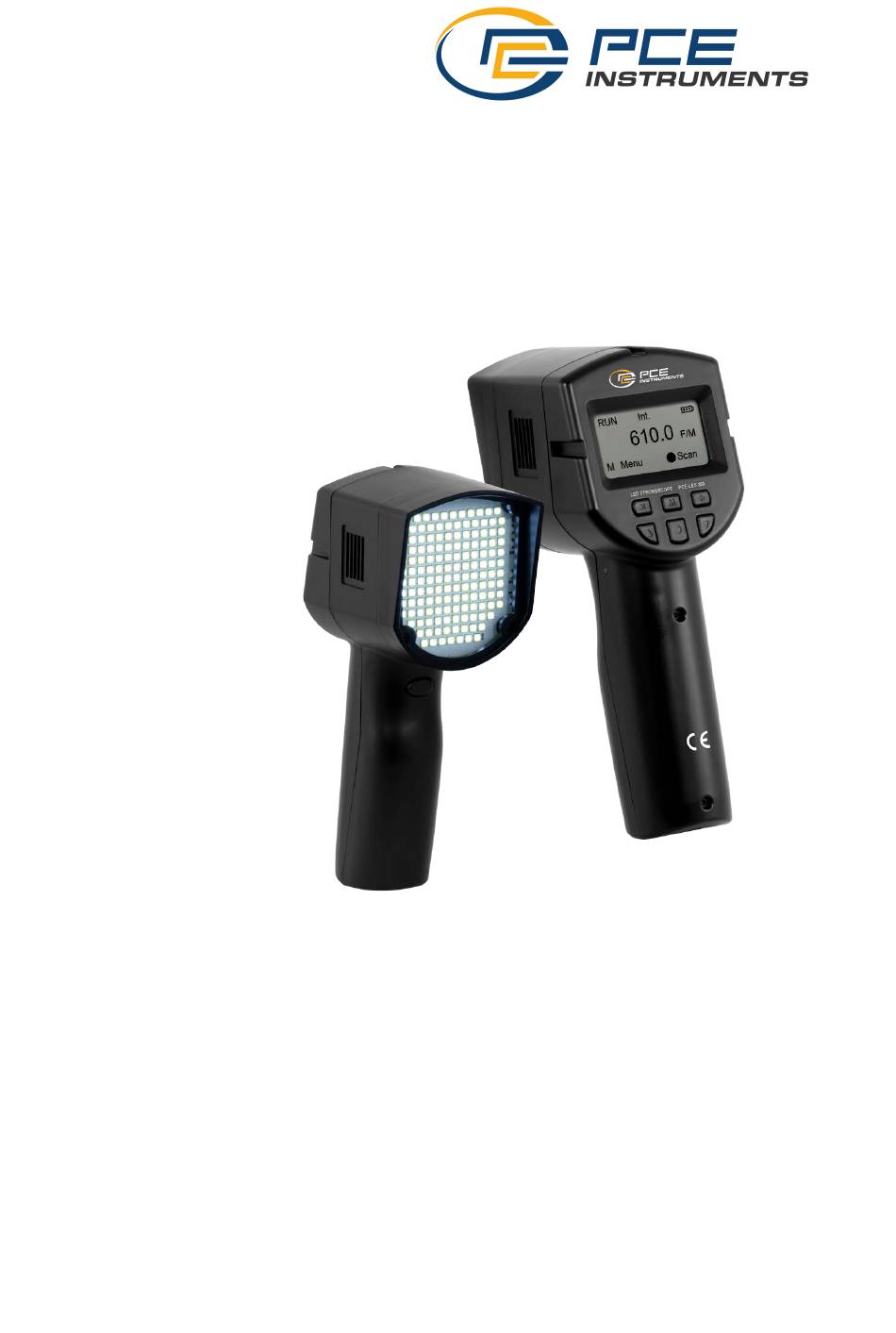

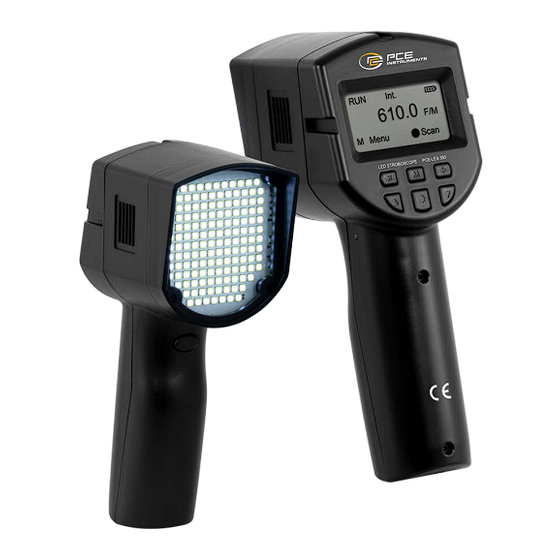

- Page 1 PCE-LES 350 PORTABLE LED STROBOSCOPE USER MANUAL...
-
Page 2: Operation
◼ Eye damage may result from direct viewing of the lamp used in this unit. ◼ Do Not Operate the unit in Explosive Areas. Servicing ◼ For repair, consult factory or authorized service center. Portable LED Stroboscope PCE-LES 350... -
Page 3: Table Of Contents
ONTROL PANEL OR DISPLAY PANEL ..................5 UN OR TOP FLASH ................. 5 UNCTION ....................5 ETUP ....................6 ETTING ................... 6 UMINANCE ETTING ................6 NERGY SAVING SETTINGS Ⅲ CHARGE BATTERY ................5 Ⅳ PACKING LIST ..................8 Portable LED Stroboscope PCE-LES 350... -
Page 4: Ⅰ Introduction
Widely used in packaging, printing, paper and other industries. The PCE-LES 350 has the following features: ◼ Operates from a rechargeable 12V DC Power or AC Adapter. ◼ High flash brightness, wide range and high accuracy of flash rate. -
Page 5: Ⅱ Operation
In Setup Menus, they are used to choose the up or down item. This key is used to enter or exit the Auto Scan process. In Setup menus, they are used to confirm. Portable LED Stroboscope PCE-LES 350... -
Page 6: Run Or Stop Flash
The key is used to control the flashing run or stop. You can S key press S key for 3 seconds to switch the instrument on/off. Press and hold the button for 3 seconds to force a reset when Reset the system is crashes. -
Page 7: Unit Setting
“Stop timing” or “Off timing” Press value,whose range is 1-250 minutes. Press key to increase/decrease the value. Press ×/÷ to change the value ×2 or ÷2.Press M or key to exit. Portable LED Stroboscope PCE-LES 350... -
Page 8: Ⅲ Charge Battery
The Input Connector Pin Assignments as follows: Pin1: Adapter output positive Pin2: Adapter output negative Charging need about 3 hours.When the LED indictor turn green,charge complete. It is nessary to use the original adapter. CAUTION: Portable LED Stroboscope PCE-LES 350... -
Page 9: Ⅳ Packing List
Ⅳ Packing list 1 x stroboscope PCE-LES 350 1 x mains adaptor 12.6 V / 2 A 1 x carrying case 1 x user manual Portable LED Stroboscope PCE-LES 350... - Page 10 For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE Instruments contact information Germany France...
