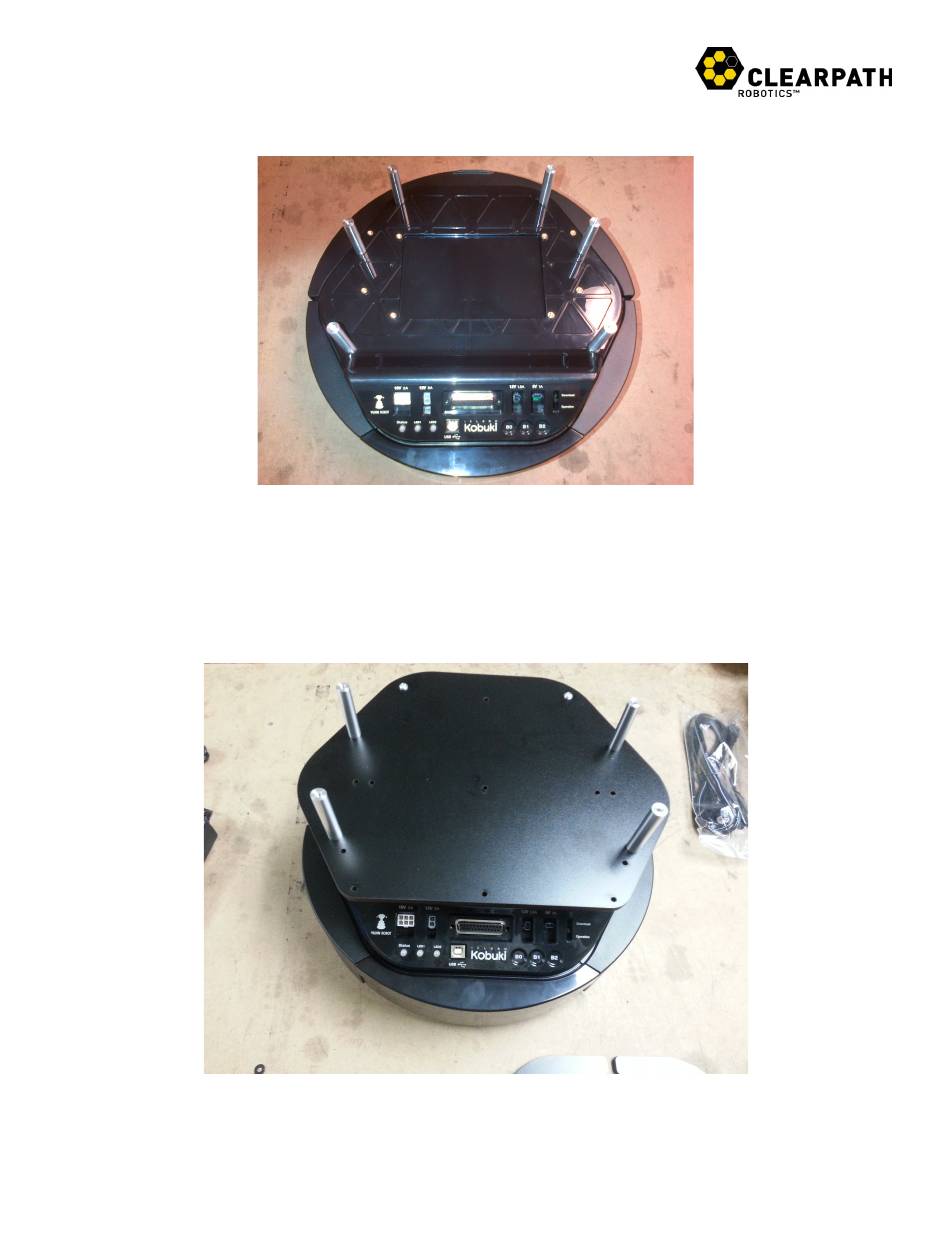

You w ill n eed t he f ollowing h ardware f or t he n ext s tep: 6 x 2 " s tandoffs. I nsert t he m ale e nds i nto t he 6
threaded h oles a s s hown b elow.
Next u p i s t he b ottom p late. T his i s t he p late w ith n o l ogos p rinted o n i t. F or t his s tep, t he f ollowing
hardware i s r equired: 2 x M 4 s crews, 2 x M 4 w ashers, 4 x 2 " s tandoffs, a 2 .5 m m h ex d river o r t he 2 " L -­‐
key t hat i s i ncluded i n t he k it, a nd t he T urtleBot b ottom p late. P lace t he p late o n t he 6 s tandoffs. S ecure
with 4 x 2 " s tandoffs a nd t wo M 4 s crews, u sing t he 2 x w ashers p rovided f or t he s crews. Y ou s hould n ow
have s omething l ike t his:
