Telikou DT-100 Instruction Manual

Desktop station

TELIKOU

Intercom System

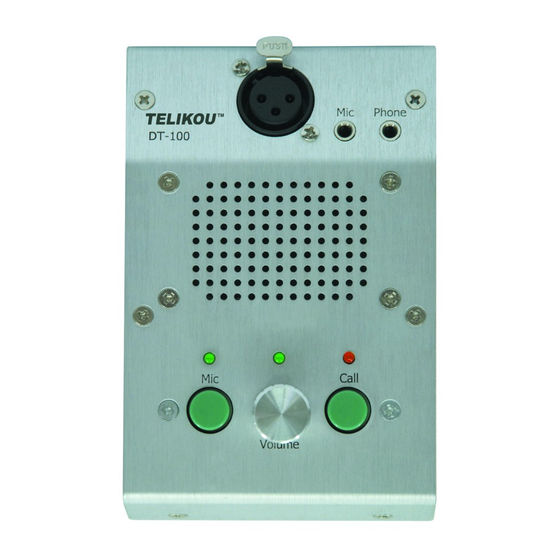

DT-100 Desktop Station

Instruction Manual

www.telikou.com

TELIKOU

While

makes every attempt to maintain the accuracy of the information contained

in its product manuals, that information is subject to change without notice

Table of Contents

Need help?

Do you have a question about the DT-100 and is the answer not in the manual?

Page 1 TELIKOU Intercom System DT-100 Desktop Station Instruction Manual © 2006 TELIKOU Systems All Rights Reserved www.telikou.com TELIKOU While makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice...
Page 2 TELIKOU BK-501 Belt Pack Introduction Thank you for choosing TELIKOU intercom product. DT-100 desktop station can work with any TELIKOU Intercom standard main station, and it is suitable for TV station, communication command center, outside broadcast van, show, project test field, and other applications where communication is required.
Page 3 Mic LED indicator will be ON; when it is pressed again, the circuit will be turned off, and the Mic LED will be OFF. When the connection between DT-100 and any TELIKOU Intercom main station is established, the Remote-Mic-Kill button of the main station can turn off the microphone of the DT-100 remotely.
Page 4 Solution 3: Check headset cord Problem: Can not turn on the Mic function Cause 1: The connection among TELIKOU main stations must go via Online connector on rear panel. The Online connector of this station connected to the Intercom Line connector of another station.
Page 5 TELIKOU BK-501 Belt Pack Current: <120mA Power Range: 12-30V DC Environment: -10~55°C Dimension: 105mm x 87mm x 48mm 4. Compatibility DT-100 desktop station is compatible with TELEX and Clear-Com Party-Line intercoms.
