Dc Power Supplies - Arista 7050 Series Quick Start Manual

1 Handle
2 Power supply status
LED
3 Release
The power supplies require power cables that comply with IEC-320. The accessory kit provides two
IEC-320 compliant power cables with appropriate connectors for the PSUs.
4.3.2

DC Power Supplies

The following DC power supplies are supported.

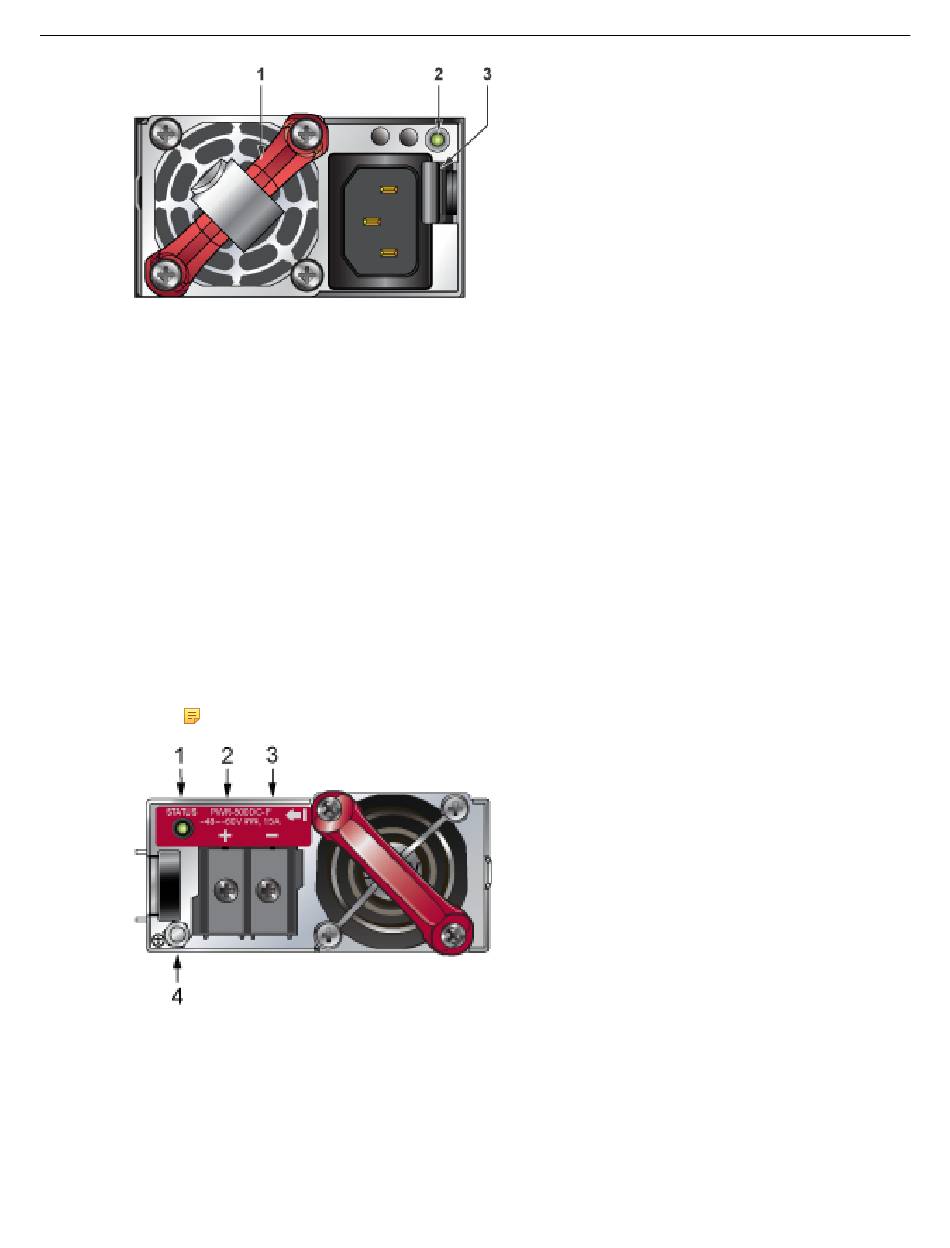

PWR-500-DC DC power supply
• PWR-500-DC
• PWR-511-DC
• PWR-1011-DC-RED
1 Power supply status
LED
2 -48V
Figure 21: PWR-1011-DC DC Power Supplies
20
Figure 19: PWR-1011-AC-RED AC Power Supply
Note: Handle color indicates airflow direction for all PSUs.
3 Battery Return
4 Protective Earth
Figure 20: PWR-500-DC DC Power Supplies
Figure 20: PWR-500-DC DC Power Supplies
displays PWR-1011-DC DC power supply.
displays
