3.2.3

Attaching the Switch to the Rack

After the rails are installed, the switch slides on the rails into the rack. Each bracket includes a thumb
screw that attaches the switch to the rail.
1. Lift the switch into the rack and insert the mounting brackets into the slide rails.
2. Slide the switch on the rails, toward the rear posts, until the mounting bracket flanges are flush with
the rail flanges attached to the rack posts.
3. Attach the bracket flanges to the rack post using the quick-release thumb screws supplied with the
brackets
14

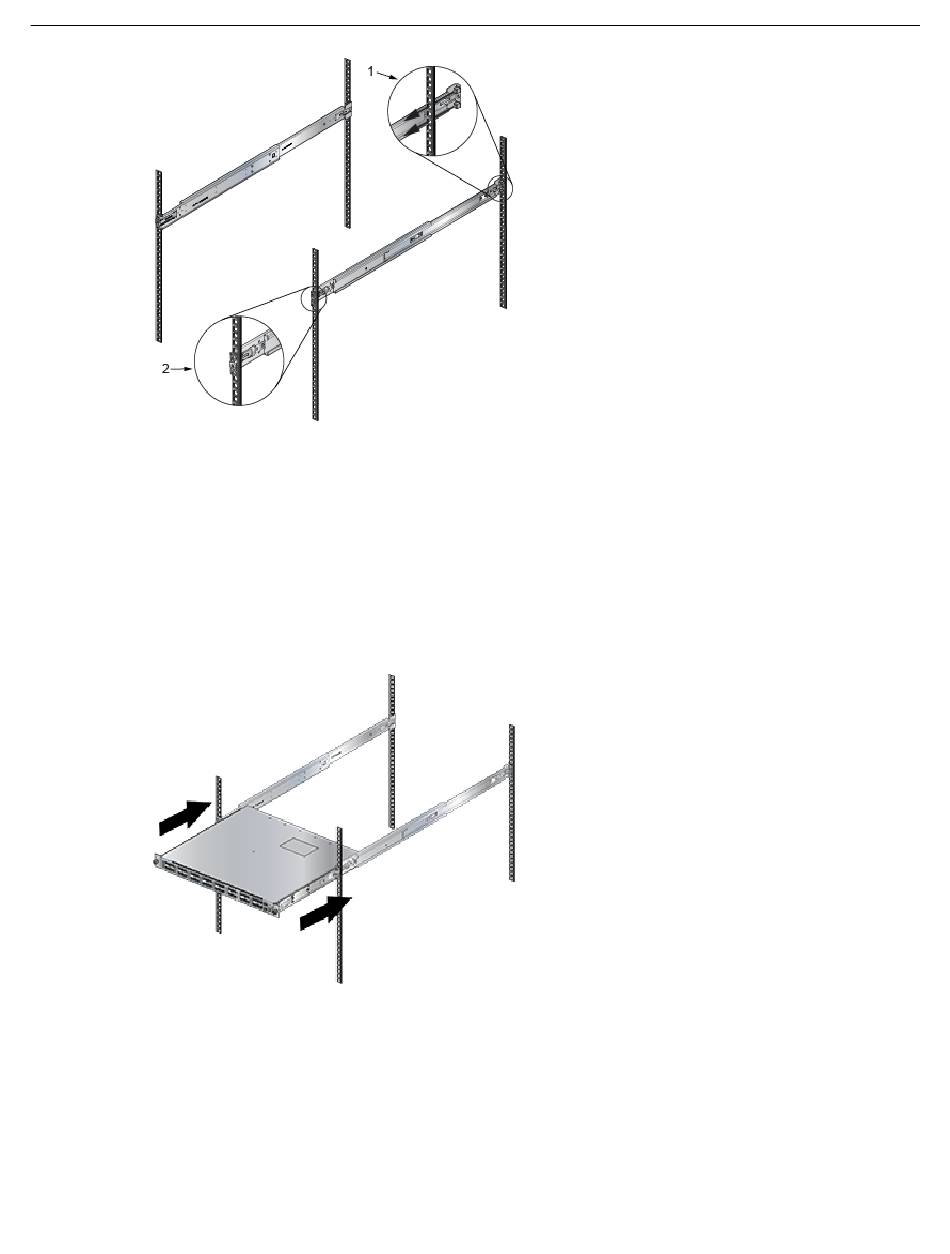

Figure 12: Inserting the Switch onto the Rails
(Figure 13: Attaching the Switch to the Rack Posts
Figure 11: Attaching the Rails
).
