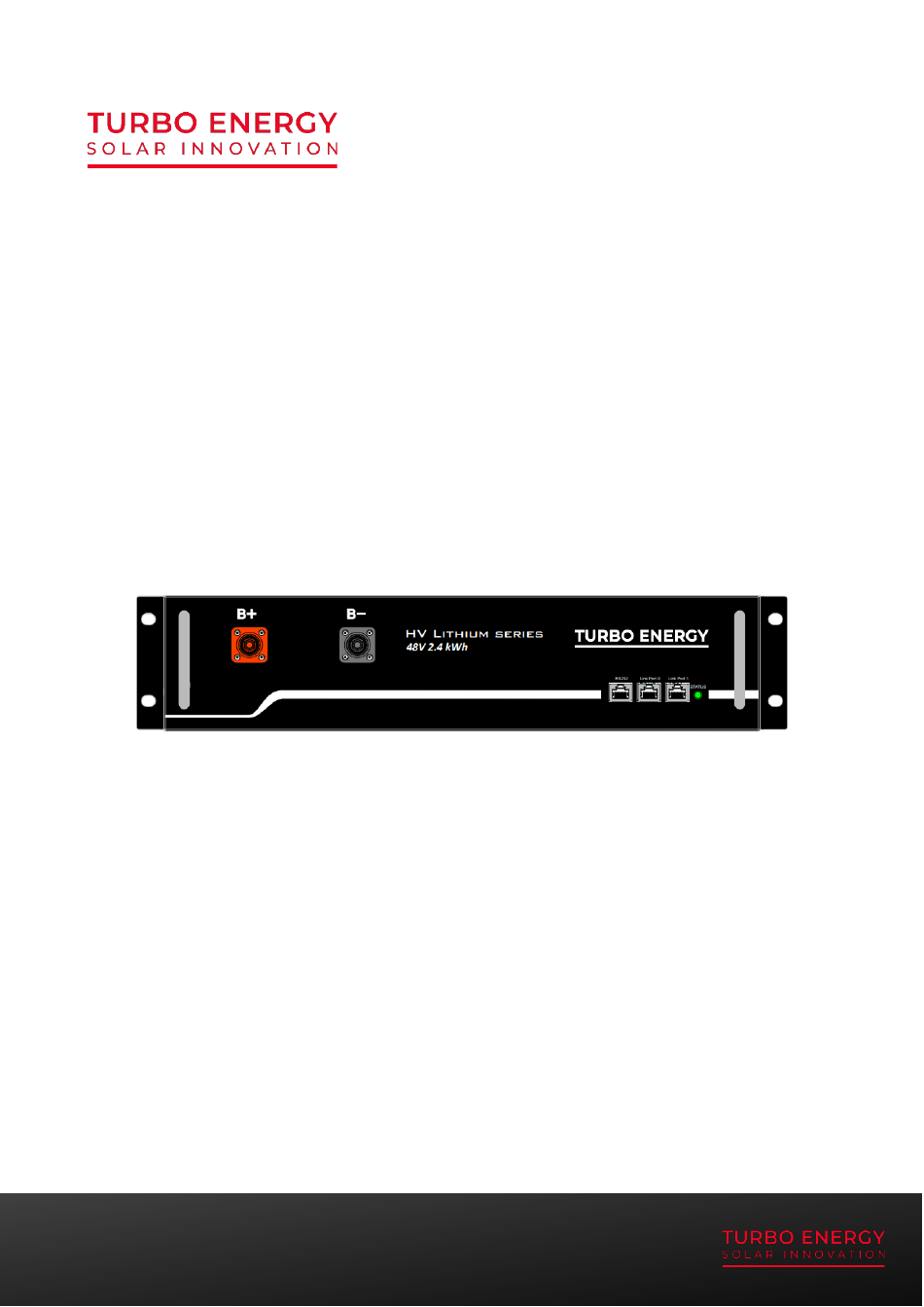

  • Page 1 Instruction Manual HV Lithium Series 48V 2,4 kWh Battery https://www.turbo-e.com/...

  • Page 2: Table Of Contents

    Read this manual before installing the battery and follow the instructions carefully during installation process. Content 1. Scope ........................3 2. Specifications ......................3 3. Battery Dimensions ....................4 4. Features ........................4 5. Operation ........................ 5 5.1. Battery Front ..................... 5 5.2.

  • Page 3: Scope

    1. Scope This document describes the basic operation of the Turbo Energy brand lithium- ion rechargeable battery (High Voltage Lithium Series 2.4 kWh model). This manual contains all the necessary details for understanding the operation of the equipment and for its correct application.

  • Page 4: Battery Dimensions

    3. Battery Dimensions • HV LS 48V 2.4 kWh 4. Features The HV Lithium Series 48V 2,4 kWh battery has the following features: Designed for use in photovoltaic applications. • Control Module SC0500-100S and SC1000-100S : The control module •...

  • Page 5: Operation

    5. Operation 5.1. Battery Front Power terminal + Power terminal - Port 1 Status RS232 Port 0 Power Termina +/- To connect battery series power cables. Status ● ● ● Status light: to show the battery module’s status (RUN , Alarm and Protection RS232 Terminal Console Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer...

  • Page 6: Control Module

    5.2. Control Module SC0500-100S SC1000-100S Related Product HV LS 48V 2.4/3.5 kWh BP HV LS 48V 2.4/3.5 kWh BP Controller Working Voltage 100~430Vdc 200~1000Vdc System Operation Voltage(Vdc) 100~430Vdc 200~1000Vdc Charge Current(Max.)(A) Discharge Voltage(Vdc) 100~430Vdc 200~1000Vdc Discharge Current(Max.)(A) Self-consumption Power(W) Dimension(W*D*H,mm) 442*390*132 442*390*132 Communication...
  • Page 7 External Power Terminal +/- Connect battery system with Inverter. Dry Contact Terminal Dry Contact Terminal: provided 2 input and 4 output dry contact signal. Reset Reset Button: Long press this button to restart the battery system. ADD Switch is a 6 bit dial switches to manually distribute the communication address of the battery system.
  • Page 8 12VDC Output Terminal Power supply for 3 level control module, with 12VDC cable: Status Status light: to show the battery module’s status (RUN , Alarm and Protection ● ● ● LED Status Indicators Battery capacity indicator: 4 green lamps, each light represents 25% capacity. LED Indicators Instructions Capacity SOC Descriptions...

  • Page 9: Assembly And Connection

    Note: The flashing instructions, flash 1 –0.25s light / off 3.75 seconds; flash 2 - 0.5s light / 0.5s off; flash 3 - 0.5s light / 1.5s off. 5.3. Assembly and Connection 5.3.1. Safety The following tools are required to install the battery pack: Wire Cutter Crimping Modular Plier Cable Ties...
  • Page 10 Cleaning The battery system has high voltage connectors. The clean condition will cause the isolation characteristic of the system. Before installation and system working must clean the dust and iron scurf to keep the environments cleaning. And the environment must have certain anti-dust ability. The system after long term running must check the humidity and dust cover or not.

  • Page 11: Items In The Pack

    5.3.2. Items in the pack 1) Battery module - Controller: Power Cable + (Battery Module 1pcs Orange/0.16m/4AWG/2 Orange and Main Controller Serial Surlok Terminal /module Connection) Power Cable - (Battery Module 1pcs Black/2m/4AWG/2 Black Surlok and Main Controller Serial Terminal /system Connection) 2000...

  • Page 12: Connections

    2) Inverter - Controller: Orange/2m/4AWG/SURLOK External Power Cable + Terminal/25-8 Terminal 2000 Black/2m/4AWG/SURLOK External Power Cable - Terminal/25-8 Terminal 2000 5.3.3. Connections Batteries may be connected in series. All batteries must be grounded. It is suggested to connect the installation ground to the rack (in case it exists) at the same point as all battery lands.
  • Page 13 In case of more than one pack (batteries + controller, ≤6 sets) it is necessary to use MBMS by Pylontech: MBMS1000 Operating voltage range 12 Vdc Communication interface CAN/RS485 Output dry contact interface 4 groups Input dry contact interface 2 groups System Consumption Size 442*190*44mm...
  • Page 14 Stop charging, ALM Protection Light lighting Flash Indicate based on Normal capacity Discharge Stop discharging, ALM Protection Light Light lighting Connection between different controllers and MBMS will be like follows:...

  • Page 15: System Diagram

    5.3.4. System Diagram • Diagram between BMS and battery modules: Multiple battery string parallel connection via CAN communication between • MBMS and BMS diagram (battery string qty. ≤6 sets) 5.4. Configuration of communications ADD Switch BMS is a 6 bit dial switches to manually distribute the communication address of the battery system.

  • Page 16: Communication For Single Bms (Battery String Qty. 1 Set)

    ADD Switch MBMS is a 6 bit dial switches to manually distribute the communication address of the battery system. Nether position is OFF, means “0”. Upper position is ON, means “1”. 1st bit to 4th bit is for address, the 5th and the 6th bit dial switch support a 120Ω resistance (Terminal Resistance).

  • Page 17: Multi Mbms Communication Mode

    5.4.3. Multi MBMS Communication Mode In some project it configures multi Energy Storage Systems. In this case will have multi MBMS. The address of MBMS must follow <MBMS’s Address Configure Table> 5.5. Power ON and OFF 5.5.1. Power ON Double check all the power cable and communication cable. Warning: MBMS must be turned on after all battery strings self-check finish.
  • Page 18 Caution: The time interval between every time switch OFF/ON the “Power Switch” shall >3 minutes. Caution: When the breaker is tripped off because the system has over current or short circuit, must after 30min to turn on it again, otherwise may cause the breaker damage.
  • Page 19 Warning: if the black-start function is used, the terminal of DC “+” and DC “-” will be electricity dangerous with high DC voltage output. (3) Switch the MBMS on after all the BMS turn on successful: And check whether MBMS is working. The “STATUS” lamp will light green. When the voltage difference between strings is smaller than the parameter, the battery string will do the parallel operation.

  • Page 20: System Debug

    Warning: Do not turn off the “Power Switch” during normal running condition. Otherwise will cause this battery string current surge by another battery strings. If turned off the “Power Switch” in normal running condition, must first turn off the PCS. 6.

  • Page 21: Trouble Shooting

    7. Trouble Shooting Problem Possible Reason Solution Turn on the BMS. All battery DC/DC power Change ⚫ ⚫ modules’ status LED is not board or control board control module working. is failure. (BMS module). communication Change ⚫ ⚫ cable from BMS to the broken first battery module is communication...
  • Page 22 Open the Power Relay The main control board Change ⚫ ⚫ Switch, but the relay can’t is failure. control module be open. (BMS module). The wire of the output ⚫ relay, or the wire of the Check the wire ⚫ power relay switch in loose the BMS is broken...

  • Page 23: Appendix

    change this battery module. Another failure Cell failure or electrical Can’t find out failure board failure. point or can’t check. Please contact with distributor. 8. Appendix 8.1. Security instructions Please read the instructions before use. Keep the battery out of reach of children. In operation, the battery should be kept in the set temperature ranges (between 0ºC and 50ºC) and a humidity less than 95%.

  • Page 24: Environmental Protection

    8.3. Environmental Protection Turbo Energy's batteries comply with EU ROHS regulations. 8.4. Contact Details For any incident with the battery write, indicating your contact details, an email to the address: info@turbo-e.com...
