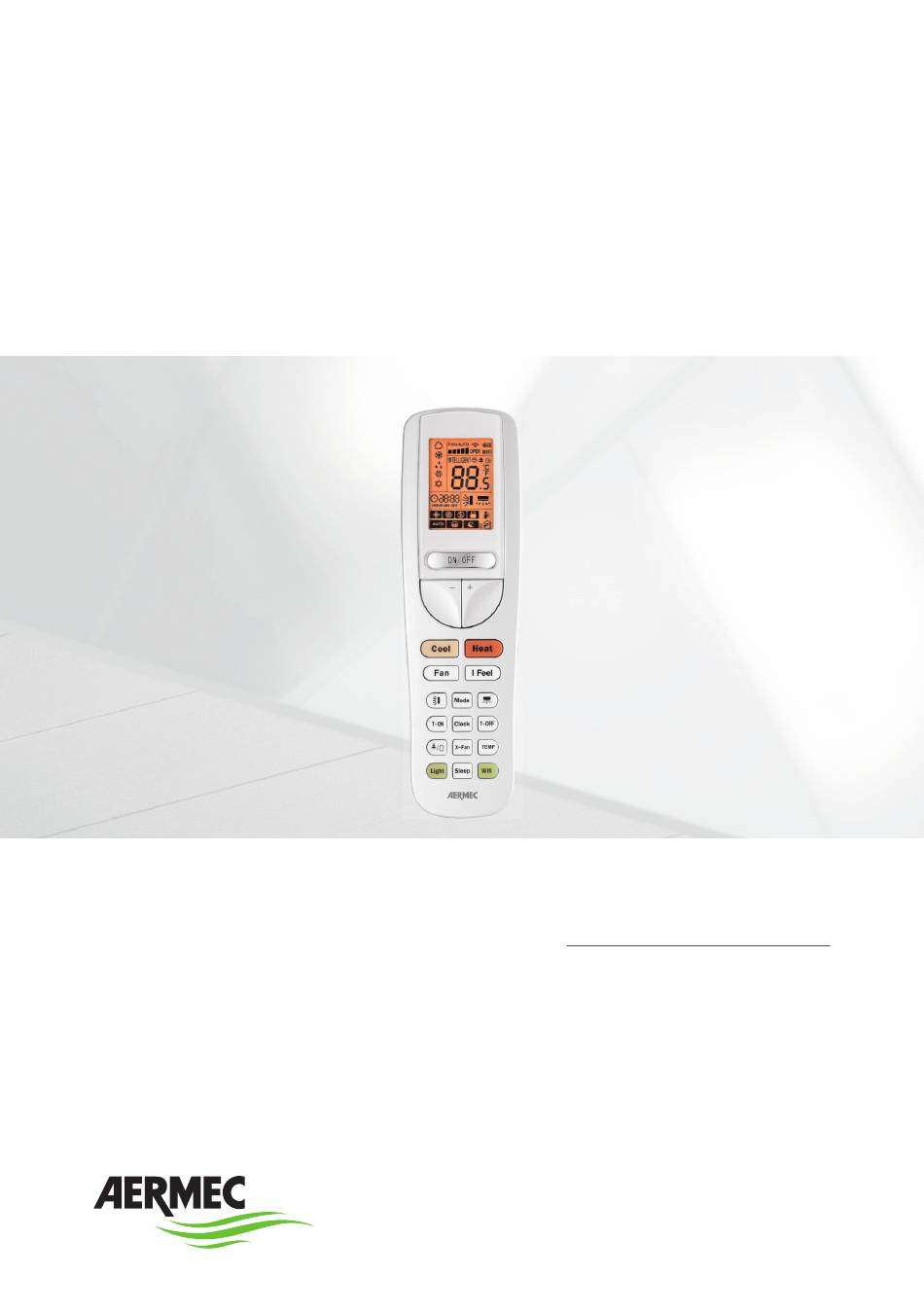

- Page 1 2 0 . 0 1 - 5 2 9 9 7 3 1 _ 0 0 T r a n s l a t i o n f r o m o r i g i n a l W L R C 4 0 U s e r m a n u a l ■...
- Page 2 Dear customer, Thank you for choosing an AERMEC product. It is the fruit of many years of experience and special design studies and has been made of the highest grade materials and with cutting edge technology. In addition, all our products bear the EC mark indicating that they meet the requirements of the European Machine Directive regarding safety.
-
Page 3: Table Of Contents
CONTENTS REMOTE CONTROL ..............................................4 FUNCTIONS AVAILABLE THROUGH THE REMOTE CONTROL ..............................6 SWITCHING THE UNIT ON OR OFF ........................................6 SETTING THE OPERATING SET-POINT ......................................6 SELECTING AN OPERATING MODE ........................................7 SETTING THE VENTILATION SPEED ........................................8 SETTING THE MOTORISED DELIVERY FIN (VERTICAL SWING) ..............................9 SETTING THE MOTORISED DELIVERY FIN (HORIZONTAL SWING) ............................ -
Page 4: Remote Control
I Feel Mode SYNCHRONISING THE REMOTE CONTROL WITH THE INDOOR UNIT: T-ON Clock T-OFF When the unit is in standby, stand no more than 2m away then press and hold the button for X-Fan Temp WIFI 3 seconds. The remote control and the unit will INTELLIGENT be automatically synchronised. - Page 5 WIFI INTELLIGENT Index Function represented by the icon: Indicates that AUTOMATIC mode is active Indicates that COOLING mode is active Indicates that DEHUMIDIFICATION mode is active Indicates that VENTILATION mode is active OUR ON OFF Indicates that HEATING mode is active WIFI Indicates that the SLEEP function is active INTELLIGENT...
-
Page 6: Functions Available Through The Remote Control
FUNCTIONS AVAILABLE VIA THE REMOTE CONTROL WIFI INTELLIGENT Switching on SWITCHING THE UNIT ON AND OFF ON/OFF By pressing the button it is possible to HOUR ON OFF switch the unit on or off. When off, some information is still displayed on the remote control: the operating ON/OFF set-point of the last operating mode used, and switch on timers programmed (ON) and any icons tied to the... -
Page 7: Selecting An Operating Mode
SELECTING AN OPERATING MODE If the unit is on, press the button to pass from MODE WIFI Selecting the operating mode one operating mode to the next, in the sequence shown below. COOL, HEAT and FAN modes can also be selected via the dedicated buttons (refer to the REMOTE CONTROL paragraph). -
Page 8: Setting The Ventilation Speed
SETTING THE VENTILATION SPEED Press the button to modify the fan speed. WIFI Setting the ventilation In DRY mode (dehumidification), the fan will speed automatically change to the minimum speed. ON/OFF AUTOMATIC Cool Heat Minimum speed I Feel Minimum medium speed Mode Medium speed T-ON... -
Page 9: Setting The Motorised Delivery Fin (Vertical Swing)
ON/OFF MODE SETTING THE VERTICAL MOTORISED DELIVERY FIN (SWING) WIFI If the unit is on, press the button to activate the swing function of the motorised delivery fin. This fin T-ON/T-OFF I FEEL varies the direction of the flow of air into the ambient, TEMP CLOCK on the basis of the selected position. -
Page 10: Setting Or Cancelling A Programmed Switch On (Timer On)
ON/OFF WIFI ON/OFF SETTING OR CANCELLING A PROGRAMMED SWITCH- ON (TIMER ON) Cool Heat ON/OFF I Feel The units have a timer for programming switch-on by WIFI Mode specifying the time that you want the unit to start. Cool Heat ON/OFF Press to access timer programming mode (in this... -
Page 11: Setting A System Time
MODE SETTING A SYSTEM TIME ON/OFF The remote control is fitted with an internal clock WIFI T-ON/T-OFF I FEEL that can display the current time; by pressing on the key, the clock icon will start to flash (this flashing TEMP MODE CLOCK will last 5 seconds, after this if no key is pressed you... -
Page 12: Air Purifier Button Cold Plasma
"COLD PLASMA" AIR PURIFIER BUTTON Capable of reducing pollutants, breaking down WIFI their molecules by means of electric discharges and causing the splitting of the water molecules in the air Setting the air purifier (Cold into positive and negative ions. These ions neutralise Plasma) function the molecules of the gaseous pollutants obtaining products that are normally present in clean air. -
Page 13: Activating / Deactivating The Extended Ventilation (X-Fan)
ACTIVATING / DEACTIVATING THE PROLONGED VEN- ON/OFF TILATION (X-FAN) FUNCTION WIFI During operation in cooling or dehumidification mode, condensate forms on the indoor unit heat exchanger as a result of the humidity in the air. Cool Heat Once the air conditioner has been switched off, the I Feel X-FAN function extends ventilation for a few minutes Setting the extended ventilation... -
Page 14: Activating / Deactivating The Night-Time Comfort Function
ACTIVATING / DEACTIVATING THE NIGHT-TIME COM- FORT FUNCTION WIFI Setting the night-time comfort The night-time comfort function controls the air function conditioner in an optimal way during the night. The following logic is applied: • In cooling or dehumidification mode: the temperature set-point is gradually increased to ON/OFF guarantee maximum comfort combined with energy... -
Page 15: Activating Or Deactivating The Wifi Function (Only With Wifi Device Installed)
ACTIVATING OR DEACTIVATING THE WIFI FUNCTION ON/OFF (ONLY WITH WIFI DEVICE INSTALLED) WIFI WIFI Press for 3 seconds to activate or deactivate the WIFI device installed in the indoor unit. The WIFI symbol on the display indicates that the Activating or deactivating the device is active. -
Page 16: Setting Or Removing The Button Lock
SETTING OR DISABLING THE BUTTON LOCK Simultaneously press to lock and unlock the Locking the keypad WIFI keypad. This function prevents any accidental changes to the settings. icon on the remote control display shows that the remote control keypad is locked. ON/OFF Cool Heat... -
Page 17: Activating / Deactivating The Antifreeze Functions
ACTIVATING / DEACTIVATING THE ANTIFREEZE FUNCTION Activating or deactivating the WIFI antifreeze function The antifreeze function is only available in heating mode. This function makes it possible to keep an operation setpoint in heating mode equivalent to 8°C, ensuring thus that the room temperature does not go below this threshold. -
Page 18: Setting The Unit Of Measurement
SETTING THE UNIT OF MEASUREMENT The unit can display the temperature values in °C or WIFI Setting the °F. To change the unit of measurement, switch off the unit of measurement unit and then simultaneously press the MODE buttons. The temperature value on the remote control display is automatically converted. -
Page 19: Replacing The Remote Control's Batteries
WARNING: • the battery charge level is shown on the remote control. When the “ ” icon flashes, replace the batteries as otherwise the remote WIFI control cannot work properly. INTELLIGENT • remove the batteries if the remote control is not used for a long time. - Page 20 DOWNLOAD THE LATEST VERSION: DOWNLOAD THE LATEST VERSION: TÉLÉCHARGER LA DERNIÈRE VERSION: TÉLÉCHARGER LA DERNIÈRE VERSION: http://www.aermec.com/qrcode.asp?q=15119 http://www.aermec.com/qrcode.asp?q=15120 http://www.aermec.com/qrcode.asp?q=15121 A E R M E C S . p . A . V i a R o m a , 9 9 6 - 3 7 0 4 0 B e v i l a c q u a ( V R ) - I t a l y T e l .
