ENDA ETS1410 Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.
ENDA ETS1410 PULSE INPUT TACHOMETER
Thank you for choosing ENDA ETS1410 TACHOMETER.
* 34x77 sized.
* Easy to use.
* Decimal point can be adjusted..
* Process value can be devided by a value
between 1 and 999.
* Sampling time is selected automatically
according to input frequency. Sampling time is
between 1 and 16s.
* Having Ce mark according to European Norms.
Order Code
Supply Voltage
230V AC +%10 -%20 ETS1410
24V AC ±%10 ETS1410-24AC
9-30V DC SMPS module ETS1410-12AC

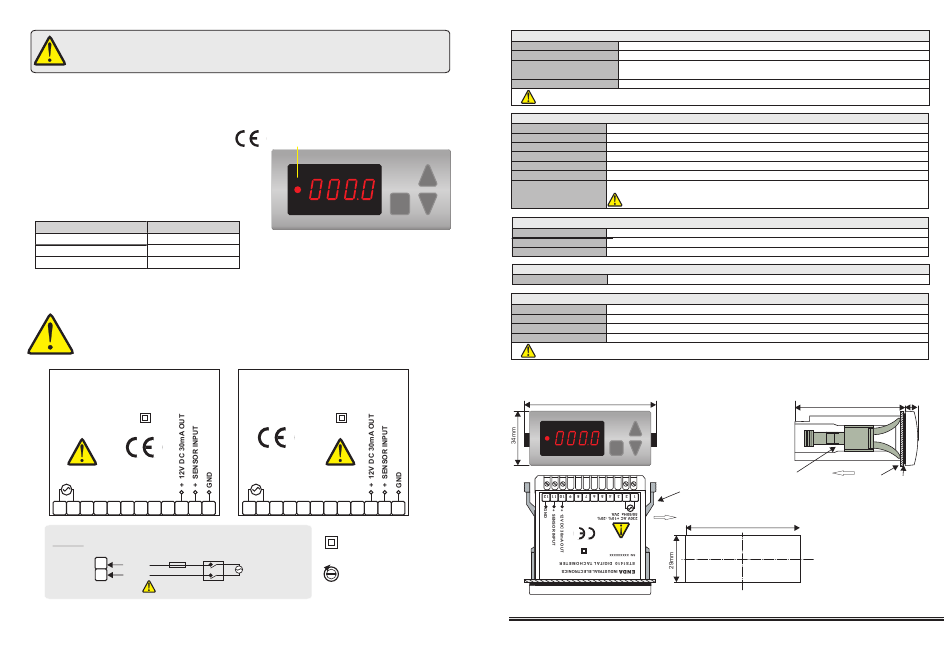

CONNECTION DIAGRAM
ENDA ETS1410 is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried on by a qualified staff
and must be according to the relevant locally applicable regulations.
the cables that are connected to the device must be free of energy. The device must be protected
against inadmissible humidity, vibrations, severe soiling and make sure that the operation
temperature is not exceeded. The cables should not be close to the power cables or components.
ENDA
INDUSTRIAL ELECTRONICS
ETS1410 DIGITAL TACHOMETER
SN: XXXXXXXXX
230V AC +10% -20%
50/60Hz 2VA
1 2 3 4 5 6 7 8 9 10 11 12
NOTE :
Fuse
SUPPLY :
F 100 mA
Switch
250V AC
1
Line
184-253V AC
2 Neutral
50/60Hz 2VA
Fuse should
be connected.
Note : 1) Mains supply cords shall meet the requirements of IEC 60227or IEC 60245.
2) In accordance with the safety regulations, the power supply switch shall bring the identification of
the relevant instrument and it should be easily accessible by the operator.
Input
signal
indicator
TACHOMETER
RPM
SIG
SET
ENDA
ETS 1410
During an installation, all of
ENDA
INDUSTRIAL ELECTRONICS
ETS1410-24AC DIGITAL TACHOMETER
SN: XXXXXXXXX
24V AC ±10%
50/60Hz 2VA
1 2 3 4 5 6 7 8 9 10 11 12
Equipment is protected throughout
by DOUBLE INSULATION.
230V AC Supply
Holding screw 0.4-0.5Nm
Cable size: 1,5mm²
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
0 ... +50 °C -25 ... +70°C (with no icing) /
80%, up to 31
Max. relative humidity
Rated pollution degree
According to EN 60529
Height
Maximum 2000m
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
230V AC +%10 -%20, 50/60Hz or 24V AC ±%10, 50/60Hz or optional 9-30V DC SMPS module.
Supply voltage
Power consumption Max. 2VA
Wiring 2.5mm² screw terminal connection
Display 4 digits, 9.1mm, 7 segment red display LED.
%0,01
Accuracy
EMC EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.)
Safety requirements EN 61010-1: 2001 (pollution degree 2, over voltage category II, measurement category I)
ETS1410 must not be used in location where measurement category is II, III or IV.
INPUTS
Sensor input 5 to 30V pulse
Measurement frequency The device measures frequencies between 0.07 and 3000Hz.
Sampling time
Automatically adjusted according to input frequency. Minimum: 1s,
OUTPUT
Auxiliary supply output 12V DC, Max. 30mA (unregulated)
HOUSING
Housing type Suitable for flush-panel mounting.
Dimensions
W34xH77xD70mm
Weight ETS1410 : Approx. 200g (after packing the device )
Self extinguishing plastics
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
DIMENSIONS
85mm
For removing mounting clamps:
TACHOMETER
RPM
SIG
SET
ENDA ETS 1410
Flush mounting
1
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
1/2 url : www.enda.com.tr
°C decreasing linearly 50% at 40 °C
Front panel : IP60
Rear panel : IP20
Depth
70mm
Push out the flush-mounting
clamp in direction 1 as shown
in the figure below. Then, pull
out the clamp in direction 2.
2
Flush mounting
clamp
clamp
Panel cut-out
Note : 1) Panel thickness
should be maximum
71mm
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the
panel.
34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Maximum: 16s
8mm
Panel Rubber
packing
ETS1410-E-02
