ENDA ETI741 Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

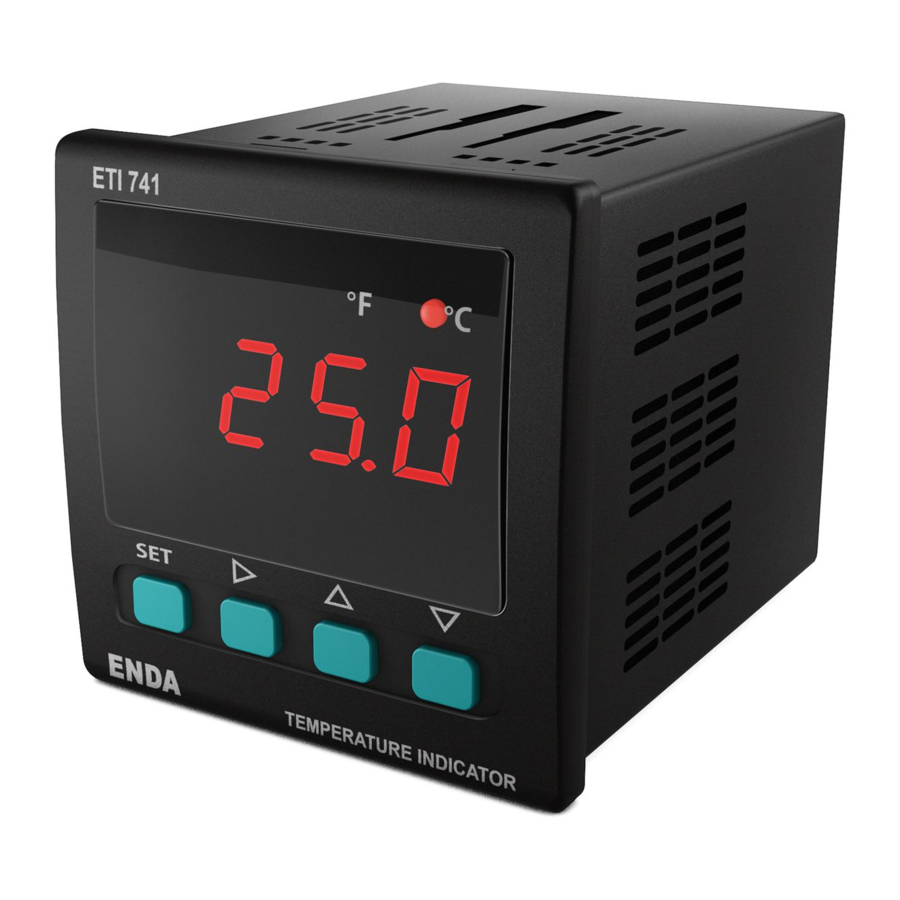

ENDA ETI741 TEMPERATURE INDICATOR
Thank you for choosing ENDA ETI741 temperature indicator.
* 72 x 72mm sized.
* 4 digits display.
* Selectable sensor type.
* Input offset feature.
* Parameter access protection on 3 levels.
* Programming just by using keypad.
* CE marked according to European Norms.
* Measurement at °C and °F units.

TECHNICAL SPECIFICATIONS

Sensor type
J (Fe-CuNi) Thermocouple
K (NiCr-Ni) Thermocouple
T (Cu-CuNi) Thermocouple
S (Pt10Rh-Pt) Thermocouple
R (Pt13Rh-Pt) Thermocouple
Pt 100 Resistance Thermometer
Pt 100 Resistance Thermometer

ENVIRONMENTAL CONDITIONS

Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.

ELECTRICAL CHARACTERISTICS

Supply
230V AC +10
Power consumption
Max. 7VA
Wiring 2.5mm² screw-terminal connections
Line resistance
For thermocouple max.100ohm, for 3 wired Pt 100 max. 20ohm
Data retention EEPROM (minimum 10 years)
EMC
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for standard EN 61000-4-3)
Safety requirements
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)

HOUSING

Housing type
Suitable for flush-panel mounting according to DIN 43 700.
Dimensions
W72xH72xD97mm
Approx. 395g (after packing)
Weight
Enclosure material Self extinguishing plastics.
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
Temperature range
°C
EN 60584 0... 600 °C
EN 60584 0...1200 °C
EN 60584 0... 400 °C
0...1600 °C
EN 60584
EN 60584 0...1600 °C
EN 60751 -200...600 °C
-99.9...300.0 °C
EN 60751
0 ... +50 °C / -25... +70 °C
80 % up to 31 °C decreasing linearly 50
According to EN 60529
Max. 2000m
% -20 , 50/60Hz or 24V AC ±10 , 50/60Hz or optional 9-30V %
°F
+32... +1112 0,2% (of full scale)
°F
+32... +2192 °F 0,2% (
0,2% (
+32... +752 °F
+32... +2912 °F 0,2% (
+32... +2912 °F 0,2% (
0,2% (
-328... +1112 °F
0,2% (
-99.9...+543.0 °F
% at 40 °C .
Front panel : IP65
Rear panel : IP20
%
1/3
ETI 741
°F °C
SET
ENDA
TEMPERATURE INDICATOR
Accuracy
1 digit
of ull scale) f 1 digit
of ull scale f )
1 digit
of ull scale f ) 1 digit
of ull scale f ) 1 digit
of ull scale f )
1 digit
of ull scale f ) 1 digit
DC / 7-24V AC ±10% SMPS
ETI741-E-04-R
