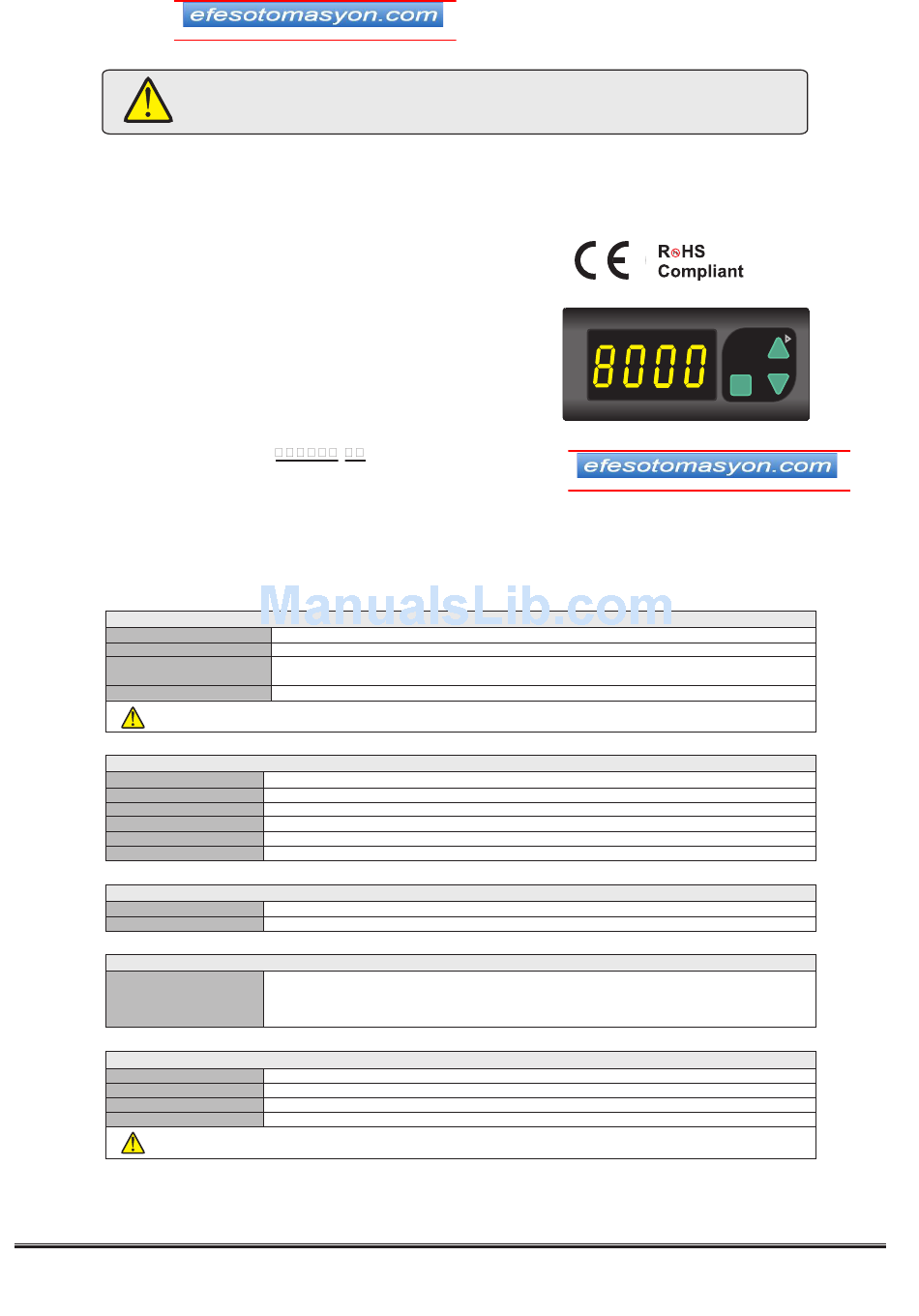

ENDA EDP 141 User Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

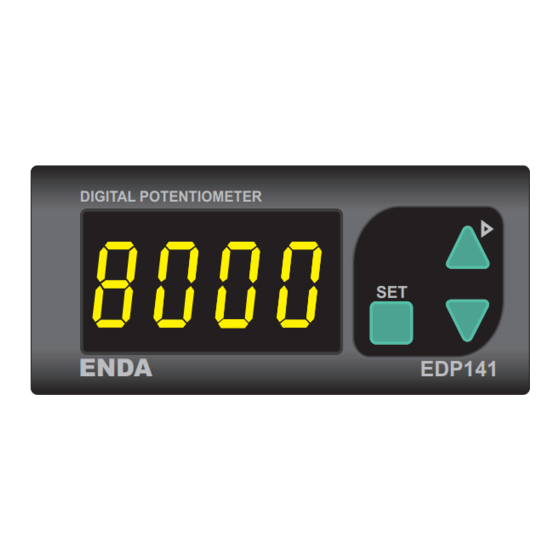

ENDA EDP 141 DIGITAL POTENTIOMETER
Thank you for choosing ENDA EDP 141 potentiometer.
* 35x77mm sized.
* 4 digits display.
* Easy to use by front panel keypad.
* Communication via RS-485 Modbus protocol or
synchronous running between two or more potentiomers.
(Optional)
* Preset value can be adjusted from external buttons.
* Display scale can be adjusted between -1999 and 8000.
* Decimal point can be adjusted between 1. and 3. digits.
* 0-10V output with adjustable minimum and maximum values.
* 'Soft on' and 'soft off' properties can be selected.
* Parameter access protection on 3 levels.
* CE marked according to European Norms.
Order Code : EDP141-
1- Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........9-30V DC / 7-24V AC

TECHNICAL SPECIFICATIONS

ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
INPUTS
Upwards input (UP)
Downwards input (DOWN)
OUTPUT
0-10V output
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL-TÜRKÝYE
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
-
1 2
2- Modbus Option
RS......RS-485 Modbus communication
Empty.....Don't support RS-485 Modbus communication
0 ... +50 °C/-25 ... +70°C (with no icing)
80 % up to 31 °C decreasing linearly 50
According to EN 60529
Max. 2000m
230V AC +10% -20%, 50/60Hz or 24V AC ±10% 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EN 61010-1: 2001 (pollution degree 2, overvoltage category II, measurement category I)
Contact input
Contact input
M aximum 10mA, d igitally adjusted
Resolution : 1/10000 V
Fluctuation : Maximum 30mV
Rise time from 0 to 10V is maximum 300ms
Suitable for flush-panel mounting according to DIN 43 700.
W77xH35xD71mm
Approx. 350g (after packing)
Self extinguishing plastics
DIGITAL POTENTIOMETER
ENDA
% at 40 °C .
Front panel : IP65
Rear panel : IP20
potentiometer output.
1/3
SET SET
EDP141
EDP141-E-08-R
