ENDA EPV241A Manual

Read this document carefully before using this device. The guarantee will be expired by
device damages if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

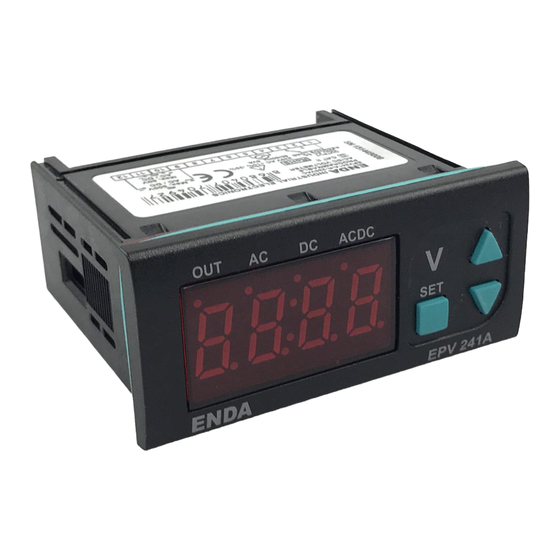

ENDA EPV241A AC/DC VOLTMETER
Thank you for choosing ENDA EPV241A AC/DC voltmeter.
* 77 x 35mm sized.
* 3 digits display.
* Values between -100V and 100 V can be indicated with one
decimal point.
* For maximum 50V AC/DC measurements, measurements
between -50V and +50V can be shown with two decimal digits
by having 10 times more accurate measurement input.
* Easy to configure with front panel keypad.
* Multifunctional alarm output (NO+NC) for upper and lower
limits.
* Communication feature over isolated RS485, using ModBus
RTU protocol. (Functional).
* Measuring type can be selected as AC, DC or true RMS.
* CE marked according to Europan Norms.
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/stroge temperature
Max. Relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases
ELECTRICAL CHARACTERISTICS
230V AC +10% -20%, 50/60Hz or 24V AC
Supply
Power consumption
Max. 5VA
Wiring 2.5mm² screw-terminal connections
Scale AC and RMS:
DC
0,01V (If C. I nP;50
Sensitivity
0,1V (If CINP;500 is selected and higher than -100V or lower than 100V for input values)
Accuracy
DC
Input Range
-500V...500V (
Input Impedance
870kΩ
Frequency Range DC , 10Hz - 200Hz
EN 61326-1: 2006
EMC
Safety requirements EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
OUTPUTS
Alarm output
Life expectancy for relay
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Yukarı Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANİYE/İSTANBUL/TÜRKİYE
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
0 ... +50°C/-25 ... 70°C
80% Relative humidity for temperatures up to 31 % °C,decreasing linearly to 50% at 40°C.
According to EN 60529
Max. 2000m
If C. I nP; 500 is selected, it is 0V...500V
:
If C. I nP ;500 is selected, it is -500V DC....500V DC or If C. I nP;50 is selected, it is -50V DC....50V DC
is selected )
1V (If CINP;500 is selected and lower than -100V or higher than 100V for input values)
±
1%
AC (Full scale)
±
1% (Full scale)
±
RMS 1% (Full scale)
If CINP 500 is selected, device breaks down at more than ±1250 DC voltages.)
-50V....50V (If CInp 50 is selected, device breaks down at more than ±125 DC voltages.)
(For square wave form 10Hz-70Hz)
Relay: 250V AC, 8A (for resistive load), NO+NC
Mechanical 30.000.000 ; Electrical 100.000 operation.
Suitable for flush-panel mounting. (According to DIN 43 700)
W77xH35xD71mm
Approx. 350g (after packing)
Self extinguishing plastics.
Fax : +90 216 365 74 01
2-Supply Voltage
1-Output
R......Relay 230VAC...230V AC
None...No relay 110VAC...110V AC
24VAC.....24V AC
SM...........9-30V DC / 7-24V AC
Front panel : IP65 , Rear panel : IP20
± 10% , 50/60Hz or optional 9-30V DC / 7-24V AC 10% SMPS
(For square wave form
(For square wave form
1/5
OUT AC DC ACDC
ENDA
Order Code : EPV241A-
3-ModBus
RSI..... Insulated ModBus (optional)
.
or If C. ı nP ;50 is selected, it is 0....50V
± 2%)
± 2%)
V
SET SET
EPV 241A
- -
1 2 3
±
EPV241A-E-02-R-201307
