ENDA ETS1410 User Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

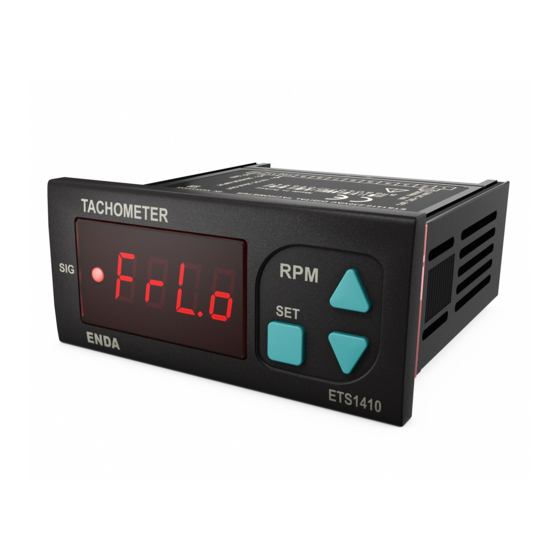

ENDA ETS1410 PULSE INPUT TACHOMETER
Thank you for choosing ENDA ETS1410 TACHOMETER.
* 35x77 sized.
* Easy to use.
* Decimal point can be adjusted..
* Process value can be devided by a value
between 1 and 999.
* Sampling time is selected automatically
according to input frequency. Sampling time is
between 1 and 16s.
* Having Ce mark according to European Norms.
Supply Voltage Order Code
230V AC +%10 -%20 ETS1410
24V AC %10 ± ETS1410-24AC

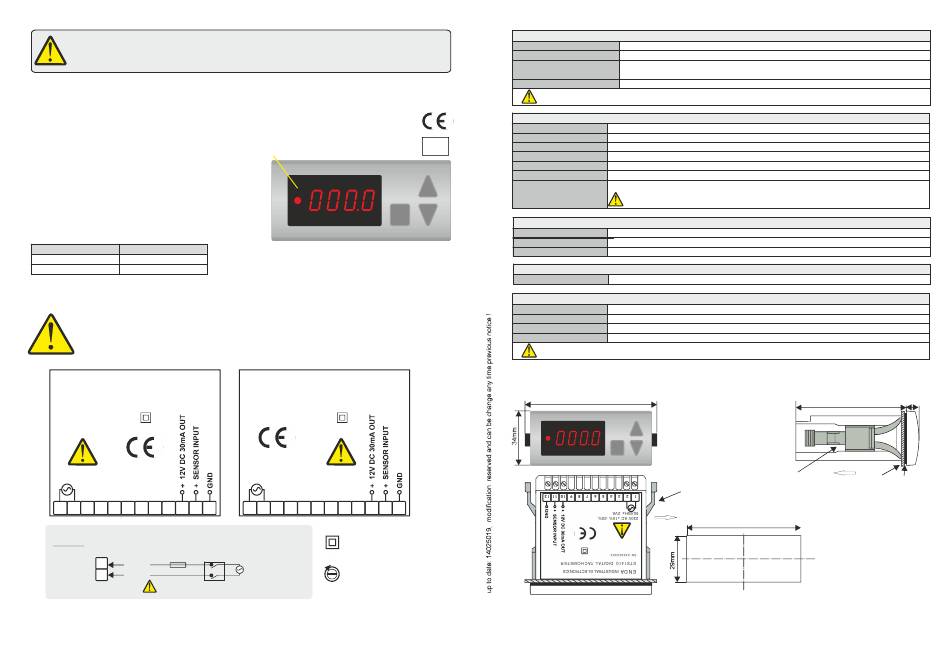

CONNECTION DIAGRAM
ENDA ETS1410 is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried on by a qualified staff
and must be according to the relevant locally applicable regulations. During an installation, all of
the cables that are connected to the device must be free of energy. The device must be protected
against inadmissible humidity, vibrations, severe soiling and make sure that the operation
temperature is not exceeded. The cables should not be close to the power cables or components.
ENDA
INDUSTRIAL ELECTRONICS
ETS1410 DIGITAL TACHOMETER
SN: XXXXXXXXX
230V AC +10% -20%
50/60Hz 2VA
1 2 3 4 5 6 7 8 9 10 11 12
NOTE :
SUPPLY : Fuse
F 100 mA
Switch
250V AC
1
Line
184-253V AC
2
50/60Hz 2VA
Neutral
Fuse should
be connected.
Note : 1) Mains supply cords shall meet the requirements of IEC 60227or IEC 60245.
2) In accordance with the safety regulations, the power supply switch shall bring the identification of
the relevant instrument and it should be easily accessible by the operator.
english
Input
signal
indicator
TACHOMETER
RPM
SIG
SET
ENDA
ETS 1410
ENDA
INDUSTRIAL ELECTRONICS
ETS1410-24AC DIGITAL TACHOMETER
SN: XXXXXXXXX
24V AC ±10%
50/60Hz 2VA
1 2 3 4 5 6 7 8 9 10 11 12
Equipment is protected throughout
by DOUBLE INSULATION.
230V AC Supply
Holding screw 0.4-0.5Nm
Cable size: 1,5mm²
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply voltage
Power consumption
RoHS
Wiring
conform
Display
Accuracy
EMC
Safety requirements
INPUTS
Sensor input
Measurement frequency
Sampling time
OUTPUT
Auxiliary supply output
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
DIMENSIONS
85mm
TACHOMETER
SIG
ENDA
SURAN
Industrieelektronik
Dettinger Str. 9 / D-72160 Horb a.N
1. / 2 ETS1410-E
0 ... +50°C/-25 ... +70°C (with no icing)
80%, up to 31°C decreasing linearly 50% at 40°C
According to EN 60529 Front panel : IP60
Rare panel : IP20
Maximum 2000m
230V AC +%10 -%20, 50/60Hz or 24V AC/DC %10, 50/60Hz
±
Max. 2VA
2.5mm² screw terminal connection
4 digits, 9.1mm, 7 segment red display LED.
%0,01
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.)
EN 61010-1: 2001 (pollution degree 2, over voltage category II, measurement category I)
ETS1410 must not be used in location where measurement category is II, III or IV.
5 to 30V pulse
The device measures frequencies between 0.07 and 3000Hz.
Automatically adjusted according to input frequency. Minimum: 1s,
12V DC, Max. 30mA (unregulated)
Suitable for flush-panel mounting.
W35xH77xD71mm
ETS1410 : Approx. 200g (after packing the device )
Self extinguishing plastics
For removing mounting clamps:
RPM
Push out the flush-mounting
1
clamp in direction as shown
SET
in the figure below. Then, pull
2.
out the clamp in direction
ETS 1410
Flush mounting
Flush mounting
clamp
clamp
1
Panel cut-out
71mm
Tel.: +49 (0)7451 / 625 617
Fax: +49 (0)7451 / 625 0650
Maximum: 16s
Depth
8mm
71mm
2
Panel Rubber
packing
Note : 1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the
panel.
E-mail : info@suran-elektronik.de
Internet : www.suran-elektronik.de
