ENDA EDP2041 Manual

Read this document carefully before using this device. The guarantee will be expired by
damages if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

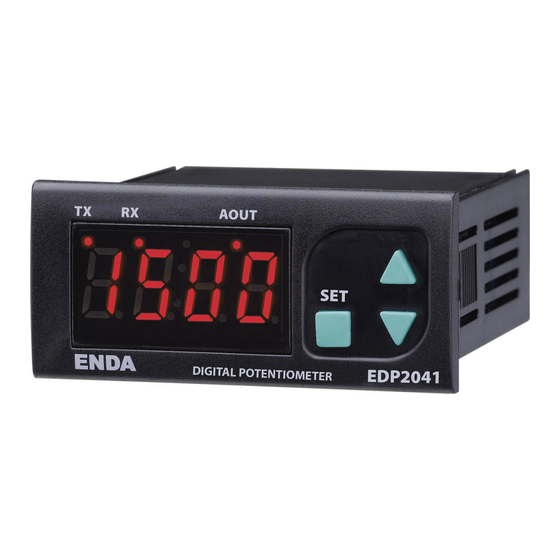

ENDA EDP2041 DIGITAL POTENTIOMETER
Thank you for choosing ENDA EDP2041 potentiometer.
3 x77mm sized. 5
4 digits display.
Easy to use by front panel keypad
Communication via RS-485 Modbus protocol or
synchronous running between two or more potentiomers.
(Optional)
Preset value can be adjusted from external buttons.
Display scale can be adjusted between -1999 and 9999.
(Full scale can not be higher than a 9999)
Decimal point can be adjusted between 1. and 3. digits.
0-10V,0-20 mA a and 4-20mA output with adjustable minimum and
maximum values.
'Soft on' and 'soft off' properties can be selected.
Parameter access protection on 3 levels.
CE marked according to European Norms.
Order Code : EDP
1- Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........9-30V DC / 7-24V
AC
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
INPUTS
Upwards input (UP)
Downwards input (DOWN)
OUTPUT
0-10V output
OUTPUT
0-20mA output
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or
SURAN
Industrieelektronik
Dettinger Str. 9 / D-72160 Horb a.N
.
20 41- -
1
2
2- Modbus Option
RS...... With
Empty .....
0 ... +50°C/-25 ... +70°C (without icing)
80% Relative humidity for temperatures up to 31 % °C, decreasing linearly to 50% at 40°C.
According to EN 60529
Max. 2000m
230V AC +10% -20%, 50/60Hz or 24V AC ±10% 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 2006 (Performance criterion B for the EMC standards)
EN 61010-1: 2010 (pollution degree 2, overvoltage category II, measurement category I)
Contact input or max. 24VDC logic input (active low)
Contact input or max. 24VDC logic input (active low)
Digitally adjusted maximum 10mA, max. 10V potentiometer output.
Accuracy :%0.1 Resolution : 1mV
Fluctuation : Maximum 30mV
Rise time from 0 to 10V is maximum 300ms
Digitally adjusted maximum 12V, max.20 mA potentiometer output.
Accuracy: %0.1 Resolution : 2 A
Fluctuation : Maximum 60 A
Rise time from 0 to 20mA is maximum 300ms
Suitable for flush-panel mounting according to DIN 43 700.
W77xH35xD71mm
Approx. 350g (after packing)
Self extinguishing plastics
Tel.: +49 (0)7451 / 625 617
Fax: +49 (0)7451 / 625 0650
RS-485 Modbus communication
Without RS-485 Modbus communication
Front panel : IP65
Rear panel : IP20
µ
µ
corrosive materials
E-mail : info@suran-elektronik.de
Internet : www.suran-elektronik.de
TX RX
AOUT
ENDA
DIGITAL POTENTIOMETER
must not be used.
1. / 3
english
SET
SET
EDP2041
EDP2041-E-22032019
