ENDA EDP 141 Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

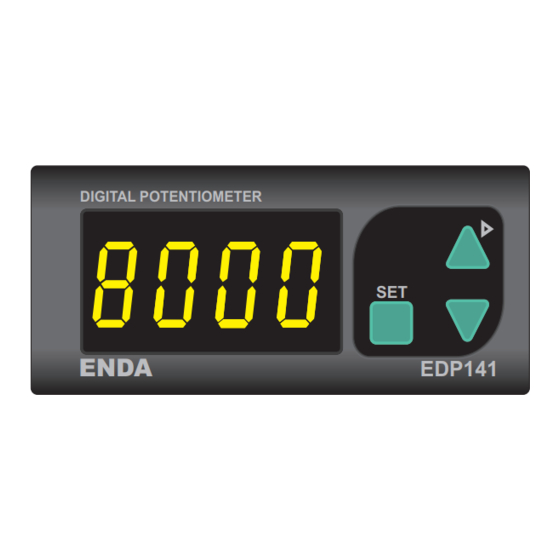

ENDA EDP 141 DIGITAL POTENTIOMETER
Thank you for choosing ENDA EDP 141 potentiometer.
* 34x77mm sized.
* 4 digits display.
* Easy to use by front panel keypad.
* Display scale can be adjusted between -1999 and 8000.
* Decimal point can be adjusted between 1. and 3. digits.
* 0-10V output with adjustable minimum and maximum values.
'Soft on'
* and
* Parameter access protection on 3 levels.
* Having CE mark according to European Norms.
Supply Voltage
230V AC +%10 -%20
24V AC %10
9-30V DC SMPS module
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
OUTPUT
0-10V output
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
'soft off'
properties can be selected.
Order Code
EDP141
EDP141-24AC
EDP141-24DC
0 ... +50 °C/-25 ... +70°C (with no icing)
80% up to 31 °C decreasing linearly 50% at 40
According to EN 60529
Max. 2000m
230V AC +10% -20%, 50/60Hz or 24V AC ±10% 50/60Hz or 9-30V DC SMPS module
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EN 61010-1: 2001 (pollution degree 2, overvoltage category II, measurement category I)
M aximum 10mA, d igitally adjusted
Resolution : 1/10000 V
Fluctuation : Maximum 30mV
Rise time from 0 to 10V is maximum 300ms
Suitable for flush-panel mounting according to DIN 43 700.
W77xH34xD70mm
Approx. 350g (after packing)
Self extinguishing plastics
34775 - ÜMRANÝYE/ÝSTANBUL-TÜRKÝYE
DIGITAL POTENTIOMETER
ENDA
°C .
Front panel : IP60
Rear panel : IP20
potentiometer output.
1/3
SET
EDP141
EDP141-E-05
