ENDA EI7412 User Manual

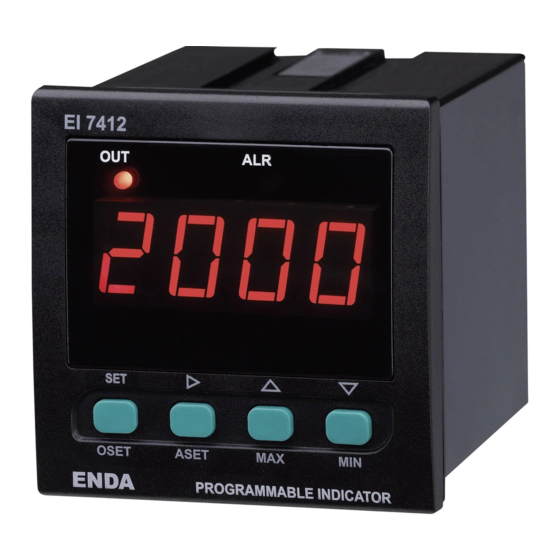

ENDA EI7412 PROGRAMMABLE INDICATOR WITH RELAY
Thank you for choosing ENDA EI7412 INDICATOR
* 72x72mm sized.
* 4 digits display.
* On-offcontrol.
* Relays for Out and Alarm control.
* Up and low limits of Set values can be configured.
* Decimal point can be adjusted between 1. and 3. digits.
* Display scale can be adjusted between -1999 and 4000.
* Measurement unit can be displayed.
* Selectable four different standart input types (0-20mA, 4-20mA, 0-1V, 0-10V).
* User can calibrate the device according to his/her own specified input type.
* Sampling time can be adjusted in four steps.
* Selectable control option below and above the set value.
* Selectable independent, deviation or band alarms.
* Maximum and minimum values are registered and can be hold on the display.
* Current and voltage calibration can be made.
* Selectable parameter access protection.
* CE marked according to European Norms.
Order code : EI7412-
1 - Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........9-30V DC / 7-24V AC

TECHNICAL SPECIFICATIONS

ENVIRONMENTAL CONDITIONS

Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.

ELECTRICAL CHARACTERISTICS

Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
Input type
0-1V DC voltage
0-10V DC voltage
0-20mA DC current
4-20mA DC current
In the current measurement mode input impedance is
should not be connected to the input terminals. Otherwise, the device will be broken down. To change the input type from
voltage to a current measurement mode while the device is operating, first, leave out the voltage inputs. Then, change
input type to one of the current measurement modes.

OUTPUTS

Auxilary power supply
Out
Alarm
Life expectancy for relay

CONTROL

Control type
Control algorithm
Hysteresis

HOUSING

Housing type
Dimentions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL-
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.
-
1 2
2 - Auxilary Supply OUT
AS24.....24V DC 50mA
AS12.....12V DC 50mA
AS08.....8V DC 50mA
AS05.....5V DC 50mA
None.......No auxilary supply out
0 ... +50 °C/-25 ... +70°C (with no icing)
80 % up to 31 °C decreasing linearly 50
According to EN 60529
Max. 2000m
230V AC +10 % -20 , 50/60Hz or 24V AC ±10 , 50/60Hz or optional 9-30V DC / 7-24V AC
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EN 61010-1: 2001 (pollution degree 2, overvoltage category II, measurement category I)
EI741A must not be used in location where measurement category is II, III or IV.
Measurement range Measurement accuracy
Min.
Max.
±0,5% (of full scale)
0V 1.1V
0V 14V ±0,5% (of full scale)
±0,5% (of full scale)
0mA 25mA
0mA 25mA ±0,5% (of full scale)
All auxilary power supplies supply maximum 50mA (Regulated and isolated)
Relay: 250V AC, 8A (for resistive load), NO; 1/2 HP 240V AC Cos = 0.4 (for inductive load)
Relay: 250V AC, 8A (for resistive load), NO; 1/2 HP 240V AC Cos = 0.4 (for inductive load)
Mechanical 30.000.000 operation; 100.000 operation at 250V AC, 8A resistive load.
Single set-point and alarm control
On-Off control
Adjustable between 1 ... 200
Suitable for flush-panel mounting according to DIN 43 700.
W72xH72xD97mm
Approx. 350g (after packaging)
Self extinguishing plastics.
.
% at 40 °C .
Front panel : IP65
Rear panel : IP20
% %
Input empedance
Approx. 11k (terminal voltage limits: min. = -2V, max. = 30V)
Approx. 11k
Approx. 5
Approx. 5
5 Therefore, in the current measurement mode, any voltage input
TURKEY
1/4
EI 7412
OUT
SET
OSET ASET
ENDA
PROGRAMMABLE INDICATOR
(terminal voltage limits: min. = -2V, max. = 30V)
(applicable terminal voltage is max. 50mA.)
(applicable terminal voltage is max. 50mA.)
ALR
MAX MIN
±10% SMPS
EI7412-E-02-R
