ENDA EDP2041 Quick Start Manual

Read this document carefully before using this device. The guarantee will be expired by
d a m a g e s i f y o u d o n ' t a t t e n d t o t h e d i r e c t i o n s i n t h e u s e r m a n u a l . A l s o w e d o n ' t
accept any compensations for personal injury, material damage or capital disadvantages.

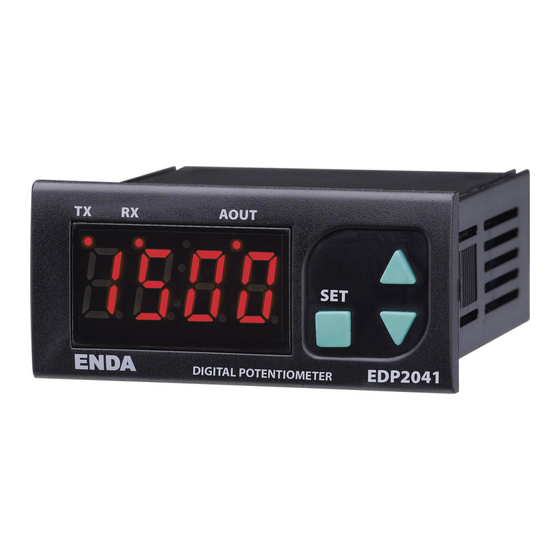

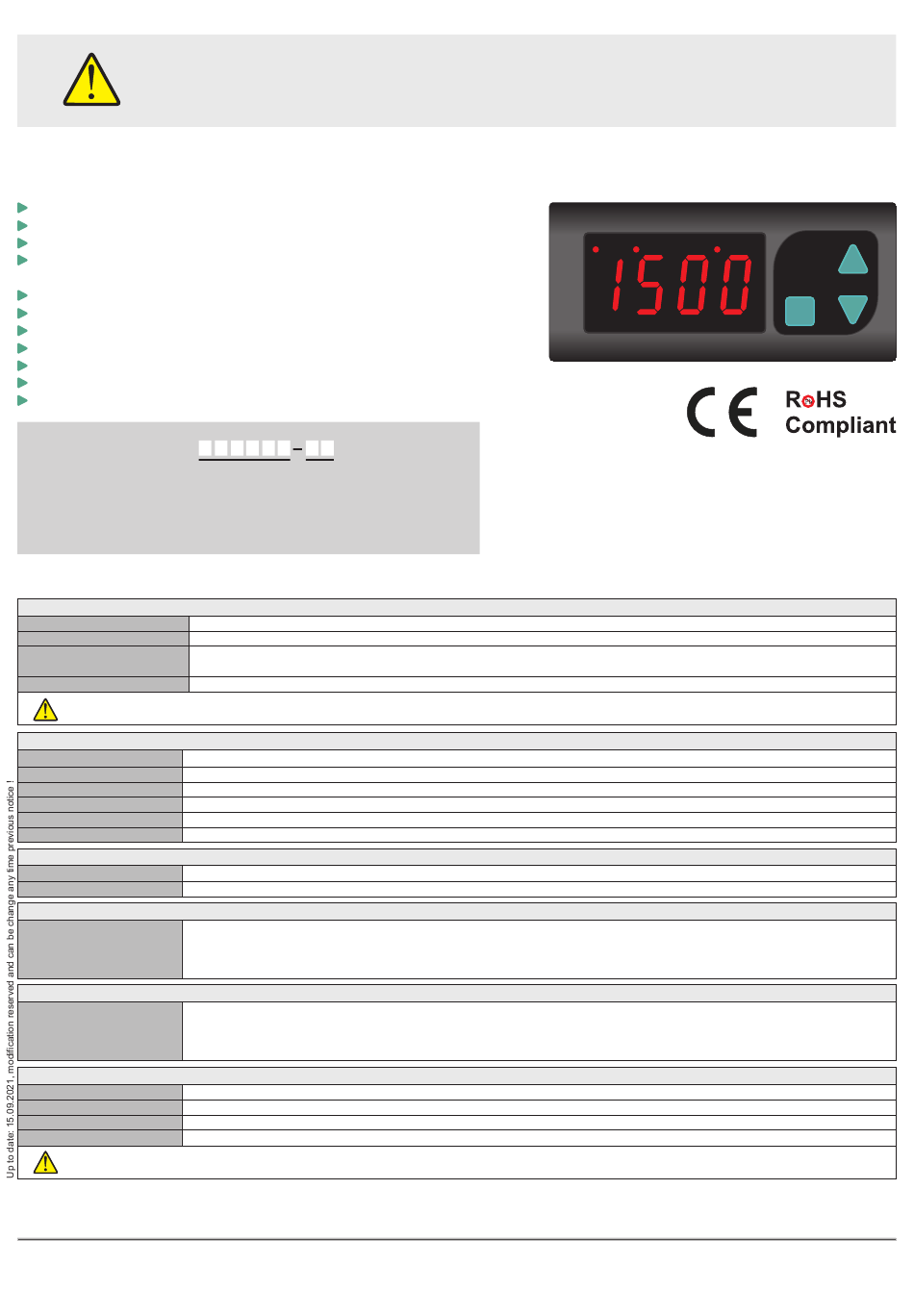

ENDA EDP2041 DIGITAL POTENTIOMETER
Thank you for choosing ENDA EDP2041 potentiometer.
35x77mm sized.
4 digits display.
Easy to use by front panel keypad.
Communication via RS-485 Modbus protocol or synchronous running between
two or more potentiomers (Optional).
Preset value can be adjusted from external buttons.
Display scale can be adjusted between -1999 and up to 9999.
Decimal point can be adjusted between 1. and 3. digits.
0-10V,0-20 mA a and 4-20mA output with adjustable minimum and maximum values.
'Soft on' and 'soft off' properties can be selected.
Parameter access protection on 3 levels.
CE marked according to European Norms.
Order Code : EDP2041 -
1- Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........10-30V DC
8-24V AC
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or liquids and
DO NOT USE the device in similar hazardous locations.
ELECTRICAL CHARACTERISTICS
Supply 230V AC +10% -20%, 50/60Hz or 24V AC ±10% 50/60Hz or optional 10-30V DC / 8-24V AC ±10% SMPS
Power consumption Max. 7VA
Wiring 2.5mm² Screw Connections
Date retention EEPROM (Min. 10 years)
EMC
EN 61326-1: 2013 (Performance criterion B for the EMC standards)
Safety requirements
EN 61010-1: 2012 (pollution degree 2, overvoltage category II, measurement category I)
INPUTS
Contact input or max. 24VDC logic input (active low)
Upwards input (UP)
Downwards input (DOWN)
Contact input or max. 24VDC logic input (active low)
OUTPUT
Digitally adjusted maximum 10mA, max. 10V potentiometer output.
Accuracy :%0.1
0-10V output
Fluctuation : Maximum 30mV
Rise time from 0 to 10V is maximum 300ms
OUTPUT
Digitally adjusted maximum 12V, max.20 mA potentiometer output.
Accuracy: %0.1 Resolution : 2µA
0-20mA output
Fluctuation : Maximum 60µA
Rise time from 0 to 20mA is maximum 300ms
HOUSING
Housing type Suitable for flush-panel mounting according to DIN 43 700.
Dimensions
W77xH35xD71mm
Weight Approx. 350g (after packing)
Self extinguishing plastics
Enclosure material
Avoid any liquid contact while the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
SURAN
Industrieelektronik
Dettinger Str. 9 / D-72160 Horb a.N
1 2
2- Modbus Selection
RS.........RS-485 Modbus Included
Blank.....N/A
0 ... +50 °C/-25 ... +70°C (without icing)
80% Relative humidity for temperatures up to 31 % °C, decreasing linearly to 50% at 40°C.
According to EN 60529 Front panel :
Rear panel :
Max. 2000m
Resolution : 1mV
Tel.: +49 (0)7451 / 625 617
Fax: +49 (0)7451 / 625 0650
TX
ENDA
IP65
IP20
E-mail : info@suran-elektronik.de
Internet : www.suran-elektronik.de
RX AOUT
SET
SET
DIGITAL POTENTIOMETER
EDP2041-EN-15092021
english
EDP2041
1. / 4
