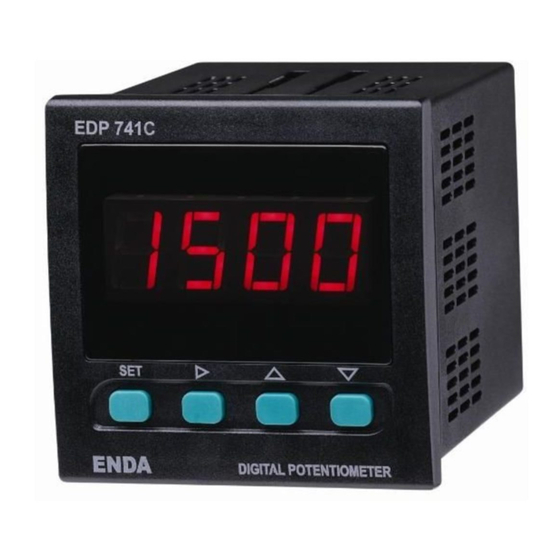

ENDA EDP 741C DIGITAL POTENTIOMETER
Thank you for choosing ENDA EDP 741C potentiometer.
* 72x72mm sized.
* 4 digits display.
* Easy to use by front panel keypad.
* Display scale can be adjusted between -1999 and 8000.
* Decimal point can be adjusted between 1. and 3. digits.
* 0-20mA output with adjustable minimum and maximum values.
'Soft on'
*
and
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminal.
* CE marked according to European Norms.
Order Code : EDP741C-

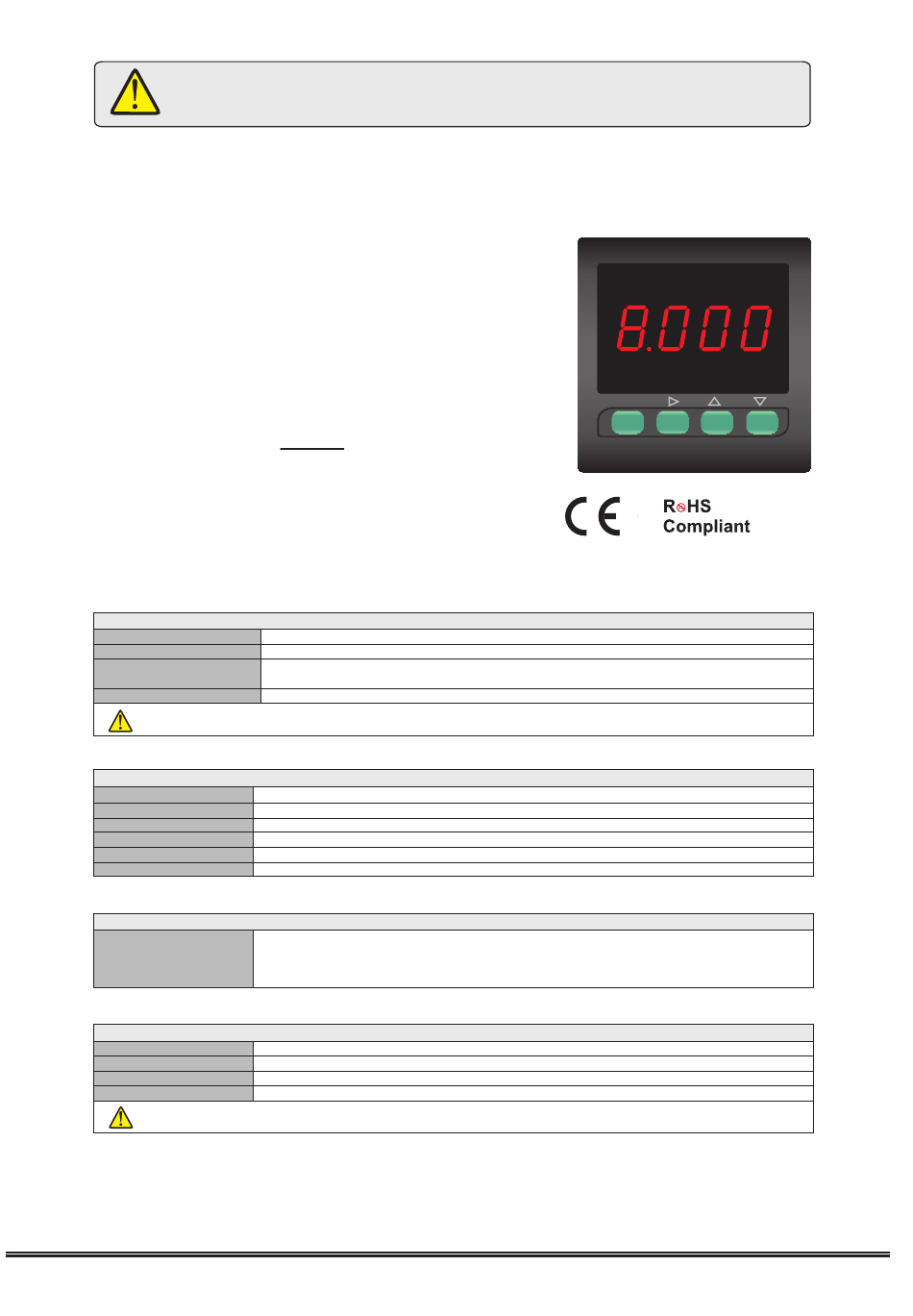

TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
OUTPUT
0-20mA output
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Yukarı Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANİYE/İSTANBUL-TÜRKİYE
Tel : +90 216 499 46 64 Pbx.
Fax : +90 216 365 74 01
url : www.enda.com.tr
Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.
'soft off'
properties can be selected.
1
Output Type
0-20mA
Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........9-30V DC / 7-24V AC
0 ... +50 °C/-25 ... +70°C (with no icing)
80
%
up to 31
°C
decreasing linearly 50
According to EN 60529
Max. 2000m
230V AC +10% -20%, 50/60Hz or 24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 2006
EN 61010-1: 2010 (pollution degree 2, overvoltage category II, measurement category I)
M
aximum 20mA, d
Resolution : 2µA
Fluctuation : Maximum 0,1mA
Rise time from 0 to 20mA is maximum 300ms
Suitable for flush-panel mounting according to DIN 43 700.
W72xH72xD97mm
Approx. 350g (after packing)
Self extinguishing plastics
%
at 40
°C
.
Front panel :
IP65
Rear panel :
IP20
igitally adjusted
potentiometer output.
1/3
EDP 741
SET
ENDA
DIGITAL POTENTIOMETER
EDP741C-E-03-R
