ENDA ETS762 Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

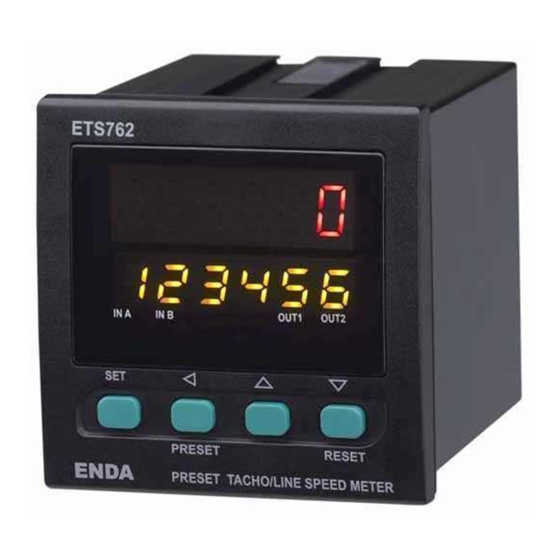

ENDA ETS762 TACHO LINE/SPEED METER
Thank you for choosing ENDA ETS762 TACHOMETER.
* 72x72mm sized.
* 2x6 digits display.
* Easy to use by front panel keypad.
* On and Off times of the input pulses can be selected.
* Sensor type can be selected as PNP or NPN.
* Sampling time can be adjusted between 0.2s and 16.0s.
* Selectable functional reset.
* Double set-points control is made by 2 relays outputs.
* Output can be energized while process value is greater or lower than the
preset value.
* Time delay can be included to the output operation.
* Output can be energized continuously or just for a time interval of 0.1
to 999.9 seconds.
* Decimal point can be adjusted between 1. and 5. digits.
* Prescaler factor can be adjusted between 0.00001 and 999.999 for calibration.
* Display configuration can be adjusted.
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminals.
* CE marked according to European Norms.
Order Code : ETS762-
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
INPUTS
Counting inputs
(INA, INB)
Minimum On and Off times
for pulses
Sampling time
RESET and HOLD inputs
OUTPUTS
Control output (OUT1)
Control output (OUT2)
Auxiliary power supply
Accuracy
Life expectancy for relays
Note : Relay and S.S.OUT outputs are in synchronization . When OUT1 relay is energized S.S. OUT1 transistor goes into saturation.
Similarly, when OUT2 relay is energized S.S. OUT2 transistor goes into saturation.
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
1
Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........9-30V DC / 7-24V AC
0 ... +50 °C/-25 ... +70°C (with no icing)
80 % up to 31 °C decreasing linearly 50
According to EN 60529
Max. 2000m
230V AC +10% -20%, 50/60Hz or 24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EN 61010-1: 2001 (pollution degree 2, overvoltage category II)
3 channels (5V to 30V pulses)
40ms, 20ms, 10ms, 1ms, 0.5ms, 0.1ms, 50
Adjustable between 0.2s and 16.0s.
PNP: 5V to 30V pulse with adjustable pulse time between 2ms and 50ms.
NPN: GND terminal is connected to the RESET IN or HOLD IN terminal.
Relay : 250V AC, 2A (for resistive load), NO+NC
Open collector output (S.S. OUT1): Max. 30V DC, 100mA.
Relay : 250V AC, 2A (for resistive load), NO+NC
Open collector output (S.S. OUT2): Max. 30V DC, 100mA.
12V DC, Max. 50mA (without regulation)
±0.1%
Mechanical 30.000.000 operation; Electrical 300.000 operation
Suitable for flush-panel mounting according to DIN 43 700.
W72xH72xD97mm
Approx. 405g (after packing)
Self extinguishing plastics
ETS762
SET
ENDA
% at 40 °C .
Front panel : IP65
Rear panel : IP20
s (selectable by programming)
.
1/5
IN A IN B OUT1
OUT2
PRESET RESET
PRESET TACHO/LINE SPEED METER
ETS762-E-05-R
