IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
Hardware List
Hex Wrench
1 pc.
The tile top contains natural stone materials with naturally occurring fissures and
cavities. A sealer has been applied to reduce the absorption of liquids. Even with
sealer applied, liquids can still absorb into the surface causing permanent stains
and can damage the top by cracking the tiles if the absorbed liquid freezes.
• Never allow liquids to remain on the top.
• Apply a stone sealer to the top annually.
• Store inside in freezing weather.
Tool(s) required for assembly: Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05602 0030

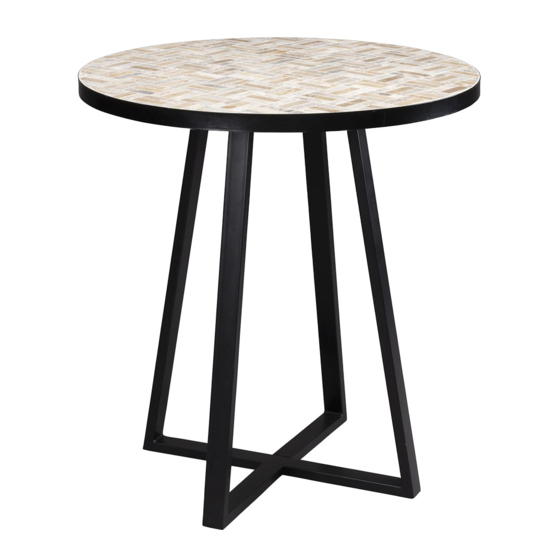

Bistro Table
M8x15
Head Cap Bolt
Small Hex Wrench
8 pcs. (+1 extra)
1 pc.
B.
Frame
1 pc.
M8
M6
Flat Washer
Flat Washer (small)
8 pcs. (+1 extra)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Frame
2 pcs.
Wing Nut
4 pcs. (+1 extra)
Advertisement
Table of Contents
Related Manuals for Homestyles 20 05602 0030
Summary of Contents for Homestyles 20 05602 0030
- Page 1 • Never allow liquids to remain on the top. • Apply a stone sealer to the top annually. • Store inside in freezing weather. Tool(s) required for assembly: Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future. STEP 1 Attach Frames (C) to Frame (B) with Flat Washers and Head Cap Bolts, tightening bolts only halfway.
- Page 3 Assembly Instructions 3/3 STEP 3 Turn table over to its upright position. Level table by adjusting the adjustable levelers on bottom of table. (See Figure 3) Figure 3...
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
