IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
D.
Shelf
1 pc.
E.
Base
1 pc.
F.
Shelf
1 pc.
Hardware List
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05663 0095

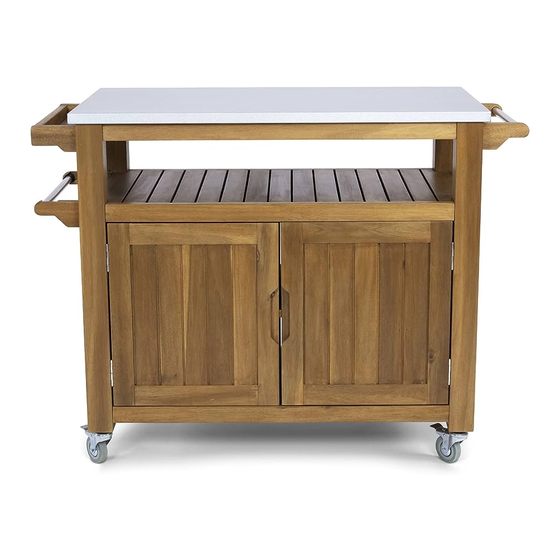

Barbecue Cart
Hex Wrench
Wrench
1 pc.
1 pc.
Pin
4 pcs. (+1 extra)
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
G.
H.
Door
Door
2 pcs.
2 pcs.
Magnet
4 pcs.
M6x16
Flat Head Screw
24 pcs. (+1 extra)
888-680-7460, 877-831-0319
I.
Handle
1 pc.
M.
Handle
1 pc.
K.
Side Bar
1 pc.
M6x16
M6x60
Wood Screw
Head Cap Bolt
8 pcs. (+1 extra)
18 pcs. (+1 extra)
Dowel
Hook
12 pcs. (+1 extra)
4 pcs.
J.
Handle
1 pc.
L.
Rack
1 pc.
N.
Handle
1 pc.
O.
Side Bar
1 pc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05663 0095
Summary of Contents for Homestyles 20 05663 0095
- Page 1 Small Hex Wrench Flat Head Screw Dowel Hook 4 pcs. 1 pc. 4 pcs. (+1 extra) 24 pcs. (+1 extra) 12 pcs. (+1 extra) 4 pcs. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all bolts until each part is properly assembled. Ÿ Keep Hex Wrench and Wrench as bolts and casters may need to be tightened in the future. Wood Screw Magnet STEP 1...
- Page 3 Assembly Instructions 3/6 Dowel Head Cap Bolt STEP 3 Attach Side Panel (C) to unit with Dowels and Head Cap Bolts.
- Page 4 Assembly Instructions 4/6 Non-Locking Caster Locking Caster STEP 4 Turn unit upside down and place on a soft cloth. Insert Casters into pre-drilled holes in unit, then tighten with Wrench. (See Figure 4) Figure 4...
- Page 5 Assembly Instructions 5/6 Flat Head Screw STEP 5 Turn unit over to its upright position. Attach Doors (G) and (H) to unit with Flat Head Screws. (See Figure 5) Figure 5 Insert Pins into side panels at desired level. (See Figure 6) Place Shelf (F) into position.
- Page 6 Assembly Instructions 6/6 Head Cap Bolt Hook STEP 6 Attach Handle (I) to unit with Head Cap Bolt. Place Side Bar (K) into position, then attach Handle (J) to unit with Head Cap Bolt. Attach Rack (L) to unit with Head Cap Bolts. Attach Handles (M) and (N) to unit with Head Cap Bolts.
- Page 7 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
