IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

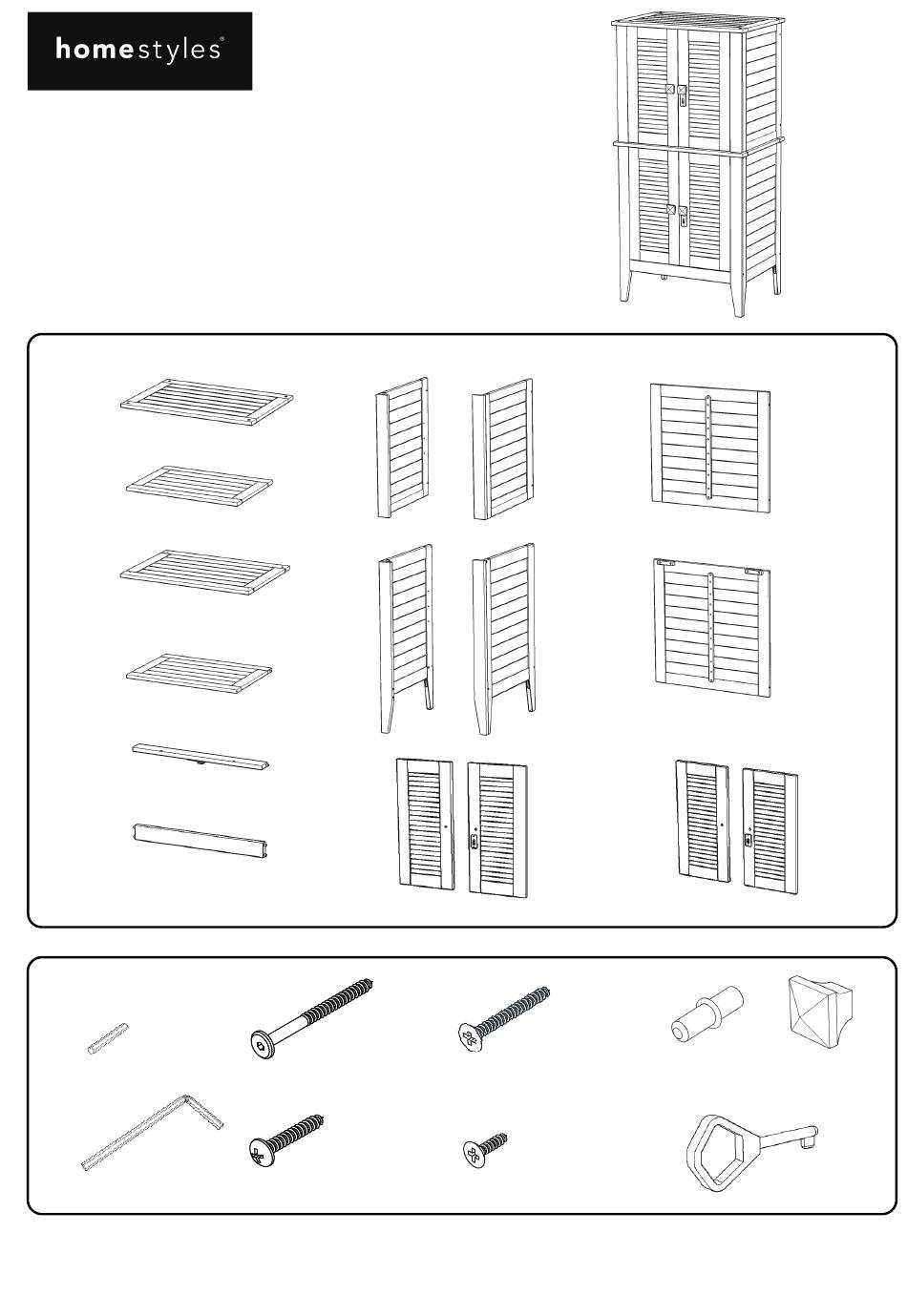

Part List
A.
Top
1 pc.
B.
Shelf
2 pcs.
C.
Middle Panel
1 pc.
D.
Base
1 pc.
E.
Stretcher
1 pc.
F.
Stretcher
1 pc.
Hardware List
Small Hex Wrench
1 pc.
Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05664 0027
Cabinet
G.
Side Panel
1 pc.
J.
Side Panel
1 pc.
M.
Door
1 pc.
M7x60
Assembly Screw
20 pcs. (+1 extra)
M8x32
Wood Screw
for Knob
4 pcs. (+1 extra)
H.
Side Panel
1 pc.
K.
Side Panel
1 pc.
N.
O.
Door
Door
1 pc.
1 pc.
M6x25
Wood Screw
Adjustable Pin
4 pcs. (+1 extra)
8 pcs. (+1 extra)
M6x19
Wood Screw
for Hinge
24 pcs. (+1 extra)
888-680-7460, 877-831-0319
I.
Back Panel
1 pc.
L.
Back Panel
1 pc.
P.
Door
1 pc.
Knob
4 pcs.
Key
2 pcs.
