IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Hex Wrench
1 pc.
Tool(s) required for assembly: Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05617 0103

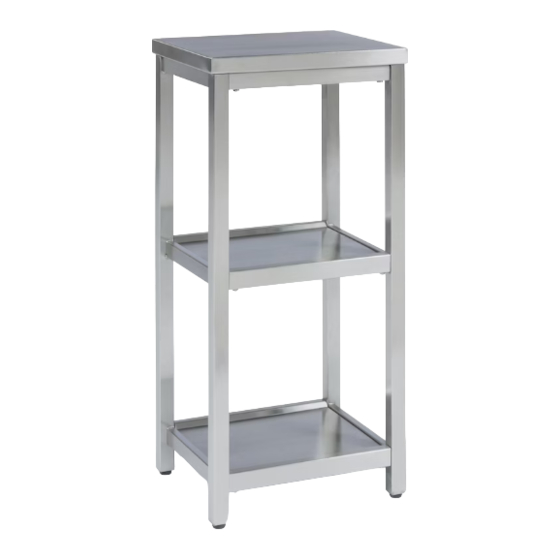

Three Tier Shelf
A.
Top
1 pc.
C.
Shelf
1 pc.
D.
Base
1 pc.
Small Hex Wrench
1 pc.
M6x10
Head Cap Bolt
20 pcs. (+1 extra)
888-680-7460, 877-831-0319
B.
Side Frame
2 pcs.
Spring Washer
20 pcs. (+1 extra)
Advertisement
Table of Contents
Related Manuals for Homestyles 20 05617 0103
Summary of Contents for Homestyles 20 05617 0103
- Page 1 1 pc. Hardware List M6x10 Hex Wrench Small Hex Wrench Spring Washer Head Cap Bolt 1 pc. 1 pc. 20 pcs. (+1 extra) 20 pcs. (+1 extra) Tool(s) required for assembly: Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/3 STEP 3 Place Top (A) upside down on a soft cloth. Attach unit to Top (A) with Spring Washers and Head Cap Bolts, tightening bolts only halfway. (See Figure 2) Tighten all Head Cap Bolts used in all steps. Figure 2 Spring Washer Head Cap Bolt...
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
