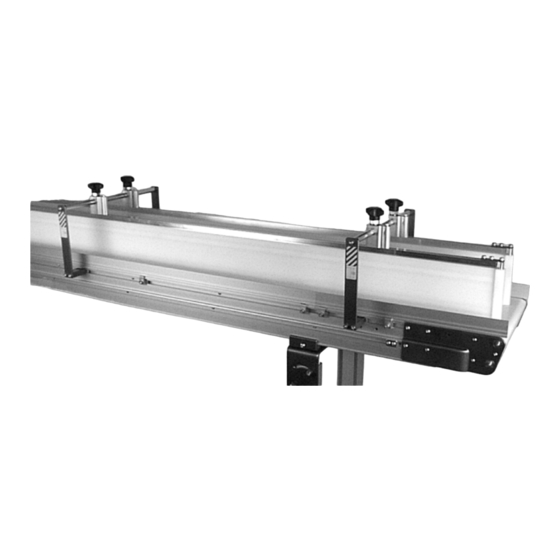

  • Page 1 Set-up, Operation & Maintenance Manual Adjustable Lane Guiding for 2100 Series, 3100 Series & 6100 Series Flat Belt Conveyors Table of Contents Warnings – General Safety ....
  • Page 2 Dorner’s Limited Warranty applies. regarding discrepancies. D Inspect packages for shipping damage. Contact carrier Dorner reserves the right to make changes at any time regarding damage. without notice or obligation. Adjustable Lane Guiding for 2100 ,3100 & 6100 Series Conveyors Set-up, Operation & Maintenance Manual 851-336 Rev.
  • Page 3 * See “Ordering and Specifications” Catalog for details. Specifications: D Available in standard 1-ft (305 mm) increments D 0.25¨ (6 mm) minimum lane width Figure 3 Adjustable Lane Guiding for 2100 ,3100 & 6100 Series Conveyors Set-up, Operation & Maintenance Manual Dorner Mfg. Corp. 851-336 Rev. A...
  • Page 4 NOTE: Quantities vary depending on accessory length. Figure 6 Repeat step 3 for other side of conveyor. Figure 4 Adjustable Lane Guiding for 2100 ,3100 & 6100 Series Conveyors Set-up, Operation & Maintenance Manual 851-336 Rev. A Dorner Mfg. Corp.
  • Page 5 PERSONAL INJURY. Ç Exposed moving parts can cause severe injury. DO NOT MAKE GUIDE ADJUSTMENTS WITH CONVEYOR RUNNING. Figure 9 Adjustable Lane Guiding for 2100 ,3100 & 6100 Series Conveyors Set-up, Operation & Maintenance Manual Dorner Mfg. Corp. 851-336 Rev. A...
  • Page 6 (J & K) to 146 in-lb (16 Nm). Repeat steps 3 through 7 for additonal lane support(s). Figure 12 Attach lane guide. See next section. Adjustable Lane Guiding for 2100 ,3100 & 6100 Series Conveyors Set-up, Operation & Maintenance Manual 851-336 Rev. A Dorner Mfg. Corp.
  • Page 7 D Torque wrench belt. Replace and re-secure lane(s). Tighten screws (K of Figure 14) to 146 in-lb (16 Nm). Hand-tighten knob(s). Adjustable Lane Guiding for 2100 ,3100 & 6100 Series Conveyors Set-up, Operation & Maintenance Manual Dorner Mfg. Corp. 851-336 Rev. A...
  • Page 8 Authorization Number to reference. There will be a 15% restocking charge on all new items returned for credit where Dorner was not at fault. These will not be accepted after 60 days from original invoice date. The restocking charge covers inspection, cleaning, disassembly, and reissuing to inventory.
