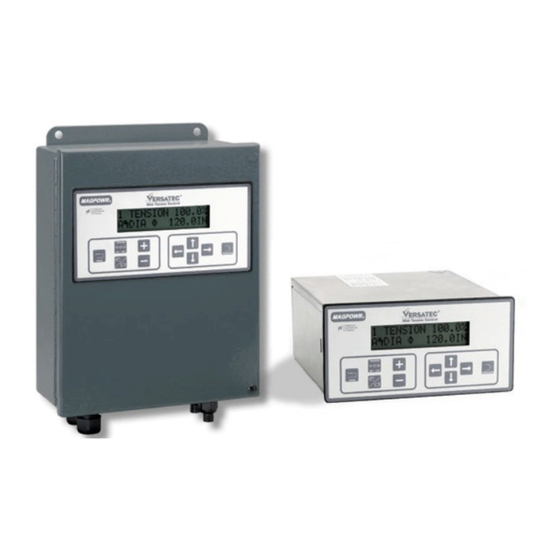

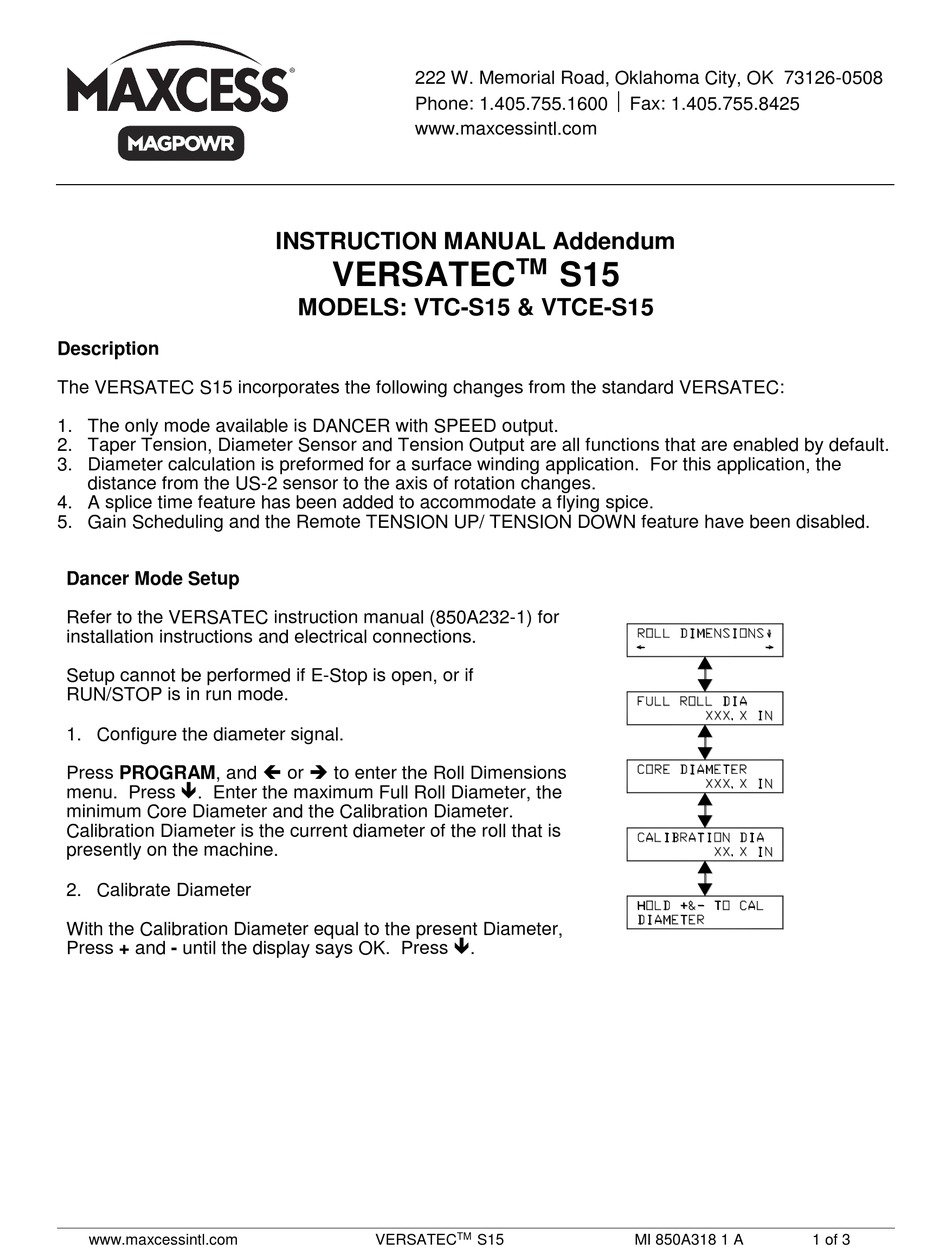

Maxcess VERSATEC S15 Instruction Manual Addendum

Description

The VERSATEC S15 incorporates the following changes from the standard VERSATEC:
1. The only mode available is DANCER with SPEED output.
2. Taper Tension, Diameter Sensor and Tension Output are all functions that are enabled by default.
3. Diameter calculation is preformed for a surface winding application. For this application, the
distance from the US-2 sensor to the axis of rotation changes.
4. A splice time feature has been added to accommodate a flying spice.
5. Gain Scheduling and the Remote TENSION UP/ TENSION DOWN feature have been disabled.

Dancer Mode Setup

Refer to the VERSATEC instruction manual (850A232-1) for
installation instructions and electrical connections.
Setup cannot be performed if E-Stop is open, or if
RUN/STOP is in run mode.
1. Configure the diameter signal.
Press PROGRAM, and  or  to enter the Roll Dimensions
menu. Press . Enter the maximum Full Roll Diameter, the
minimum Core Diameter and the Calibration Diameter.
Calibration Diameter is the current diameter of the roll that is
presently on the machine.

2. Calibrate Diameter

With the Calibration Diameter equal to the present Diameter,
Press + and - until the display says OK. Press .
www.maxcessintl.com
222 W. Memorial Road, Oklahoma City, OK 73126-0508
Phone: 1.405.755.1600  Fax: 1.405.755.8425
www.maxcessintl.com
INSTRUCTION MANUAL Addendum
VERSATEC
MODELS: VTC-S15 & VTCE-S15
VERSATEC
TM
S15
TM
S15 MI 850A318 1 A 1 of 3
