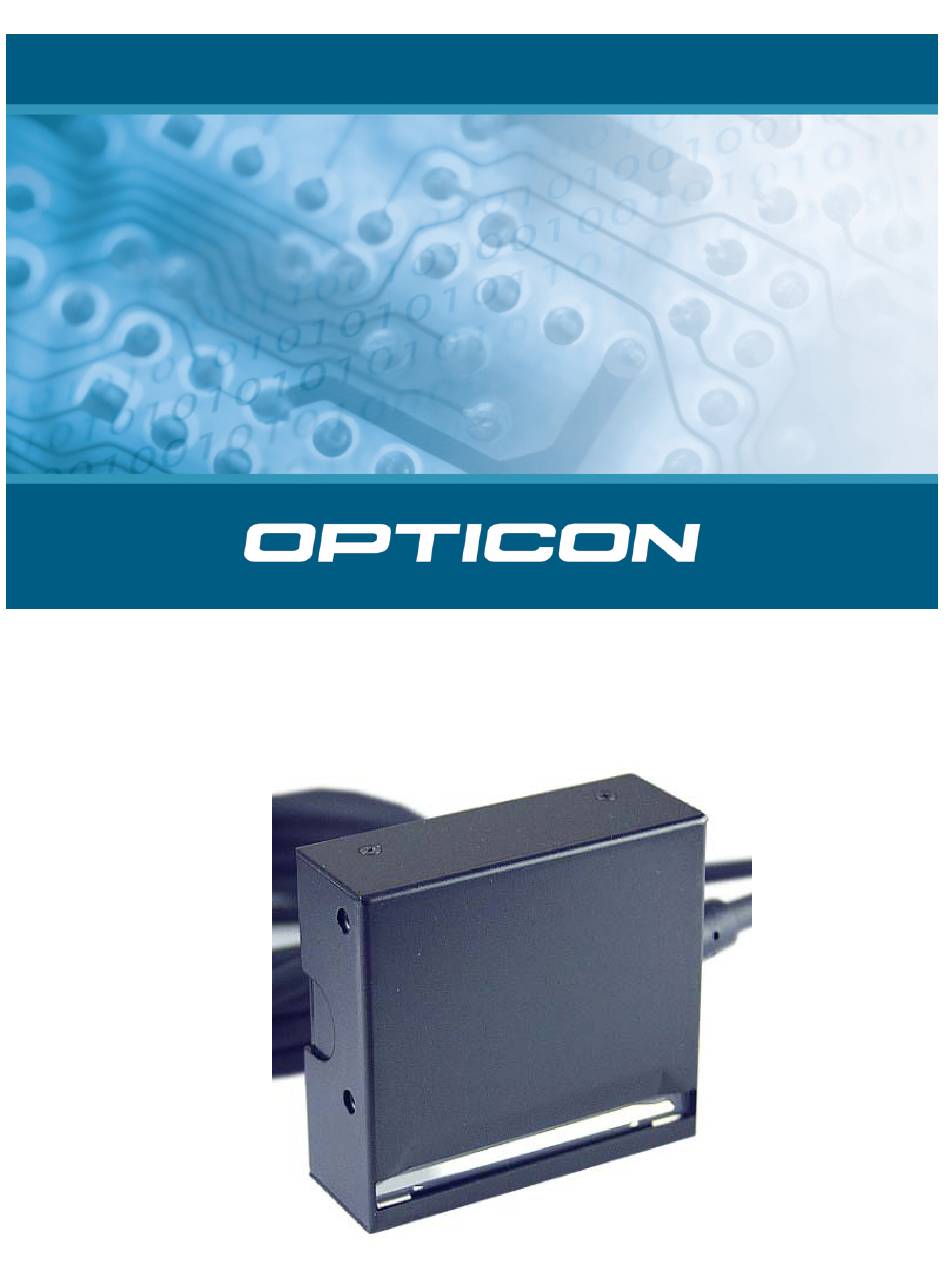

- Page 1 NFT 2200 Fixed-position CCD Scanner Specifications Manual...
- Page 2 Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.
-
Page 3: Table Of Contents
Opticon NFT 2200 Specifications Manual Contents 1. Abstract............................ 6 2. Overview ..........................6 3. Physical Features........................7 3.1. Dimensions ........................7 3.2. Weight..........................7 3.3. Installation........................7 4. Environmental Specifications ....................8 4.1. Operating Temperature and Humidity................8 4.2. Storage Temperature and Humidity................. 8 4.3. - Page 4 Opticon NFT 2200 Specifications Manual 8.1.5. Character Format........................18 8.1.6. Communication Format......................18 8.1.7. Handshaking .......................... 19 8.2. USB Interface Specifications ..................24 8.2.1. Settings ..........................24 8.2.2. Connector..........................24 8.2.3. Interface Circuit........................24 8.3. DOS/V Wedge Interface Specification ................25 8.3.1.
- Page 5 Opticon NFT 2200 Specifications Manual 16. Safety ............................. 35 16.1. Shock ..........................35 16.2. Temperature Conditions ....................35 16.3. Foreign Materials ......................35 16.4. Other ..........................35 17. Mechanical Drawing......................36 Table of Figures Figure 1: Ambient light immunity ....................8 Figure 2: Focal plane.........................
-
Page 6: Abstract
NFT 2200 Specifications Manual 1. Abstract This manual provides specifications for the NFT 2200 fixed position CCD scanner with a built-in decoder, which decodes colored or black barcodes on a white or colored background. 2. Overview The NFT 2200 fixed position scanners are a miniature, 200 scan per second CCD barcode reader designed to be easily integrated into host equipment. -
Page 7: Physical Features
Opticon NFT 2200 Specifications Manual 3. Physical Features 3.1. Dimensions W 55.0 x D 52.0 x H 20.0 mm 3.2. Weight 110 g (maximum, including cable) 3.3. Installation Fixing screws: two M3 screws (when installing on one side only). •... -
Page 8: Environmental Specifications
Opticon NFT 2200 Specifications Manual 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: 0 to +45° C Humidity: 20 to 85% RH 4.2. Storage Temperature and Humidity Temperature: -10 to +60° C Humidity: 20 to 90% RH 4.3. Ambient Light Immunity... -
Page 9: Electrical Specifications
Opticon NFT 2200 Specifications Manual 5. Electrical Specifications 5.1. Electrical Characteristics Parameter Symbol Unit Remarks Power supply voltage Operating current 1 When not scanning Operating current 2 When scanning, buzzer is on or LED is blinking for “Good Read” Stand-by current... -
Page 10: Technical Specifications
Opticon NFT 2200 Specifications Manual 7. Technical Specifications The conditions for technical specifications are as follows, unless otherwise specified in each section. Conditions Ambient temperature and humidity Room temperature and room humidity Ambient light 500 to 1,000 lx Background Barcode = black... -
Page 11: Focal Plane
Opticon NFT 2200 Specifications Manual Focal Plane 7.3.1. The optical performance of the scanner is the highest when the focal plane is located 31.4 mm from the edge of the scanner. Therefore, set objective barcodes at about 31.4 mm from the scanner. -
Page 12: Depth Of Field
Opticon NFT 2200 Specifications Manual Depth of Field 7.3.3. -5mm ≤ X ≤ 6mm from focal plane Figure 3: Scan width, low PCS, high resolution, scan area Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance 0 mm from the focal plane of the scanner Label PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm... -
Page 13: Light Axis
Opticon NFT 2200 Specifications Manual Light Axis 7.3.4. The light axis appears at a point 2 mm above or below the 77-degree inclined angle. The location of the light axis may vary in the said range (1 ±2 mm) for each unit. -
Page 14: Skew Angle
Opticon NFT 2200 Specifications Manual Skew Angle 7.4.2. Skew angle: α = ±30° Dead zone: β = ±10° Figure 6: Skew angle In the skew angle drawing, the position of the 77° beam axis is shown as α=0°. Conditions Barcode Sample: OPTOELECTRONICS Test Sample... -
Page 15: Curvature
Opticon NFT 2200 Specifications Manual 7.5. Curvature With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥30 mm. With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 mm. Figure 8: Curvature Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance 0 mm from the focal plane of the scanner Label PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm... -
Page 16: Scanning Barcodes On Moving Items
Opticon NFT 2200 Specifications Manual 7.6. Scanning Barcodes on Moving Items Scanning barcodes on moving objects requires that the speed of the barcode be adjusted to optimize the scanner’s reading performance. The orientation of the barcode is another consideration and plays an important part in determining the speed. -
Page 17: Interface Specifications
Opticon NFT 2200 Specifications Manual 8. Interface Specifications 8.1. RS-232C Interface Spec Settings and Communication 8.1.1. Reading the menu barcodes in section 10.1 can set the RS-232C interface default. Item [U2] setting Baud rate 9600 bps Start/stop bits 1 bit... -
Page 18: Interface Circuit
Opticon NFT 2200 Specifications Manual Interface Circuit 8.1.4. Figure 11: Interface circuit Character Format 8.1.5. Figure 12:Character format (same for sending and receiving) Communication Format 8.1.6. Figure 13: Communication format... -
Page 19: Handshaking
Opticon NFT 2200 Specifications Manual Handshaking 8.1.7. Select handshaking options using the menu or command listed below. Handshaking Menu/Command Uncontrolled (No handshake) BUSY/READY MODEM ACK/NAK ACK/NAK NO RESPONSE a) No Handshaking The scanner attempts the communication regardless of the state of the host computer. -
Page 20: Figure 16: Cannot Receive Command
Opticon NFT 2200 Specifications Manual The scanner stays ON (is able to receive data) except during certain parts of the process, such as receiving data (buzzer command execution), transmitting data, and menu processing. The scanner checks the CTS line before transmitting data. When it is ON, the scanner transmits data. When it is OFF, the scanner waits for it to turn ON within a set time. -
Page 21: Figure 18: Modem Transmit Data
Opticon NFT 2200 Specifications Manual c) MODEM The scanner turns RTS line ON before transmitting data. Other processes are the same as BUSY/READY. Figure 18: Modem transmit data d) ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: •... -
Page 22: Figure 19: Ack/Nak
Opticon NFT 2200 Specifications Manual ACK/NAK timeout can be set as follows using the menu or commands. • I4: Indefinitely (default) • I5: 100 ms • I6: 500 ms Figure 19: ACK/NAK... -
Page 23: Figure 20: Ack/Nak-No Response
Opticon NFT 2200 Specifications Manual e) ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK. -
Page 24: Usb Interface Specifications
Specifications Manual 8.2. USB Interface Specifications Settings 8.2.1. Reading the menu barcodes in section 10.1 can set the USB Interface default. The NFT 2200 USB model uses a low-speed USB interface. Connector 8.2.2. Figure 21: USB connector Contact Number Signal Name... -
Page 25: Dos/V Wedge Interface Specification
Opticon NFT 2200 Specifications Manual 8.3. DOS/V Wedge Interface Specification Settings 8.3.1. With a desktop PC (when using the external keyboard) or with a notebook PC (when not using the external keyboard), reading the menu barcodes in section 10.1 can set the DOS/V Wedge interface default. -
Page 26: Figure 24: Dos/V Keyboard Connector
Opticon NFT 2200 Specifications Manual b) DOS/V Keyboard Connector Figure 24: DOS/V keyboard connector Contact Number Signal Name KEY DATA OPEN KEY CLOCK OPEN... -
Page 27: Cable And Connector
Opticon NFT 2200 Specifications Manual 9. Cable and Connector 9.1. RS-232C Cable (Basic specification) Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 2000 +100 mm Color: Black UL Standard: UL AWM 2835 VW-1 Figure 25: RS-232C cable 9.2. USB Cable (Basic specification) -
Page 28: Wedge Cable
Opticon NFT 2200 Specifications Manual 9.3. Wedge Cable (Basic specification) Type: Straight Diameter: φ3.8 ±0.5 mm Length: 2000 +100 mm Color: Black UL Standard: UL AWM 2835 VW1 Figure 27: Wedge cable... -
Page 29: Default Settings
Opticon NFT 2200 Specifications Manual 10. Default Settings 10.1. Set Interface Default Scanners are set to the default settings suitable for each interface before being shipped from the factory. RS-232C Functions Menu labels Menu codes _ZZ_ _U2_ RS-232C _ZZ_ USB-HID... -
Page 30: Default Settings 1: Readable Codes
Opticon NFT 2200 Specifications Manual 10.2. Default Settings 1: Readable Codes Symbology Read Transmit Code Transmit CD Calculate CD Length UPC-A UPC-A Add-on UPC-E UPC-E Add-on EAN-13 EAN-13 Add-on EAN-8 EAN-8 Add-on Code 39 Code 93 — Code 128 —... -
Page 31: Default Settings 2: Read Options, Trigger, Buzzer
Opticon NFT 2200 Specifications Manual 10.3. Default Settings 2: Read Options, Trigger, Buzzer Item Default Setting Setting the number of characters Fixed length OFF all codes (except for the first digit of Industrial2of5, NW-7 or Code 39 and first 2 digits of Interleaved2of5) -
Page 32: Packaging Specifications
12. Packaging Specifications 12.1. Individual Packaging Specification Put the NFT 2200 in a protective foam bag and place it in a single packing box. Size of the package (after assembly: 245 (W) x 115 (D) x 40 (H) mm 12.2. Collective Packaging Specification Put 50 individually packaged NFT 2200s in a collective packaging box. -
Page 33: Durability
Opticon NFT 2200 Specifications Manual 13. Durability 13.1. Electrical Noise No malfunction occurred when sinusoidal electrical noise (10 Hz–100 kHz, < 0.1Vpp) was added to a power supply line. Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS: Resolution: 0.33 mm Symbology: Distance: 31.4 mm... -
Page 34: Reliability
Opticon NFT 2200 Specifications Manual 14. Reliability MTBF (Mean Time Between Failures) of this product is 300,000 hours (calculated value). LED reliability is as follows: • According to the guarantee of the LEDs used for this scanner manufacturer, the power-down occurrence ratio after lighting the LED for over 1,000 hours shall be lower than 50% of the time. -
Page 35: Safety
Opticon NFT 2200 Specifications Manual 16. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 16.1. Shock • Do not throw or drop the scanner. • Do not place heavy objects on the cables. -
Page 36: Mechanical Drawing
Opticon NFT 2200 Specifications Manual 17. Mechanical Drawing All dimensions in mm [inches] Figure 30: Screw holes—4 M3 (2 holes each on 2 sides)
