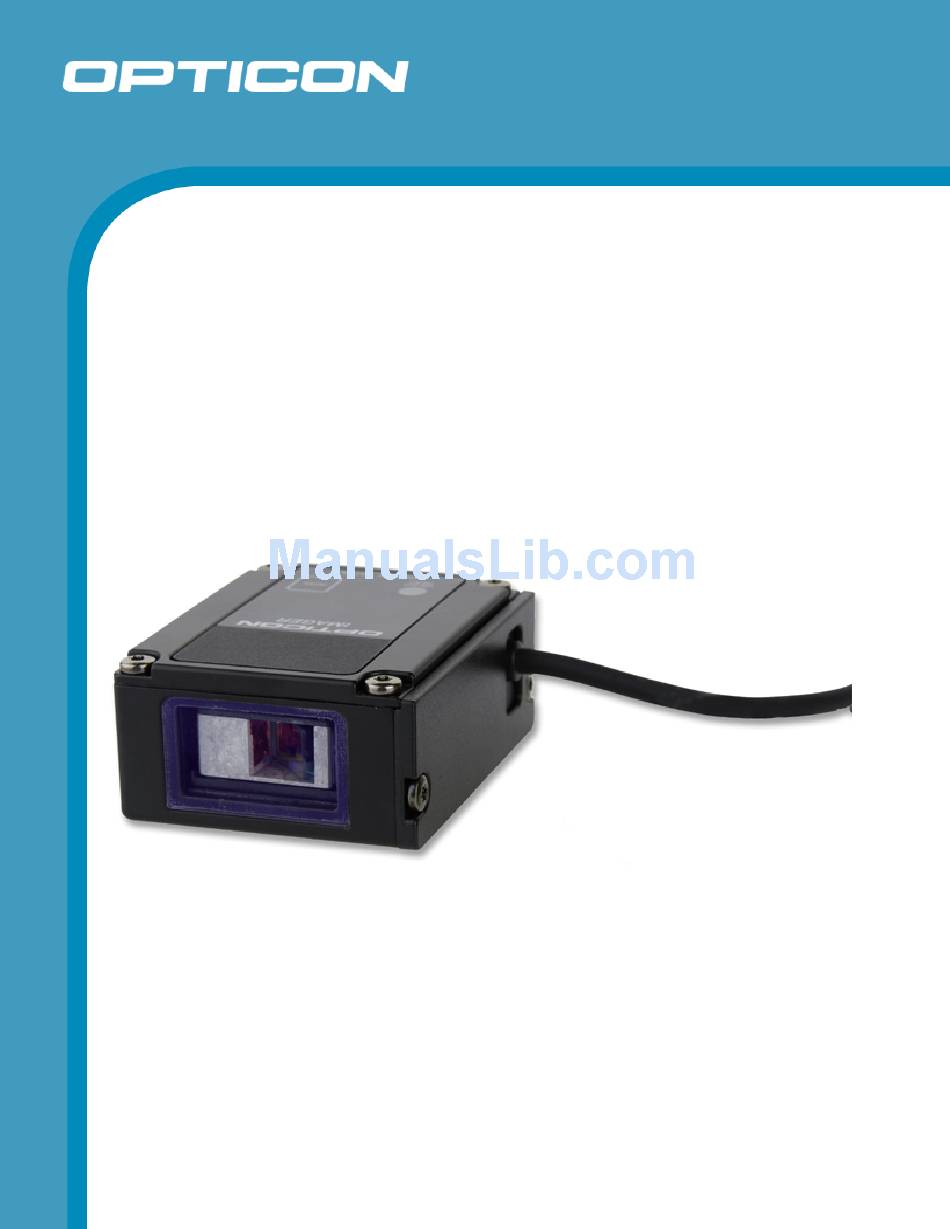

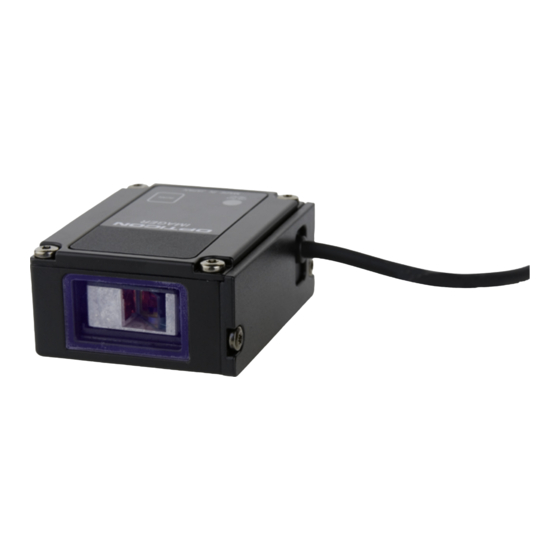

- Page 1 Fixed-position Laser Barcode Scanner NLV 2001 The NLV 2001 is a fixed-position laser barcode scanner that uses a short-wavelength red laser Specifications Manual beam.
-
Page 2: Document History
Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. -
Page 3: Table Of Contents
Opticon NLV 2001 Specifications Manual Contents 1. Abstract ............................6 2. Overview............................6 3. Physical Features ........................7 3.1. Dimensions ......................... 7 3.2. Weight ..........................7 4. Environmental Specifications ....................7 4.1. Ambient Light Immunity....................... 7 5. Electrical Specifications ......................8 5.1. - Page 4 Opticon NLV 2001 Specifications Manual 8.2.2. Interface Circuit........................22 8.3. DOS/V Wedge Interface Specification ................22 9. Cable and Connector ....................... 23 9.1. RS-232C Cable ......................... 23 9.1.1. Standard Specification ......................23 9.1.2. DB9 Connector ........................23 9.1.3. Pin Assignment ........................24 9.2. USB Cable ........................25 9.2.1.
- Page 5 Figure 1: Depth of field and resolution (NLV 2001 I-Type)............10 Figure 2: Pitch (NLV 2001 I-Type) ....................12 Figure 3: Skew angle and dead zone (NLV 2001 I-Type) ............13 Figure 4: Tilt angle (NLV 2100 I-Type) ..................13 Figure 5: Curvature (NLV 2001 I-Type)..................
-
Page 6: Abstract
44° degrees. • A short-wavelength red laser improves the visibility of the scan line. • The NLV 2001 outputs scanned and decoded data via RS-232C, USB, or Wedge interfaces. • The NLV 2001 complies with RoHS. Supported symbologies:... -
Page 7: Physical Features
Opticon NLV 2001 Specifications Manual 3. Physical Features 3.1. Dimensions W 46.0 x D 58.0 x H 24.5 mm 3.2. Weight 120 g (max.) excluding the cable 4. Environmental Specifications 4.1. Ambient Light Immunity Decoding performance is guaranteed when the range of illumination on a barcode... -
Page 8: Electrical Specifications
Opticon NLV 2001 Specifications Manual 5. Electrical Specifications 5.1. Absolute Maximum Ratings Parameter Symbol Value Unit Power supply voltage (VDD to GND) -0.5 to 6.5 Input voltage -0.5 to +0.5 Power ripple 0.1Ｖp-p (10–100 kHz) 5.2. Recommended Operating Conditions Item... -
Page 9: Optical Specifications
Opticon NLV 2001 Specifications Manual 6. Optical Specifications Parameter Specification Unit Light-emitting element Red laser diode – Emission wavelength 650 ±10 (25° C) Light output 1.0 or less Scanning method Bi-directional scanning – Scanning speed 100 ±20 scans/s Scan angle Scan angle: 54 ±5... -
Page 10: Scan Area And Resolution
Opticon NLV 2001 Specifications Manual 7.3. Scan Area and Resolution Depth of Field 7.3.1. The scan area is a circular area centered around the beam, which appears at various resolutions. Figure 1: Depth of field and resolution (NLV 2001 I-Type) - Page 11 Opticon NLV 2001 Specifications Manual The depth of field is measured from the front edge of the scanner. Resolution (mm) Decode Depth (mm) 70–630 50–400 0.25 50–240 0.15 50–130 0.127 60–100 Conditions Barcode Sample: OPTOELECTRONICS Test Sample N/W Ratio 1:2.5 Angle α...
-
Page 12: Pitch, Skew, And Tilt
Opticon NLV 2001 Specifications Manual 7.4. Pitch, Skew, and Tilt Pitch Angle 7.4.1. α ≤ ±35° Figure 2: Pitch (NLV 2001 I-Type) -
Page 13: Skew Angle And Dead Zone
Skew angle: β ≤ ±50° (Excluding dead zone) Dead zone: β = ±8° (There are some areas in which decoding fails due to specular reflection) Figure 3: Skew angle and dead zone (NLV 2001 I-Type) Tilt Angle 7.4.3. γ ≤ ±20°... -
Page 14: Curvature
With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15 mm. With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 mm. Figure 5: Curvature (NLV 2001 I-Type) Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm... -
Page 15: Interface Specifications
Opticon NLV 2001 Specifications Manual 8. Interface Specifications 8.1. RS-232C Interface Spec Settings and Communication 8.1.1. Reading the menu barcodes in section 10.1 can set the RS-232C interface default. Item [U2] setting Baud rate 9600 bps Start/stop bits 1 bit... -
Page 16: Interface Circuit
Opticon NLV 2001 Specifications Manual Interface Circuit 8.1.3. Figure 6: Interface circuit Character Format 8.1.4. Figure 7:Character format (same for both sending and receiving) Communication Format 8.1.5. Figure 8: Communication format... -
Page 17: Handshaking
Opticon NLV 2001 Specifications Manual Handshaking 8.1.6. Select handshaking options using the menu or command listed below. Handshaking Menu/Command No handshake BUSY/READY MODEM ACK/NAK ACK/NAK NO RESPONSE a) No Handshaking The scanner attempts the communication regardless of the state of the host computer. -
Page 18: Figure 11: Cannot Receive Command
Opticon NLV 2001 Specifications Manual The scanner stays ON (is able to receive data) except during certain parts of the process, such as receiving data (buzzer command execution), transmitting data, and menu processing. The scanner checks the CTS line before transmitting data. -
Page 19: Figure 12: Signal Timing
Opticon NLV 2001 Specifications Manual CTS, TXD signal timing When the CTS line (RTS signal of the host) is turned OFF while sending a TXD signal, the scanner transmits one character and waits. When the CTS signal is turned ON while transmitting a character, the character will be transmitted. -
Page 20: Figure 14: Ack/Nak
Opticon NLV 2001 Specifications Manual d) ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: • ACK response—Action: The scanner completes transmission with the good-read buzzer and returns to the initial state. -
Page 21: Figure 15: Ack/Nak-No Response
Opticon NLV 2001 Specifications Manual e) ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK. -
Page 22: Usb Interface Specifications
Opticon NLV 2001 Specifications Manual 8.2. USB Interface Specifications The interface is full-speed USB version 1.1. Set the language for the scanner and PC keyboard to the same language before use; otherwise, the output may not be correct. Using the keyboard while the scanner is transmitting the data to the host may cause failure in data transactions. -
Page 23: Cable And Connector
Opticon NLV 2001 Specifications Manual 9. Cable and Connector 9.1. RS-232C Cable Standard Specification 9.1.1. Figure 17: RS-232C — cable 1 Type: Straight Diameter: φ3.8 ±0.5 mm Length: 1500 ±50 mm or 500 ±50 mm Cores: 8 insulated wires, 1 conductive wire... -
Page 24: Pin Assignment
Opticon NLV 2001 Specifications Manual Pin Assignment 9.1.3. a) Standard Specification Wire Color Signal Remarks Shield (Black) F.GND Cover the shield wire with the heat shrink tube. Black Green White Grey Blue Orange Yellow Brown TRIGGE b) D-sub Specification Signal Remarks F.GND... -
Page 25: Usb Cable
Opticon NLV 2001 Specifications Manual 9.2. USB Cable Standard Specification 9.2.1. Figure 19: USB cable Type: Straight Diameter: φ3.8 ±0.5 mm Length: 1500 ±50 mm Cores: 4 insulated wires, 1 conductive wire Weight: Approximately 50 g Connector 9.2.2. Figure 20: USB "A" connector Pin Assignment 9.2.3. -
Page 26: Wedge Cable
Opticon NLV 2001 Specifications Manual 9.3. Wedge Cable Standard Specification 9.3.1. Figure 21: Wedge cable Type: Y cable Diameter: φ3.8 ±0.5 mm Length: 1500 ±50 mm Cores: 6 insulated wires, 1 conductive wire Weight: Approximately 60 g Wedge Connector 9.3.2. -
Page 27: Pin Assignment
Opticon NLV 2001 Specifications Manual Pin Assignment 9.3.3. Host Connector Keyboard Connector CPU DATA KEY DATA OPEN OPEN CPU CLOCK KEY CLK OPEN OPEN 9.4. Connector Specification (Scanner Side) CN 1 (10-pin) Signal per Interface RS-232C Wedge TRIGGER KEY DATA KEY CLOCK R×D... -
Page 28: Default Settings
Opticon NLV 2001 Specifications Manual 10. Default Settings 10.1. Set Default Interface Scan the following menu barcodes to return to the default settings. RS-232C Functions Menu labels Menu codes _ZZ_ _U2_ RS-232C _ZZ_ USB-HID Functions Menu labels Menu codes _ZZ_... -
Page 29: Default Settings 1: Readable Codes
Opticon NLV 2001 Specifications Manual Wedge (with external keyboard) Functions Menu labels Menu codes _ZZ_ AT-Wedge _UB_ _KM_ With keyboard _ZZ_ Wedge (without external keyboard) Functions Menu labels Menu codes _ZZ_ _UB_ AT-Wedge Without keyboard _KL_ _ZZ_ 10.2. Default Settings 1: Readable Codes... - Page 30 Opticon NLV 2001 Specifications Manual Symbology Read Transmit Transmit Calculate Other Code Prefix Suffix Length ST/SP Code 11 — Code 39 Not transmit — ST/SP Code 93 — Code 128 — EAN-128 — IATA — Industrial2of5 — Interleaved2of5 — Matrix2of5 —...
-
Page 31: Default Settings 2: Read Options, Trigger, Buzzer
Opticon NLV 2001 Specifications Manual • In the “Transmit CD” column, “ ” means “Transmit check digit” and “X” means “Do not transmit check digit.” • In the “Calculate CD” column, “ ” means “Calculate check digit” and “X” means “Do not calculate check digit.”... -
Page 32: Default Settings 3A: Serial Communication Settings-Rs-232C, Usb-Vcp
Opticon NLV 2001 Specifications Manual 10.4. Default Settings 3A: Serial Communication Settings—RS-232C, USB-VCP Parameter “U2” and “C01” Default Setting ACK/NAK No handshaking Flow control time out Indefinitely Flow control Disabled Command header ESC/STX Command terminator CR/ETX 11. Serial Number The serial number shown below is affixed to the scanner. -
Page 33: Packaging Specifications
Opticon NLV 2001 Specifications Manual 12. Packaging Specifications 12.1. Individual Packaging Specification Put the scanner in a protective foam bag and place it in an individual packing box. Size of the package (after assembly: (W) 245 mm x (D) 110 mm x (H) 38 mm 12.2. -
Page 34: Durability
Opticon NLV 2001 Specifications Manual 13. Durability 13.1. Electrical Noise No malfunction occurred when sinusoidal electrical noise (50Hz -100kHz, < 0.1Vp-p) was added to a power supply line. Conditions Barcode Sample: OPTOELECTRONICS Test Sample Resolution 0.25 mm Symbology 9-digit Code 39... -
Page 35: Reliability
500 to 900 lx Conditions for the auto 1. Barcode sheet: OPTOELECTRONICS Test Sheet (white) trigger: Background: OPTOELECTRONICS Test Sheet (black) 2. Barcode sheet: OPTOELECTRONICS Test Sheet (black) Background: OPTOELECTRONICS Test Sheet (white) Figure 25: Auto trigger option (NLV 2001 I-Type) -
Page 36: Auto Trigger Enable/Disable Settings
Opticon NLV 2001 Specifications Manual 15.2. Auto Trigger Enable/Disable Settings Use the following settings to enable or disable the auto trigger. (Auto trigger is disabled by default). To enable auto trigger, scan “ZZ”, “+I” and “ZZ” in that order. To disable auto trigger, scan “ZZ”, “+F” and “ZZ” in that order. -
Page 37: Regulatory Compliance
Opticon NLV 2001 Specifications Manual 16. Regulatory Compliance 16.1. Laser Safety The scanner emits laser beams. JIS C6802: 2005: Laser class 2 IEC 825-1/EN 60825-1: Laser class 2 FDA CDRH Laser class II. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No. -
Page 38: Safety
Opticon NLV 2001 Specifications Manual 17. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 17.1. Shock Do not throw or drop the scanner. Do not place heavy objects on the cables. 17.2. Temperature Conditions Do not use the scanner at temperatures outside the specified range. -
Page 39: Mechanical Drawing
Opticon NLV 2001 Specifications Manual 18. Mechanical Drawing Figure 26: Mechanical drawing (NLV 2001 I-Type)
