- Page 1 SETUP GUIDE IMS-VSG181 Hot-Plug Module March 1, 2022 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
Cabling ........... . . 5 IMS-VSG181 Module Connectors and Indicators Status LEDs . -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com... -
Page 5: Change Log
——————————————————————————————————————————————— 1.11 2/23/2022 Clarification of information regarding LEDs, on-board oscillator and time zone setting Date: March 1, 2022 IMS-VSG181... -
Page 6: Introduction

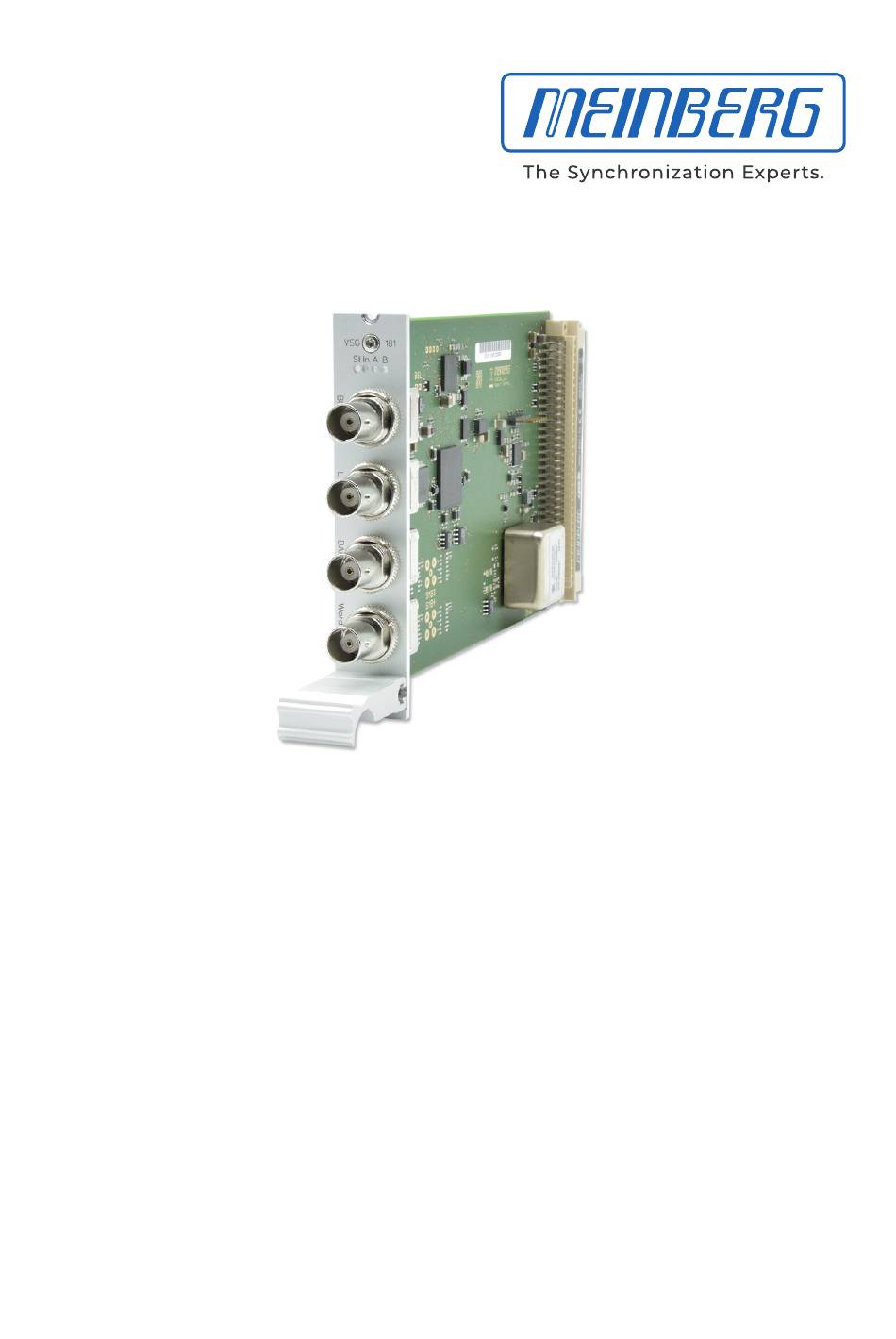

This Setup Guide is a systematically structured guideline to assist you with the set-up of your Meinberg product. The IMS-VSG181 is used to provide a reference video or audio signal for studio equipment, with generated sig- nals output through four BNC outputs. These respectively output a bi-level sync (black & burst)/tri-level-sync signal, a linear time code (LTC) signal, a Digital Audio Reference Signal (DARS), and a word clock signal. -
Page 7: Important Safety Information
This manual is only intended to be used by qualified electricians, or by persons who have been appropriately instructed by qualified electricians and who are familiar with applicable national standards and safety rules & regulations, especially in relation to the installation of low-voltage (< 1000 V) installations. Date: March 1, 2022 IMS-VSG181... -
Page 8: Prevention Of Esd Damage
ESD-proof bags that are crumpled or have holes cannot provide effective protection against electrostatic discharges. ESD-proof bags must have a sufficient electrical resistance and must not be made of conductive metals if the device has a lithium battery fitted on it. IMS-VSG181 Date: March 1, 2022... -
Page 9: Power Supply
In the event that a power supply unit is no longer working (e.g. defective), please return it to Meinberg for repair. Failure to observe these safety instructions may result in serious injury and/or property damage. The IMS system must only be installed, set up, and operated by qualified personnel. -
Page 10: Ims-Vsg181 Module Connectors And Indicators
5 IMS-VSG181 Module Connectors and Indicators 5 IMS-VSG181 Module Connectors and Indicators The numbering in the drawing above relates to the relevant subsection in this chapter. IMS-VSG181 Date: March 1, 2022... -
Page 11: Status Leds
5.1 Status LEDs Statusanzeige LED "St": Status of IMS-VSG181 in operating system St In A B LED "In": Status of synchronization against reference signal LED "A": Status of "Black Out" output LED "B": Status of "LTC" output The status LEDs "A" and "B" only provide information about whether the outputs have been enabled and properly configured in the LANTIME Web Interface. - Page 12 IMS-VSG181 is synchronized against reference signal, but module oscillator is not yet warmed up Yellow IMS-VSG181 is not yet synchronized against the reference signal, but a signal has been found IMS-VSG181 cannot find a stable reference signal and therefore cannot be synchronized ———————————————————————————————————————————————–...
-
Page 13: Black Out Output
24 fps (23.976 Hz and 24 Hz) 25 fps 30 fps (with or without drop frame support for adapting 30 fps time code to 29.97 fps content) Connector Type: BNC Connector, Female Cable: Coaxial Cable, Shielded Date: March 1, 2022 IMS-VSG181... -
Page 14: Dars Output
5 IMS-VSG181 Module Connectors and Indicators 5.4 DARS Output Output Signal: DARS Signal Level: TTL, 2.5 V termination (unbalanced) Signal Type: Digital audio with base sample rate of 44.1 kHz or 48 kHz Connector Type: BNC Connector, Female Cable: Coaxial Cable, Shielded 5.5 Word Clock Output... -
Page 15: Before You Start
6.1 Contents of Delivery Unpack the IMS-VSG181 carefully and check the contents of the delivery against the enclosed packing list to ensure that no parts are missing. If any of the listed items are missing, please contact our sales department: sales@meinberg.de... -
Page 16: System Installation
Operating System, the configuration of some IMS modules may be reset to factory defaults! The NTP service and access to the web interface will be unavailable while the CPU is not installed. Management and monitoring functions will also be disabled. IMS-VSG181 Date: March 1, 2022... -
Page 17: Installation Of Hot-Pluggable Ims Modules
Ensure that the module is securely seated in the connector block inside the chassis before you fasten the two screws. The installed module is now ready for use. Locations of fixture screws in a 1RU IMS system Date: March 1, 2022 IMS-VSG181... -
Page 18: Data And Signal Cables
7.3 Data and Signal Cables Coaxial Cable The IMS-VSG181 module provides four BNC connectors which respectively output an analog bi-level or tri-level sync signal, a digital DARS signal, a digital LTC signal, and a digital word clock signal. The signal outputs should be connected to your receiver device using coaxial cable with the proper char- acteristic impedance and adequate shielding. -
Page 19: Configuration And Setup Via Web Interface
The IMS-VSG181 is configured by selecting the menu I/O Config Output Configuration in the Web In- terface. The configuration options addressed in this chapter represent a IMS-VSG181 with Firmware Version V1.11 running under LANTIME OS Version 7.04. Date: March 1, 2022... -
Page 20: Output 1: Black Out
"720p 59.94 Hz" (Tri-Level Sync, SMPTE ST 296) "1080i 59.94 Hz" (Tri-Level Sync, SMPTE ST 274M) Vertical Offset: Approximate configuration of phase offset in lines Horizontal Offset: Fine adjustment of phase offset in 10 ns increments IMS-VSG181 Date: March 1, 2022... - Page 21 Use Local Time If the IMS LANTIME server is being operated as a PTP Offset from PTP slave, enabling this option will cause the IMS-VSG181 TLV if Running to incorporate any local time offset information in PTP Slave Mode: included in TLVs from the master clock for generating the signal and time codes.
-
Page 22: Output 2: Ltc
If this option is enabled, the parity bits will not be integrated into Encoding: the LTC data. This may be necessary for compatibility reasons. Label: You can use this field to define a custom label for the output, or you can leave the field blank. —————————————————————————————————————————- IMS-VSG181 Date: March 1, 2022... -
Page 23: Output 3: Dars
"Digital Audio Out" (Digital Audio Reference Signal [DARS]) Output Type: Signal Type: "OFF" "DARS 48 kHz" "DARS 44.1 kHz" Label: You can use this field to define a custom label for the output, or you can leave the field blank. —————————————————————————————————————————- Date: March 1, 2022 IMS-VSG181... -
Page 24: Output 4: Word Clock
The frequency of the output signal is thus calculated as: Base Frequency * Scale Factor = Output Frequency Label: You can use this field to define a custom label for the output, or you can leave the field blank. —————————————————————————————————————————- IMS-VSG181 Date: March 1, 2022... -
Page 25: Misc
8.5 Misc ——————————————————————————————————————————————– Time Zone: This can be used to set the time zone for the IMS-VSG181 module. ——————————————————————————————————————————————– Date: March 1, 2022 IMS-VSG181... -
Page 26: Troubleshooting
Our Technical Support team will be pleased to help you with any problems that you may be having with your Meinberg IMS-VSG181. However, before you contact our Technical Support team, it is advisable to read this chapter through first to see if your problem might be more quickly resolved with one of the solutions below. -
Page 27: Your Opinion Matters To Us
10 Your Opinion Matters to Us This user manual is intended to assist you in the preparation, use, and care of your Meinberg product, and provides important information for configuration and status monitoring. Be a part of the ongoing improvement of the information contained in this manual. Please contact our Technical Support team if you have any suggestions for improvements or technical questions that are relevant to the manual. -
Page 28: Rohs And Weee
WEEE-compliant fashion, it must be returned to the manufacturer. Any transportation ex- penses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. IMS-VSG181... -
Page 29: List Of Abbreviations
National Television Standard Committee Network Time Protocol Phase Alternating Line Redundant Switch Control unit Pulse per Second SMPTE Society of Motion Picture and Television Engineers Transistor–Transitor Logic VITC Vertical Interval TimeCode Web-UI Web User Interface Date: March 1, 2022 IMS-VSG181...
