Protector Operation Manual
INSTALLATION
Mount the Protector in a 19" Rack.
Ensure the unit is mounted securely by all four rack-ear bolts to provide sufficient support for the
chassis. When the unit is rack-mounted, do not put additional weight on top without adding
additional support below. The Protector should be operated in a relatively dust-free environment.
Make the necessary cable connections (see fig 1 (overall), 2 (video), 3 (PC), and 4 (GPI))
Provide 115 VAC main power to the unit via the provided, ground-isolation power cord (see fig
1)
Computer Connections
See Figure 3
Keywest Technology
th
14563 W. 96
Terrace
Lenexa, Kansas 66215
800.331.2019
www.keywesttechnology.com
Rear air intake and front air expulsion vents must not be obstructed.

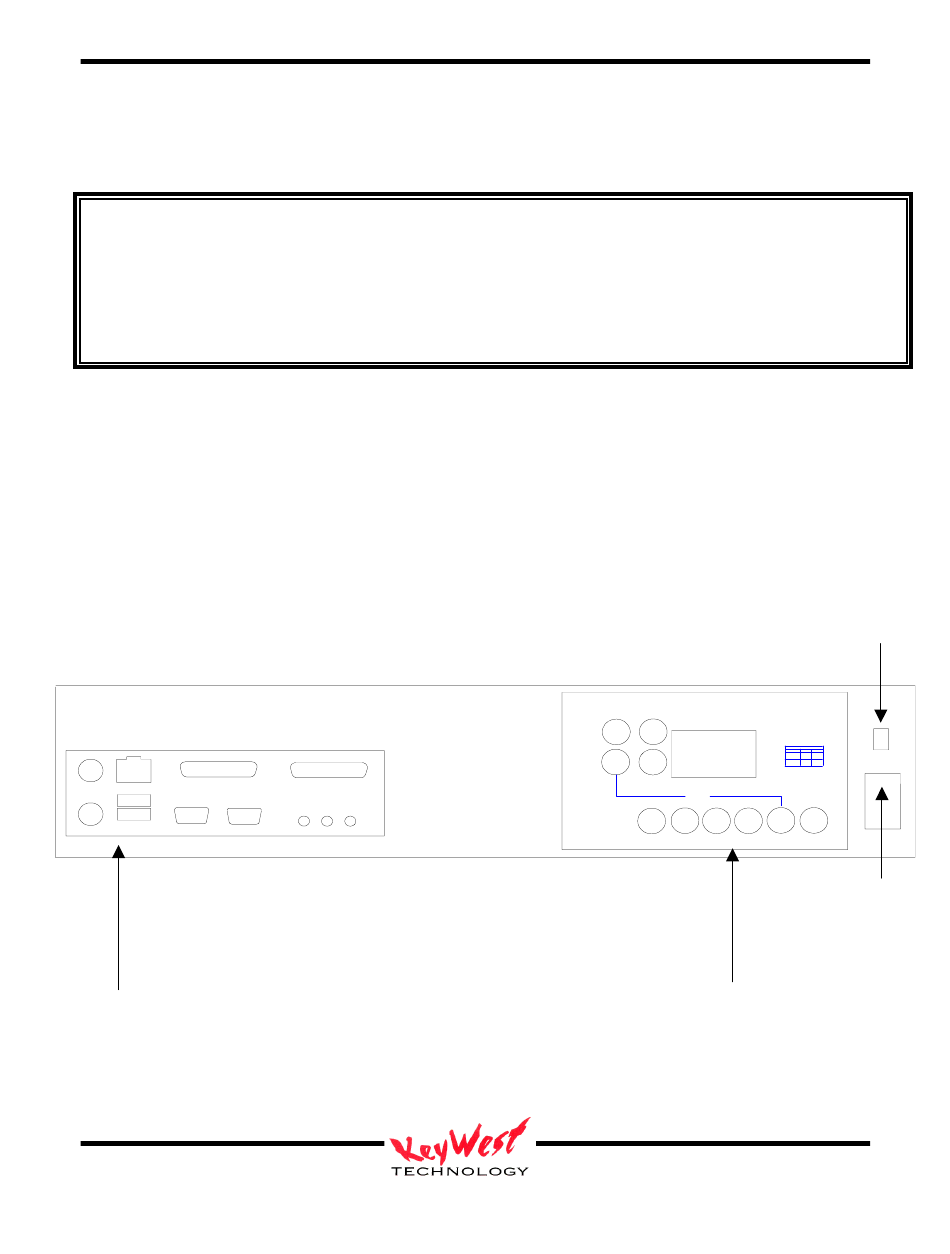

Protector Rear Panel View
(see following pages for Video and PC connections)
CAUTION
Figure 1
10 July 2000
MegaHertz
Master Power Switch
OUT TO
NET IN
INSERTER
FROM RX
1 2 3 4 5 6 7 8 9 10
GPO
GPI
NET OUT
1 2 3 4 5 6 7 8 9 10
TO MOD
LOOP
Video Connections
See Figure 2
GP I C ONN E CTION S
In a C ontact C losu re S ys tem
For GP I #1 Loo p Pin 1 to Pin 9
For GP I #2 Loo p Pin 3 to Pin 9
C ontact C losure
+
-
GP I #1
P in 10
P in 2
GP I #2
P in 10
P in 4
IN FROM
INSERTER
115 VAC
Main Input
