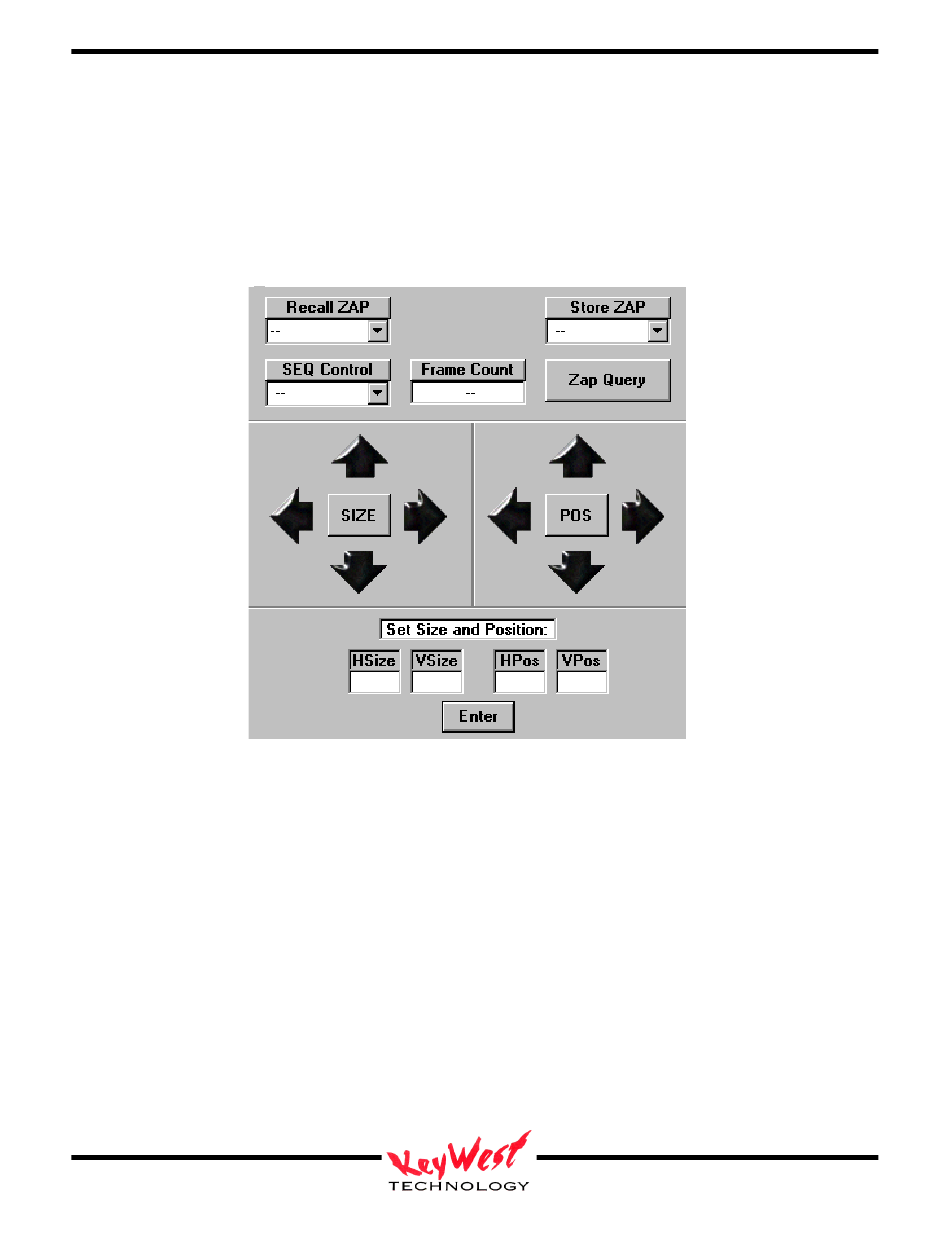

The larger black directional arrows give you the ability to change size and position of the
foreground video (IN FROM INSERTER). You can also manually type in desired sizes and
positions at the bottom of that frame, and click ENTER to immediately change the size and
position of the foreground video (fig 8).
Figure 8
Border and crop are not used in the stock ticker job, but if you wish to test drive, you'll need to
"squeeze" the foreground video down some, and move it so that all 4 edges are visible. You can
then "play" with the border and crop settings to add full color borders to your foreground, and/or
crop the foreground to mask unwanted parts of the foreground (such as blanking interval
differences usually visible on the left edge of a "squeezed" foreground).
Alpha Key Mode and Background Modes are further explained in Appendix ____. Again, they
are not used in the stock ticker installation, but changing these settings could change the display
to an undesirable state. Remember, to recover, press RECALL POR or re-boot the system.
