The GUI should now be loaded, and you'll see one of the main screens on your setup monitor.
(Fig. 5).
The Protector is calibrated for video levels and timings at the factory, but you may wish to tweak
these values to perfectly match your system. These adjustments are made on the MAIN form.
(Fig. 5)

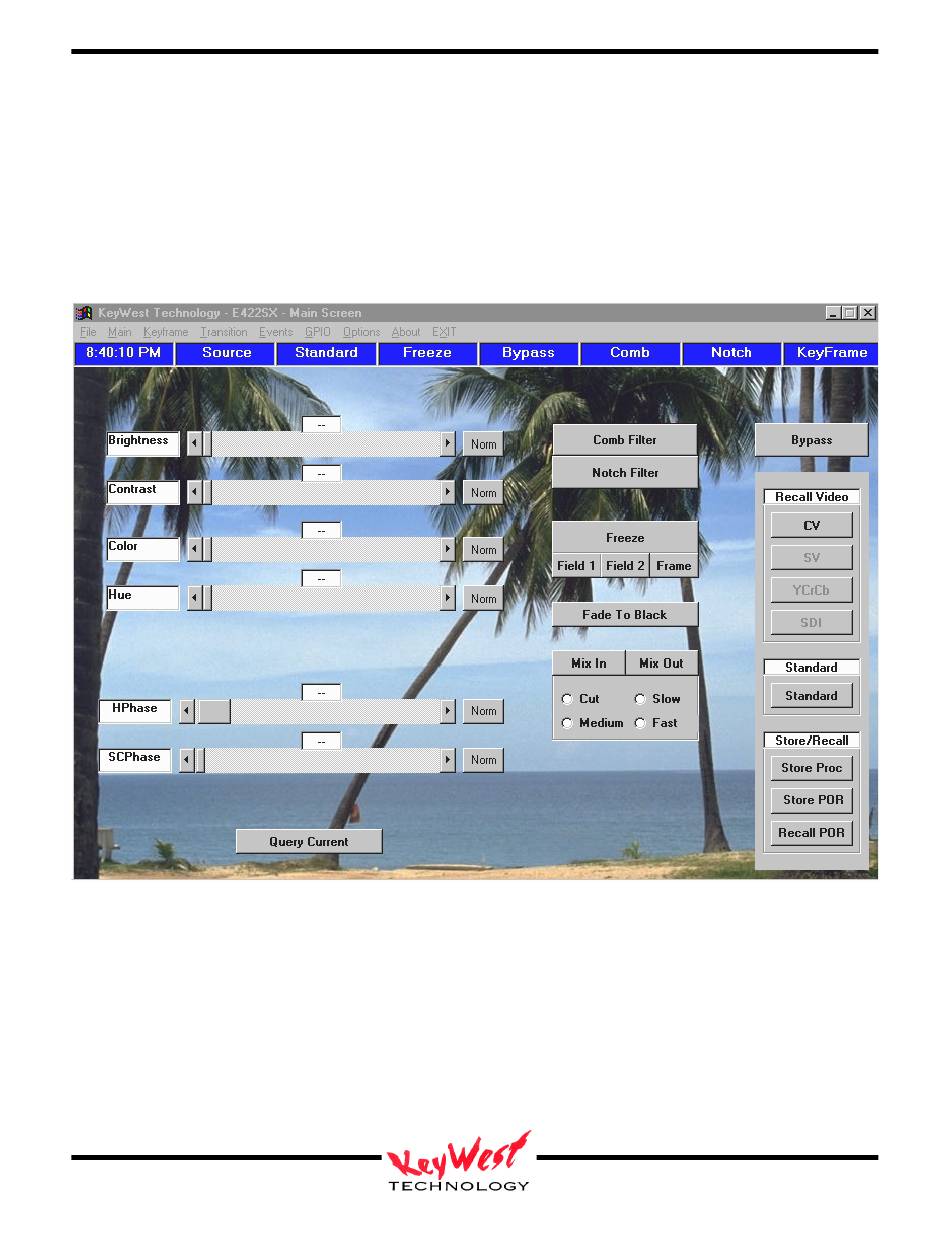

MAIN SCREEN

Figure 5
Use this form to adjust your proc amp settings (color, bright, contrast, hue, and timings). This
form also contains controls for the remaining features of the Protector video processing board
set. The Protector is set to broadcast standards at the factory. You can fade video to black, mix
video between foreground and background, as well as other functions. These functions are not
used in the stock ticker job, and we STRONGLY recommend you don't change any of the
settings that you don't need! But, just in case, should buttons be "clicked" to just take it for a
spin...you can always recover to original settings by clicking RECALL POR or as a last resort,
