SigCon Architect LMH1297 GUI Profile
6.2

Low Level Page

The Low Level Page allows the user to access the LMH1297 registers individually. This page is described
in two main sections:
• Register Map
• Field Description
Figure 17 shows the Low Level Page.
6.2.1 Register Map
The Register Map section contains the three main register pages: Shared Registers, CTLE-CDR
Registers, and Config IO Registers. Within these register pages, the following can be observed:
• Name of each register
• Each register's address and default value
• Register accessibility as read-only or read/write
The register value can be overwritten by typing the desired value in either the Data box or by clicking the
appropriate checkboxes in the top right of the Low Level Page. Only bits that are read/write accessible can
be modified.
6.2.2 Field Description
The Field Description section allows the user to view the detailed name, access type, and description for
the register selected from the Register Map section.
14
LMH1297EVM Evaluation Board

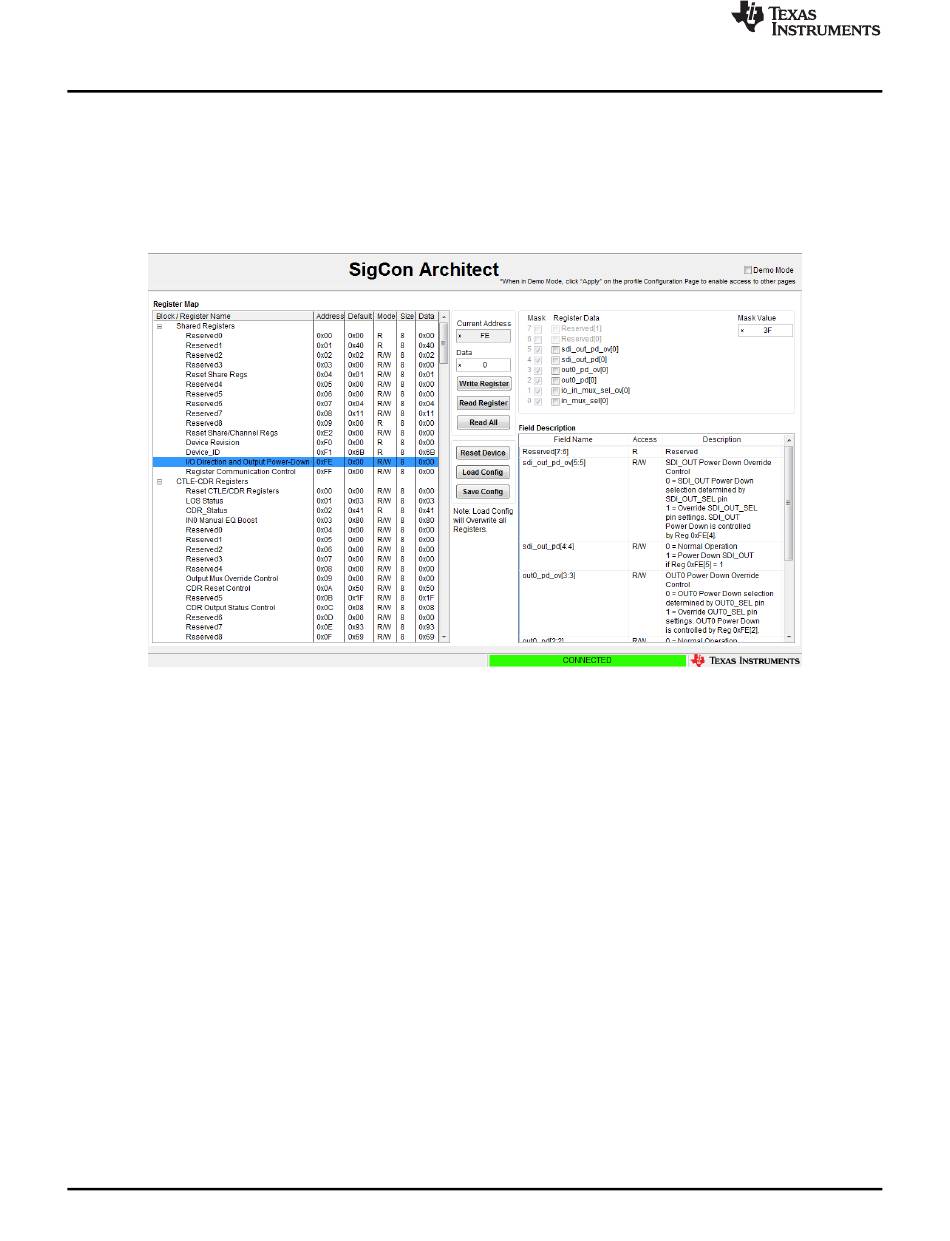

Figure 17. LMH1297EVM Low Level Page
