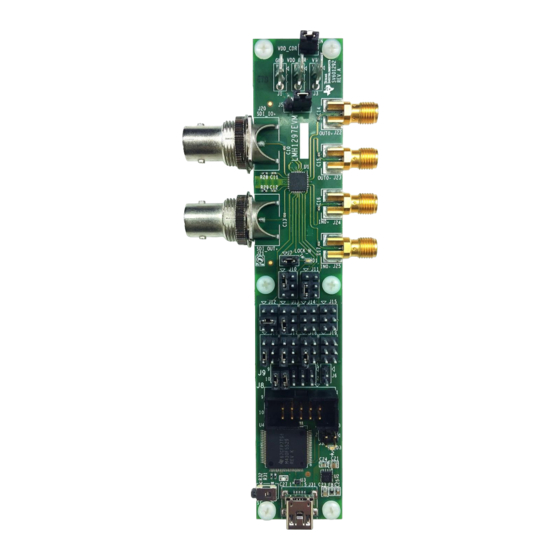

The LMH1297EVM is an evaluation module designed for high-speed performance and functional
evaluation of the Texas Instruments LMH1297 12G UHD-SDI 75-Ω bidirectional I/O with integrated
reclocker. With this kit, users can quickly evaluate the cable reach and output signal integrity supported by
the LMH1297. High-performance edge-mount BNC connectors are used at the 75-Ω port for the SDI_IO
and SDI_OUT signals, while 100-Ω differential input and output ports are routed to edge-mount SMA
connectors. These connectors facilitate connection to lab equipment or user systems for performance
evaluation. An onboard MSP430 MCU is included to support an optional SMBus or SPI serial control
interface when configuring the LMH1297 operating modes.
......................................................................................................................
