9.9 DO Function selection

Digital relay outputs are multifunctional outputs, which can be associated with the functions of:
• Cooling for Loop 1,2 and 3
• Alarms 1,2,3,4
• Heater Break
• Watch Dog on RS485
• Error on an input
• Replication of DI status
• RUN status for Loop 1,2 and 3
• Remote command 1 and 2
The various functions can also be combined with each other to have different functions on a single output.

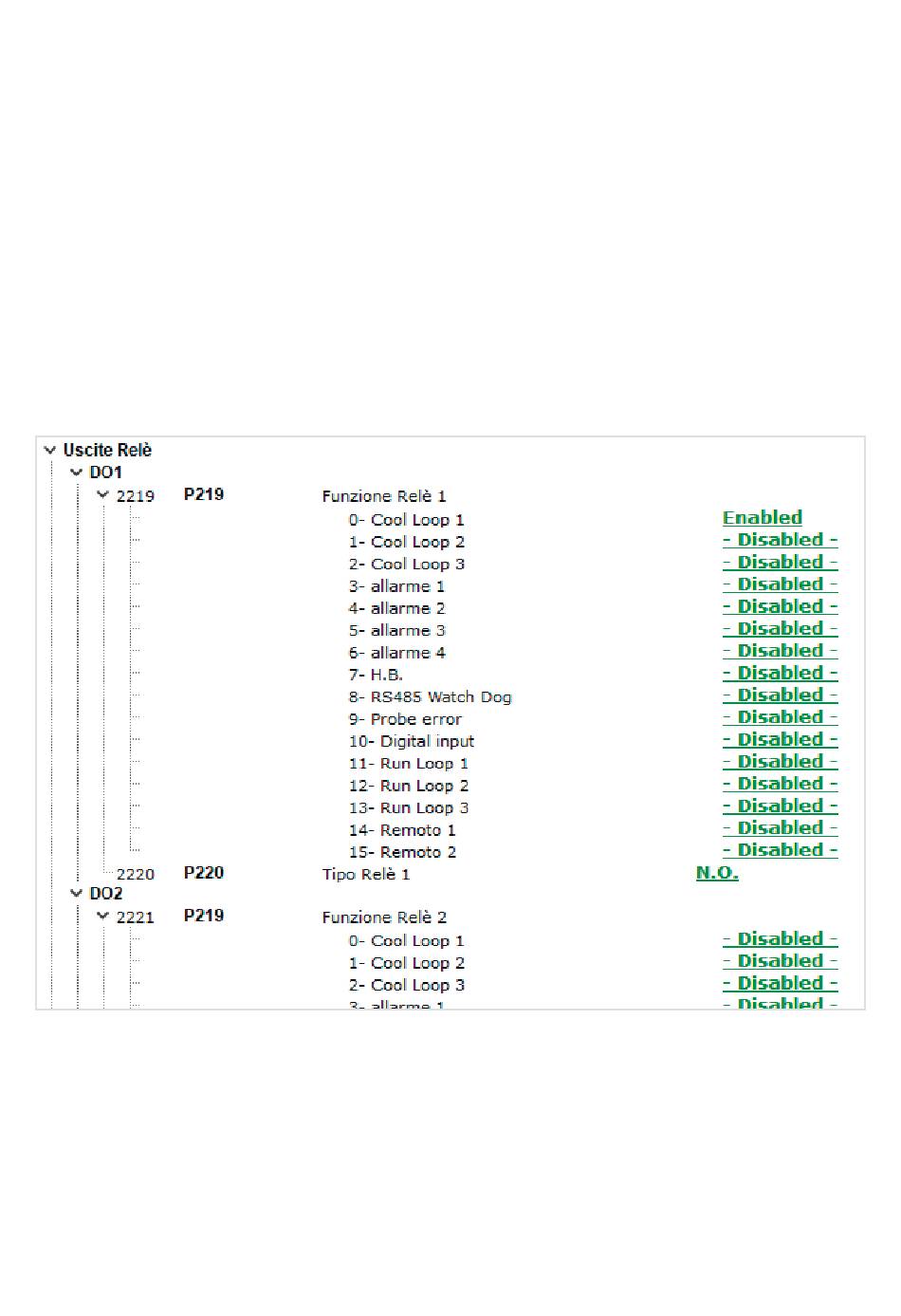

See parameters P219, P221, P223, P225, P227 on chapter 11 "Configuration parameter list".
Es: The status of 2 alarms + the status of the sensors + the status of the Heater Break can be associated on
one output.
