Atlas - Internal Cube
Assembly Instructions -

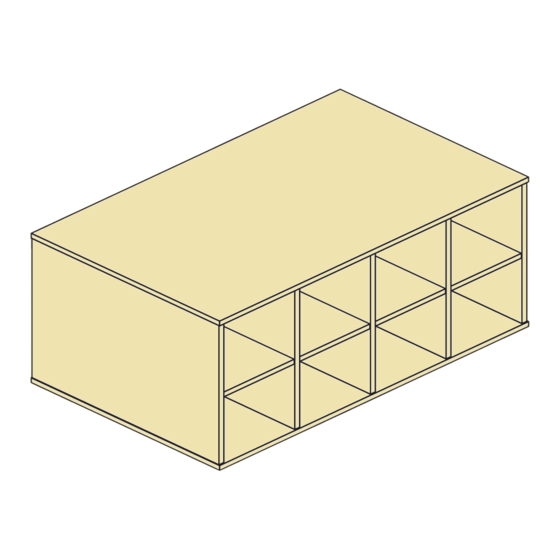

Low Unit
Dimensions
Width - 97cm
Depth - 59cm
Height - 47cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
Tall Unit
Dimensions
Width - 47cm
Depth - 59cm
Height - 97cm
339/5176
MADE IN
BRITAIN
Issue 1 - 03/12/14
Advertisement
Related Manuals for Argos Atlas Internal Cube 339/5176
Summary of Contents for Argos Atlas Internal Cube 339/5176
- Page 1 Atlas - Internal Cube Assembly Instructions - 339/5176 Please keep for future reference Low Unit Tall Unit Dimensions Dimensions Width - 97cm Width - 47cm Depth - 59cm Depth - 59cm MADE IN Height - 47cm Height - 97cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 30kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Part-drilled Through holes holes Side Divider (DF1809) (DF1810) (438 x 586mm) (438 x 586mm) 3 Top/Base Shelf...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the side and the 4 dividers Insert 6 large locking nuts into the side and each of the 4 dividers Note: The arrow on the locking nut must point...
- Page 6 Assembly Instructions Step 2 Prepare the top and base Screw 15 metal dowels into the top and base Note: Tighten the metal dowels up fully against the panels. Finished front edge Note: Make sure that you are not using one of the dividers. Step 3 The holes shown arrowed, should only be part-drilled.
- Page 7 Assembly Instructions Step 4 Fit the 4 dividers to the base Push the 4 dividers onto the base Use a screwdriver to tighten the 3 large locking nuts fitted to each of the 4 dividers Finished Finished front edge front edge Step 5 Fit the top Push the top...
- Page 8 If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3125...
