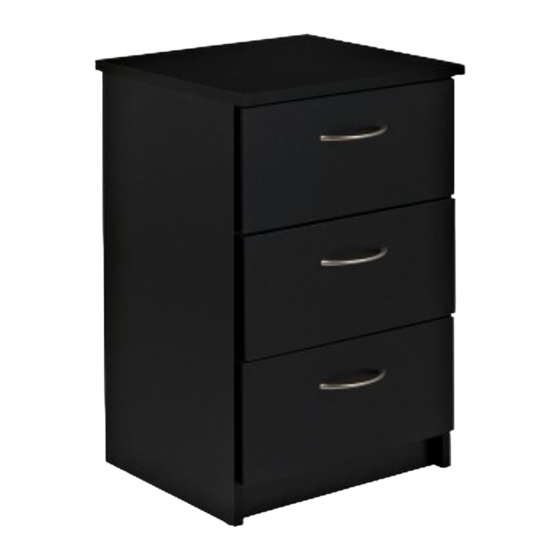

Cheval - Bedside
Assembly Instructions -
Dimensions
Width - 38.5cm
Depth - 36cm
Height - 58cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
147/3100
152/8794
152/7939
146/1480
MADE IN
BRITAIN
Issue 2 - 13/03/14
Advertisement
Related Manuals for Argos Cheval 147/3100
Summary of Contents for Argos Cheval 147/3100
- Page 1 Cheval - Bedside Assembly Instructions - 147/3100 Please keep for future reference 152/8794 152/7939 146/1480 Dimensions Width - 38.5cm Depth - 36cm MADE IN Height - 58cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 13/03/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 12kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D2736A) (D2735A) (D2734A) (562 x 318mm) (562 x 318mm) (383 x 360mm) Rail...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 3 drawer fronts Screw 2 metal dowels into each of the 3 drawer fronts Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left side Place 3 runners the left side Finished shown. Slide back the front edge top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 8 Assembly Instructions Step 9 Prepare the right side Place 3 runners the right side shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into Finished...
- Page 9 Assembly Instructions Step 10 Note: The 2 rails can have Prepare the 2 rails a plain chipboard surface. Plain chipboard Tap 2 wooden dowels surface into each rail Note: Wooden dowels must not stick out from the edge by more than 10mm 10mm or they may damage other panels.
- Page 10 Assembly Instructions Step 13 Prepare the top Screw 4 metal dowels into the top Finished front edge Step 14 Fit the top Push the top onto the sides Use a screwdriver to tighten the 2 large locking nuts fitted to each side...
- Page 11 Assembly Instructions Step 15 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 12 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2968...
