Argos Capella Assembly Instructions Manual

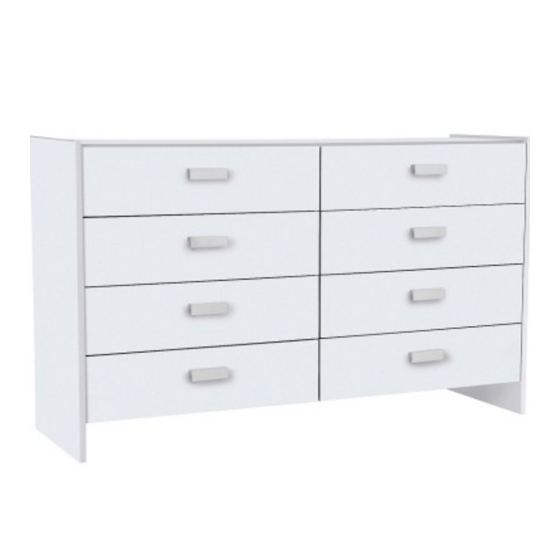

4 + 4 drawer chest
Hide thumbs Also See for Capella:

Advertisement

Quick Links

Download this manual
Capella - 4 + 4 Drawer Chest
Assembly Instructions -
Dimensions
Width -123.5cm
Depth - 39cm
Height - 74.4cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
615/8602
615/8592
615/8585
MADE IN
BRITAIN
Issue 2 - 28/6/11
