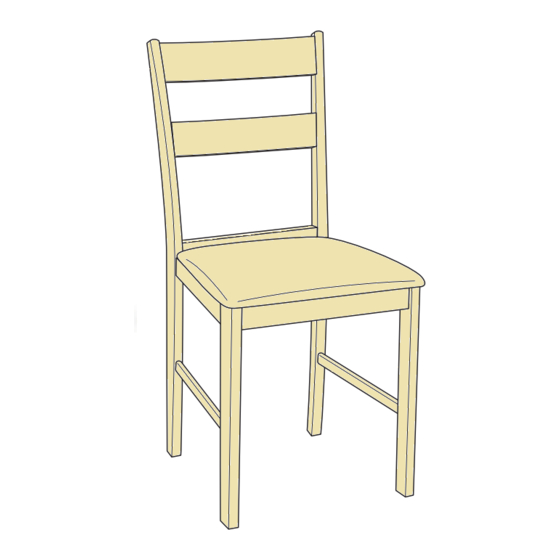

WYTON DINING CHAIR
Assembly Instructions
Dimensions
Width - 40cm
Depth - 49cm
Height - 89cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
- Please keep for future reference
620/6585
619/4240
Issue 1 - 23/09/16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos HOME WYTON DINING CHAIR 620/6585
Summary of Contents for Argos HOME WYTON DINING CHAIR 620/6585
- Page 1 Width - 40cm Depth - 49cm Height - 89cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 640 0800 Issue 1 - 23/09/16...
-
Page 2: Handy Hints
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • We do not components and tools listed on or put weight on the product, this recommend the the following pages. -
Page 3: Components - Parts
Components - Parts If you have damaged or missing components, call the Customer Helpline: Argos = 0345 640 0800 Please check you have all the parts listed below Note: The quantities below are the correct amount to complete the assembly of 1 chair. - Page 4 Assembly Instructions Step 1 Fitting dowels Insert wooden dowels into holes on the side rails as shown. Step 2 Attaching side rails Place the front leg a flat protected surface. Position the siderails as shown and insert the wood dowels into holes on the front leg.
- Page 5 Assembly Instructions Step 4 Attaching backrest Then align and insert the stretchers into holes on the front leg Position the siderails as shown and insert the wood dowel into center holes on backrest Step 5 Securing backrest Fix the backrest siderail using bolts and spring washers...
- Page 6 Assembly Instructions Step 6 Aligning the legs Carefully turn the chair upright and place on a flat surface. Make adjustments to ensure the chair frame is straight and the legs are even on the floor then fully tighten all bolts assembled in previous steps using allen key Step 7...
- Page 7 Tighten screws using crosshead screwdriver. Carefully turn over the unit after assembly. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 640 0800...
