6 REMOVAL & REPLACEMENT

6.8 LCD

A. Part Number .............................................. 27249
B. Tools and Equipment Required
• #1 Phillips Screwdriver
• 1/4" Nut Driver or Wrench
C. LCD Replacement
1. Separate Top from Bottom. Refer to 6.1,
part C.
2. Remove Channel 1 Stim Board. Refer to 6.4,
part C.
3. Remove Channel 2 Stim Board. Refer to 6.5,
part C.
4. Remove Ultrasound Board, Refer to 6.6,
part C.
5. Remove Control Board, Refer to 6.7,
part C steps 1 through 10.
6. Once the LCD is removed from the Control
Board, per step 5, remove the LCD mounting
bracket from both sides of the LCD. See
Figure 6.23.
7. Replace the LCD by reversing the steps above.
NOTE:
Always install the LCD Brackets prior to
attaching the LCD to the Control Board.
38
Intelect Transport® Combo Therapy System

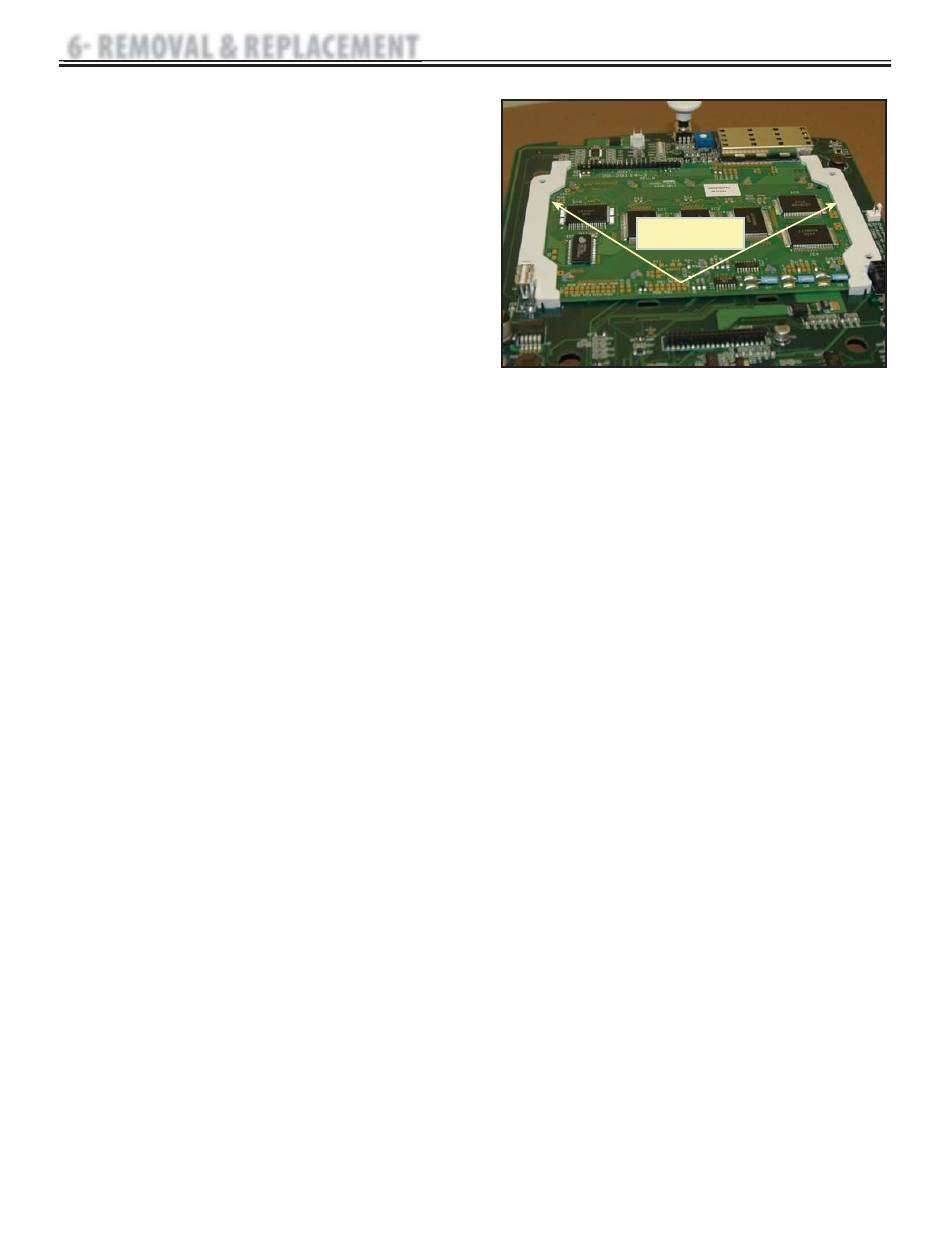

LCD MOUNTING
BRACKETS
FIGURE 6.23
