4 SPECIFICATIONS
4.2 INTELECT TRANSPORT COMBO ELECTROTHERAPY WAVEFORM
SPECIFICATIONS (CONTINUED)

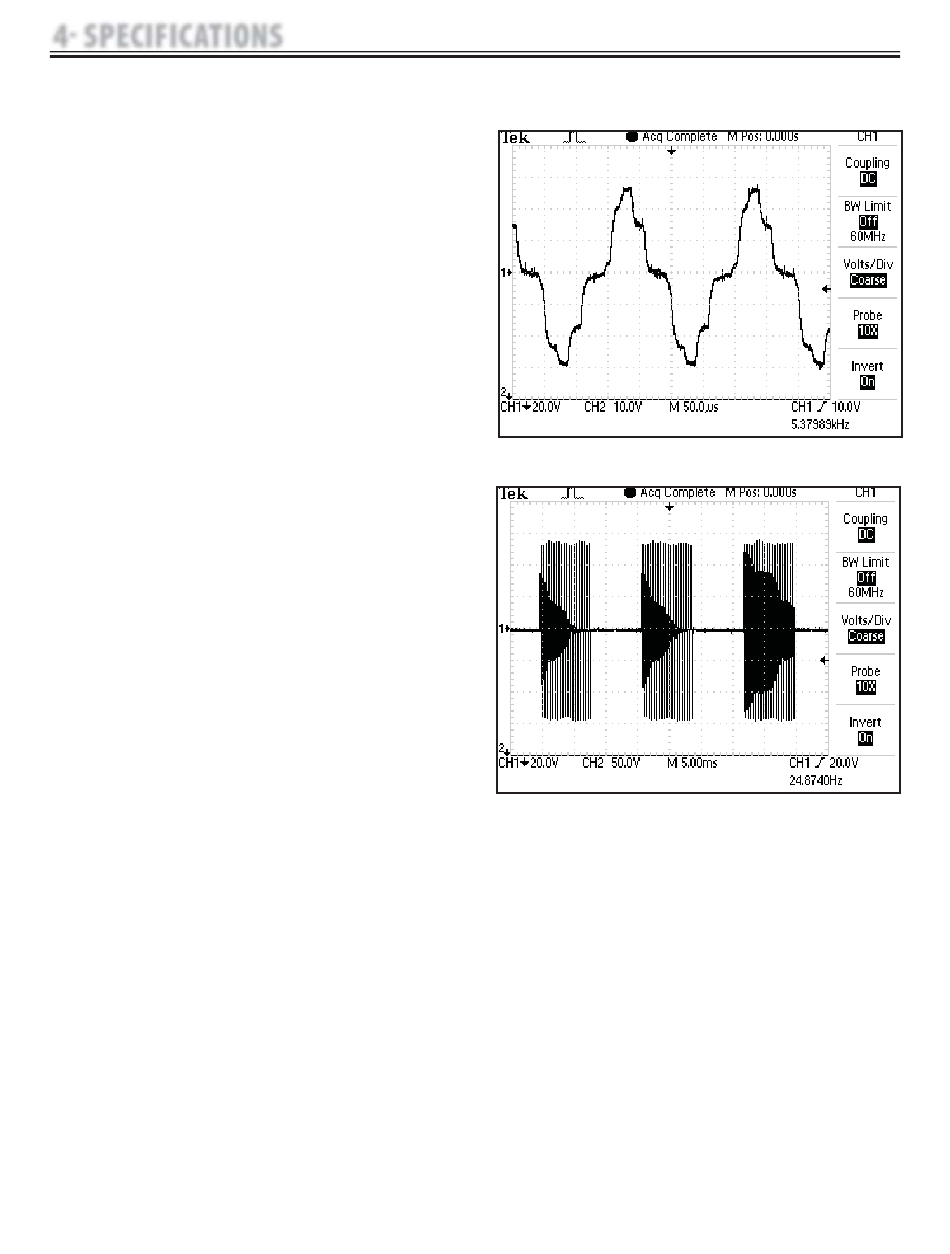

C. Interferential - Figure 4.4 (Factory Default
Setting)
Interferential Current is a medium frequency
waveform. Current is distributed from two
channels (four electrodes). The currents cross
in the body within the area being treated. The
two currents interfere with each other at this
crossing point, resulting in a modulation of the
intensity (the current intensity increases and
decreases at a regular frequency).
Output Mode . . . . . . . . . . . . . . . . . . . . . . . Electrodes
Amplitude . . . . . . . . . . . . . . . . . . . . . . . . . .0-100 mA*
Carrier Frequency . . . 2500 - 5000 Hz (4000 Hz)
Vector Scan . . . . . Manual, Automatic 40%, 100%
Vector Position . . . . . . . . . . . 0 - 90 Degrees (45˚)
Sweep . . . . . . . . . . . . . . . . . . . . . . . . . . . .On, 1-200 Hz
Beat Low Frequency . . . . . . . . . . 1-199 Hz (80Hz)
Beat High Frequency . . . . . . . .2-200 Hz (150Hz)
Constant Mode . . . . . . . . . . . . . . . . . . . CC or CV** (CC)
Treatment Time . . . . . . . . 1 -60 minutes (20 min)
D. Russian- Figure 4.5 (Factory Default Setting)
Russian Current is a sinusoidal waveform
delivered in bursts or series of pulses. This
method was claimed by its author (Kots) to
produce maximal muscle strengthening effects
without significant discomfort to the patient.
Output Mode . . . . . . . . . . . . . . . . . . . . . . . Electrodes
Amplitude . . . . . . . . . . . . . . . . . . . . . . . . . .0-100 mA*
Channel Mode . . 10%, 20%, 30%, 40%, and 50%
Constant Mode . . . . . . . . . . . . . . . . . CC or CV** (CC)
Cycle Time . . . . . . 5/5, 4/12, 10/10, 10/20, 10/30,
10/50, and Continuous (10/50)
Ramp . . . . 0.5 sec, 1 sec, 2 sec and 5 sec (2 sec)
Carrier Frequency . . . . . . . . . . 2500 Hz (2500 Hz)
Burst Frequency . . . . . . . . . . . 20 -100 Hz (50 Hz)
Treatment Time . . . . . . . . 1 -60 minutes (20 min)
* ESTI-2 Load Box
**CC= Constant Current
CV= Constant Voltage
