3 NOMENCLATURE

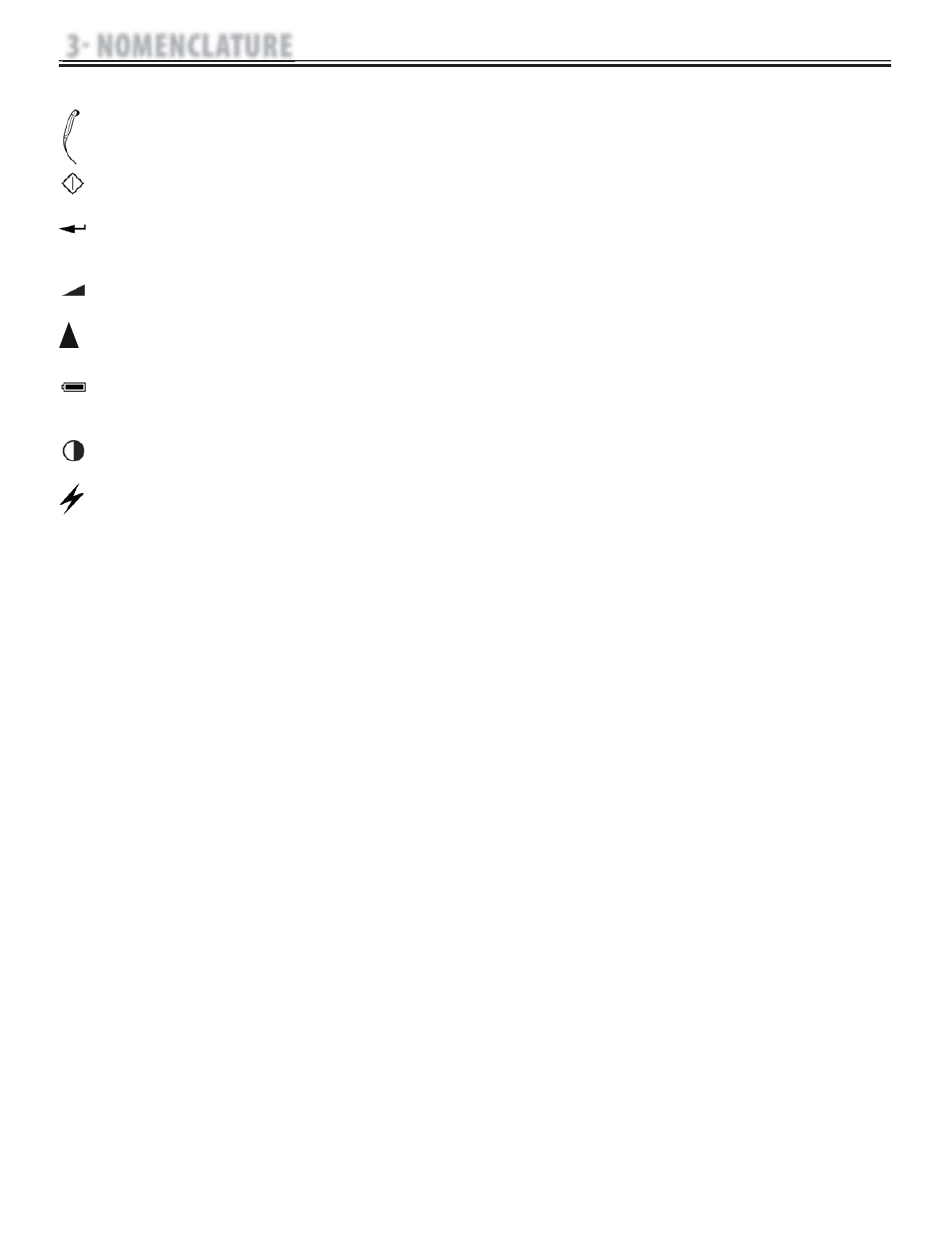

3.2 HARDWARE AND SOFTWARE SYMBOL DEFINITIONS CONTINUED
Ultrasound Applicator Connection
This port serves as the connection point between the unit and the ultrasound applicator.
START
Select Start to begin a treatment session.
Parameter Display/Enter
Select this button to display the parameters of the waveform during treatment. Also, this button is
used to accept the highlighted selection.
INTENSITY
Use the up or down arrow on the INTENSITY button to increase or decrease output power.
Up Arrow
When the window displays a list of options, press the Up Arrow button to scroll up the list.
Battery Indicator
When displayed on the LCD, this symbol indicates the battery pack option is present on the unit. This
symbol also displays the charge status of the battery.
LCD Intensity/Contrast Dial
If the intensity of the LCD display diminishes, turn the dial until the display contrast is optimal.
Charge Indicator
This symbol displays when the unit is connected to mains power and the battery pack is charging.
NOTE: During battery operation, if the unit is left on, but is not active for more than five minutes, it
will power off to conserve battery power. To restore power, press the Power On/Off button.
