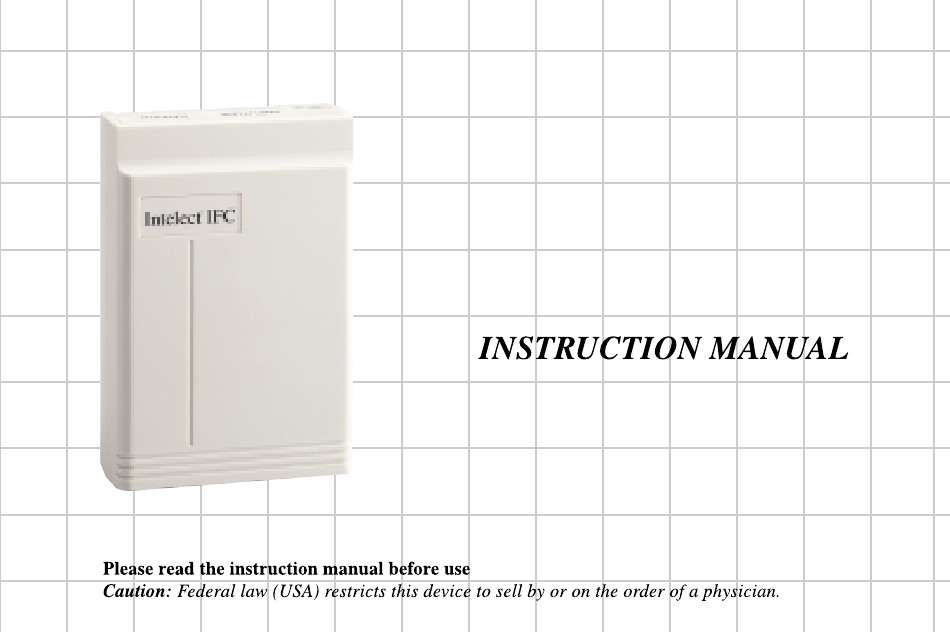

  • Page 1 Intelect IFC ®...
  • Page 2: Table Of Contents

    Contents Chapter Page INTRODUCTION General information ...............1 Cautions .
  • Page 3: Chapter Page

    Chapter Page Select the mode ............... . .11 Adjust the Rate .
  • Page 4: Introduction

    1. INTRODUCTION 1.1 General information: This interferential (IFC) device is a lightweight and portable medical device which can help to reduce pain and discomfort. It utilizes the low electric-current to stimulate muscle nerves to achieve the symptomatic relief of chronic intractable pain, post-traumatic pain, and post-surgical pain. 1.2 Cautions Federal law (USA) restricts this device to sale by or on the order of practitioners licensed by the State in which they practice to use or order the use of the device.
  • Page 5: Precautions

    1.4.5 Stimulation should not be applied over swollen, infected, or inflamed areas or skin eruptions, e.g., phlebitis, thrombophlebitis, varicose veins, etc. 1.4.6 Stimulation should not be applied over, or in proximity to, cancerous lesions. 1.4.7 For external use only. 1.4.8 Do not use IFC on the eye area. 1.4.9 This device should be used only under the continued supervision of a licensed medical practitioner.
  • Page 6: Adverse Reactions

    1.5.3 Caution should be used in the presence of the following: (a)When there is a tendency to hemorrhage following acute trauma or fracture (b)Following recent surgical procedures when muscle contraction may disrupt the healing process. (c)Over the menstruating or pregnant uterus (d)Over areas of the skin which lack normal sensation.
  • Page 7: Product Descriptions

    2. PRODUCT DESCRIPTIONS 2.1 Front and Rear panel: Top View Low Battery Indicator Light Rate Control Power Indicator Light Amplitude Control Back View Front View Lateral View Rate Control Channel 1 Amplitude Rate Control Output Control Amplitude Receptacle Electrode Control Mode Selector Channel 2 Number...
  • Page 8 Slide Cover: A panel covers the controls. Your medical professional may ask to set these controls for you and request you leave the cover in place. Amplitude Control: It controls the "INTENSITY" level of stimulating pulses. The control located at the right top of the unit regulates the amplitude, or intensity, of the stimulation and is the ON/OFF CONTROL.
  • Page 9 Adaptor Receptacle You also can use adaptor instead of battery. Insert adaptor plug into the adaptor receptacle to be used. Whenever you use adaptor, the battery power supply will be cut off automatically. The specification of adaptor Input: 120 Volts AC, 60Hz, 7W Output: 9 Volts AC, 300mA Battery compartment 9 Voltage battery- 1 pc...
  • Page 10: Stimulation Modes

    3.STIMULATION MODES The mode switch offers four stimulation modes. The mode switch is located under the front slide cover and you can shift the switch to adjust the mode. Be sure that when adjusting these stimulation modes, the intensity (Amplitude) output controls are set to the minimum output positions.
  • Page 11 3.3 8/8 The option "8/8" is identical to "1/1", except that each interference frequency value (75Hz to 155Hz in the above example) is held for 8 seconds. 3.4 10/10 The option "10/10" works from the -25% value to the +55% value gradually instead of rapidly. For example, when the frequency control was set at 100, the device will sweep gradually from 75Hz to 155Hz over a 10 second period, then from 155Hz to 75Hz during the next 10 seconds.
  • Page 12: Instructions For Use

    4. INSTRUCTIONS FOR USE NOTE: Always read this instruction manual before use. PREPARATION FOR USE 4.1 Check Battery: Insert a fresh 9V alkaline or rechargeable battery into the battery compartment. Make sure that you are installing the battery properly. The battery is inserted in the casing on the foot of the stimulator unit.
  • Page 13: Connect Lead Wires To Unit

    4.3 Connect lead wires to unit: Before proceeding to this step, be sure the unit is completely turned OFF. Holding the insulated portion of the lead wire connector, insert the angled-"L" plug into the receptacle on the right side of the main unit. Ensure the lead wires are inserted correctly.
  • Page 14: Place Electrodes On Skin

    4.4 Place electrodes on skin: Apply electrodes to the exact site indicated by your physician following the instruction included with the electrodes labeling. Before applying electrodes, be sure the skin surface over which electrodes are placed is thoroughly cleaned and dried. Make sure the electrodes are placed firmly to skin and make good contact between the skin and the electrodes.
  • Page 15: Adjust The Rate

    4.7 Adjust the Rate: The rate is adjustable 1~150Hz. Turn Rate Control to adjust Rate to the setting recommended by your medical professional. 4.8 Adjust Channel Amplitude: Turn Amplitude knob clockwise. Slowly turn the Amplitude control until you reach the setting recommended by your prescribing medical practitioner.
  • Page 16: Portability

    CARE AND MAINTENANCE 4.10 Portability: Your unit is portable and may be clipped to a belt, shirt pocket, bra or other clothing. 4.11 Battery: To replace the battery, open the lid cover and extract the battery. Replace it with a 9 V alkaline or similar rechargeable battery.
  • Page 17: Care Of Electrodes

    4.12 Care of Electrodes: To avoid skin irritation and ensure good contact with skin, clean silicone rubber electrodes with soap and water frequently. The electrodes must be dried completely before using. If you are using self-adhesive electrodes, disregard this procedure. Always use the electrodes with the requirements of the EN60601-1 and EN60601-2, such as with C E mark, or which are legally marketed in the US under 510(K) procedure.
  • Page 18: Handling And Storage

    5. HANDLING AND STORAGE Keep this device in the carrying case and store at room temperature. 6. SPECIFICATION Channel Manual selection. Single for two-electrode selected. Dual for four-electrode selected. Pulse Amplitude 0~32 mA = 0~16 volts, adjustable (at 500 ohm load) Carrier Frequency (Hz) 4000 Interference Frequency (Hz)
  • Page 19: Accessories

    7. ACCESSORIES Self-Adhesive Electrodes 4 PCS. 9 V Battery 1 PC. Lead Wires 2 PCS. Instruction Manual 1 PC. AC Adapter 1 PC.
  • Page 20: Troubleshooting

    8. TROUBLESHOOTING If your unit does not seem to operate correctly, refer to the chart below to determine what may be wrong. If none of these measures correct the problem, the unit should be serviced. • The power indicator lights up, but •...
  • Page 21: Warranty

    * Accessories (consisting of lead wire, AC adapter, electrodes, carrying case, and belt clip): 90 days from the date of original consumer purchase. To obtain service from Chattanooga Group or the selling dealer under this warranty, a written claim must be made within the warranty period to Chattanooga Group or the selling dealer.
  • Page 22 77392A 2003 Encore Medical...
