5 TROUBLESHOOTING

5.10 RUSSIAN MODE TEST

Set up System per 5.7 parts A and B prior to
performing test.
A. Russian Mode Test Procedures
1. Set Scope; Time- 5 mS, Channel- 50 V, and
Trigger- DC
3. Highlight Stim Channel 1. Press Enter
button.
4. Highlight Russian. Press Enter button.
5. Highlight Channel Mode. Press the Enter
button until Co-Contract is displayed.
6. Highlight Cycle Time. Press the Enter button.
7. Highlight Continuous. Press the Enter
button.
8. Increase Intensity until 100 is displayed.
9. Press START button.
10. Compare waveform on scope to Figure 5.7.
11. Verify that both Channels reach 100.
12. Press STOP button.
13. Highlight Channel 2 and repeat steps 4
through 12.
B. Russian Mode Test Results
1. Waveform is the same between scope and
Figure 5.7 and amplitude reached 100 volts
peak.
Unit passed test.
2. No waveform or considerably different
waveform.
Unit failed test. Replace appropriate Stim
Board.
3. Amplitude failed to reach 100 volts peak on
both Channels.
Unit failed test. Replace appropriate Stim
Board.
SPEC: 200V PEAK TO PEAK ±10%
21
Intelect Transport® Combo Therapy System

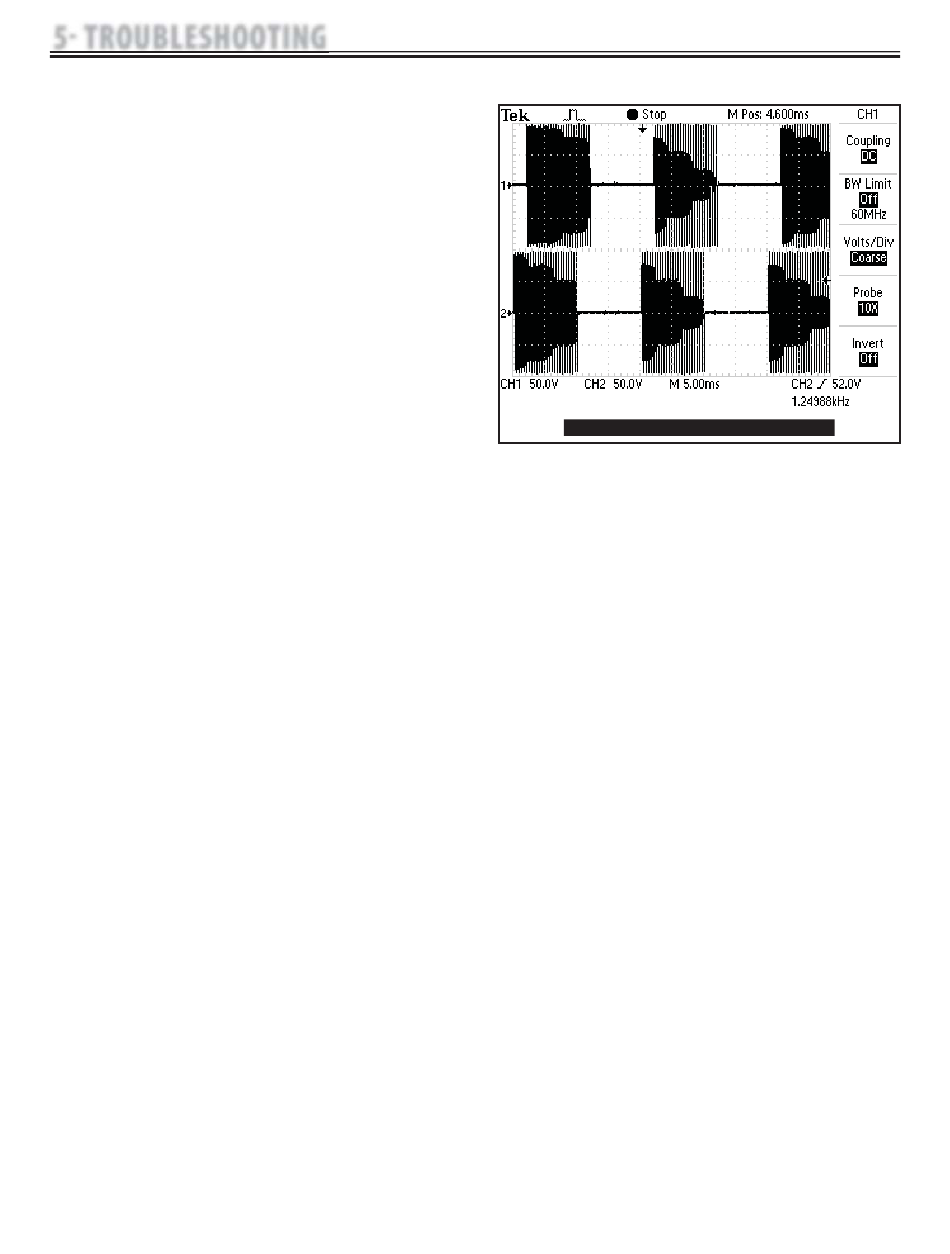

FIGURE 5.7
