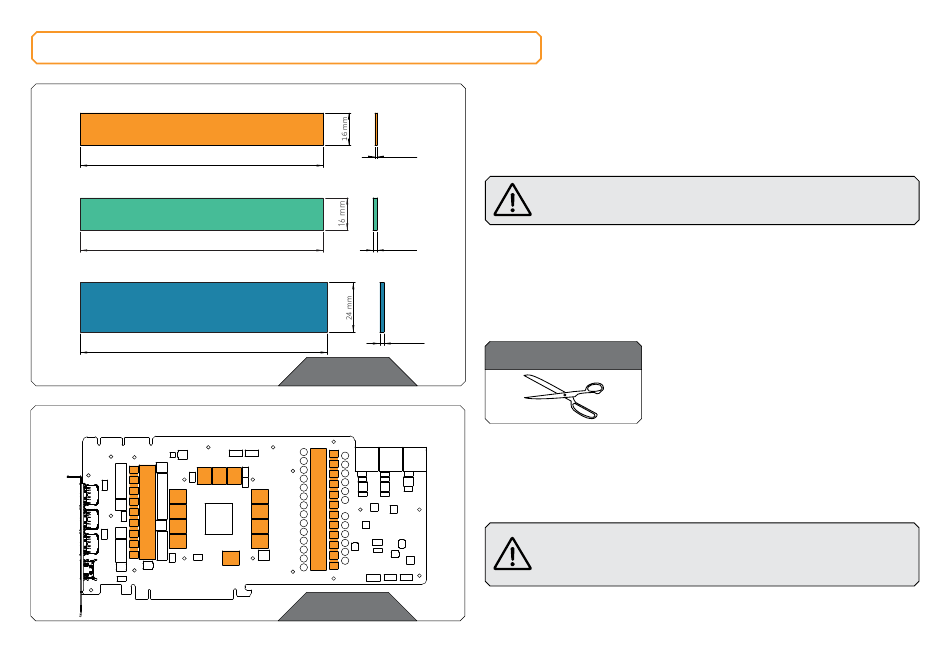

CUTTING AND PLACING THERMAL PADS

Thermal Pad F – 1.0 mm (120 x 16 mm)
120 mm
Thermal Pad F – 2.0 mm (120 x 16 mm)
120 mm
Thermal Pad G – 2.0 mm (120 x 24 mm)
120 mm
Trio RTX™ 3080/3080Ti/3090
STEP 1
Your EK-Quantum Vector
with Thermal Pads that have to be cut into smaller pieces to cover all
the VRM components. EK made sure to provide you with more than
1 mm an adequate quantity of Thermal Pads to complete this Step.
2 mm Replacement thermal pads:
Thermal Pad F 1.0mm – (120 x 16mm) EAN: 3830046996732
Thermal Pad F 2.0mm – (120 x 16mm) EAN: 3830046996756
Thermal Pad G 2.0mm – (120 x 24mm) EAN: 3830046996794
For this step, you will need:
2 mm
STEP 1
Thermal Pad F 1.0 mm
STEP 2
The cardboard is printed in scale 1:1. Cut Thermal Pads to the size
printed on the cardboard. Once cut to the size, Thermal Pads should
be placed on the block, as shown in the picture.
STEP 2
- 11 -
Trio RTX 3080/90 D-RGB block comes
2
CAUTION: You must remove the protective foil from both
sides of the thermal pad before installation.
Scissors
Before attaching the PCB to the Water Block, make sure
all the Thermal Pads are placed correctly!
