EK-Quantum Vector2 Trio RTX 3080 Manual page 13

WITHOUT PVC WASHER
M2.5 x 4 AX1 SCREW
M2.5 PVC WASHER

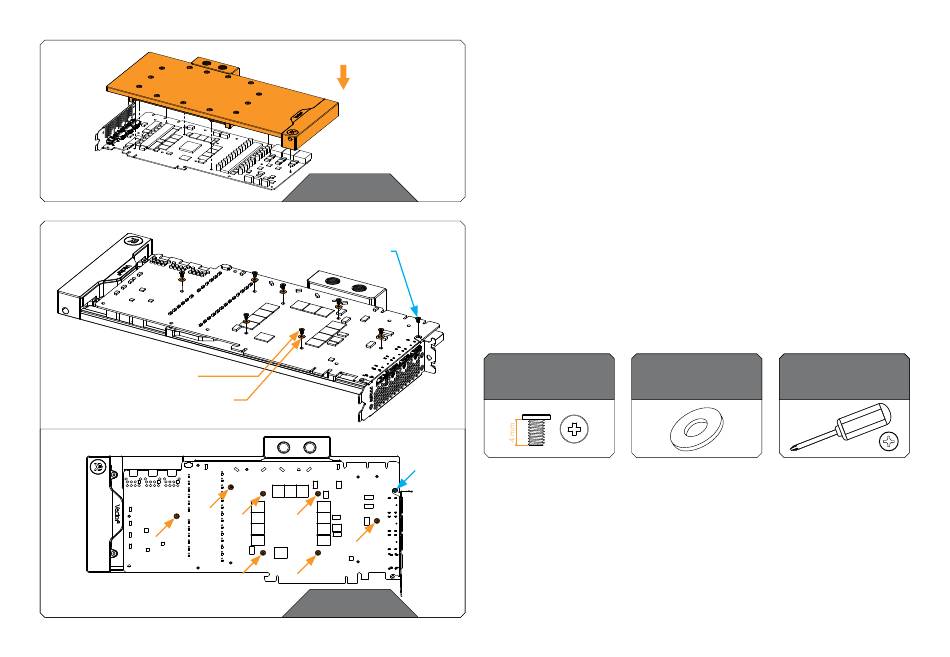

STEP 2
Carefully position the water block with preinstalled standoffs on
the graphics card. During this process, make sure you have aligned
mounting holes of the PCB with holes of the water block.
Pay attention not to use too much force when pressing the
block down to the PCB since chip dies are prone to cracking.
Before attaching the PCB to the Water Block, make sure all the
STEP 2
Thermal Pads are placed correctly!
STEP 3
Use eight (8) M2.5x4 AX1 Screws and seven (7) PVC washers to
tighten the PCB on the water block. Tighten the screws evenly using
the Phillips-head screwdriver. EK recommends you start tightening
the screws around the GPU core first, and then continuing outward
to prevent damage to the GPU.
For this step, you will need:
Screws must be present in the places marked on the picture.
STEP 3
- 13 -
M2.5 x 4 AX1 M 2.5 PVC Washer
(8 pcs) (7 pcs)
Phillips Head
Screwdriver
