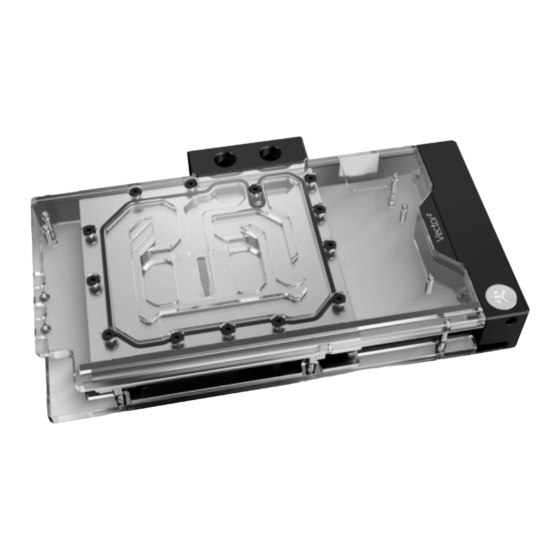

- Page 1 EK-Quantum Vector² Trio RTX 3090 Ti D-RGB GPU WATER BLOCK USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB PREPARING THE WATER BLOCK FOR INSTALLATION CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND ATTACHING THE WATER BLOCK INSTALLING THE BACKPLATE ATTACHING THE BACKPLATE... -
Page 4: Box Contents
BOX CONTENTS EAN: 105460 M2.5x4 AX1 Screw (10 pcs) M2.5x8 AX1 Screw (1 pc) Standoff Ø4.5/2.5 (1 pc) EK-Quantum Vector Trio RTX 3090 Ti D-RGB M3x10 AX1 Screw (1 pc) Polyamid Washer M2.5 0.5mm (10 pcs) Standoff M2.5-M3 x 6.6mm (1 pc) -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 307.5 mm 211.5 mm 183.5 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI - Dimensions: (LxHxW): 307.5 x 155 x 27 mm - D-RGB LED count: 17 - D-RGB cable length: 50 cm - D-RGB connector 3-pin 5V digital LED header Position Description Quantity 105449 Coldplate (Nickel) 105450 Top plate (Plexi) -
Page 7: Preparing The Graphics Card
Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps when installing the EK-Quantum Vector Trio RTX 3090 Ti water block onto your graphics card. -
Page 8: Preparing The Water Block For Installation
PREPARING THE WATER BLOCK FOR INSTALLATION STEP 1 DO NOT Unscrew seven (7) Screws AX1 M2.5 x 8. Remove the backplate REMOVE together with Screws and backplate standoffs. Standoffs must STANDOFFS stay on Screws AX1 M2.5 x 8. Remove cardboard. Save the FROM backplate for later steps. -
Page 9: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS STEP 1 Thermal Pad F – 1.0 mm (120 x 16 mm) Your EK-Quantum Vector Trio RTX 3090 Ti D-RGB block comes with Thermal Pads that have to be cut into smaller pieces to cover all the VRM components. -
Page 10: Applying Thermal Compound
APPLYING THERMAL COMPOUND STEP 1 Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the GPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this step, you will need:... - Page 11 STEP 2 Use eight (8) M2.5 x 4 AX1 Screws and seven (7) PVC washers to M2.5 x 4 AX1 SCREW tighten the PCB on the water block. Tighten the screws evenly using M2.5 PVC WASHER WITHOUT PVC the Phillips-head screwdriver. EK recommends you start tightening WASHER the screws around the GPU core first, and then continuing outward to prevent damage to the GPU.
-
Page 12: Installing The Backplate
INSTALLING THE BACKPLATE STEP 1 Thermal Pad F – 1.0 mm (120 x 16 mm) After attaching the water block, a few more thermal pads need to be cut into smaller pieces to cover all the necessary components. EK made sure to provide you with more than an adequate quantity of 1 mm 120 mm thermal pads to complete this step. -
Page 13: Attaching The Backplate
ATTACHING THE BACKPLATE STEP 1 Place the backplate with seven (7)M2.5 x 8 AX1 Screws with Standoffs onto the PCB. Make sure all the holes are aligned. BACKPLATE Before attaching the backplate, make sure all the Thermal Pads are placed correctly! Do not use excessive force! For this Step, you will need: Phillips Head Screwdriver... -
Page 14: Fittings And Tubing
FITTINGS AND TUBING STEP 1 Screw-in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block to the cooling loop. EK- PLUG G1/4 Do not forget to plug the remaining two openings using the enclosed EK-Plug G1/4 or its equivalent. EK recommends using EK fittings with all EK water blocks. -
Page 15: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. -
Page 16: Warranty
WARRANTY Our products are warranted against defects of materials and quality for a period of 24 months, starting with the date of delivery to the end-user. During this period, products will be repaired or have parts replaced at our discretion, provided that 1) the product is returned to the agent from whom it was purchased;... -
Page 17: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
