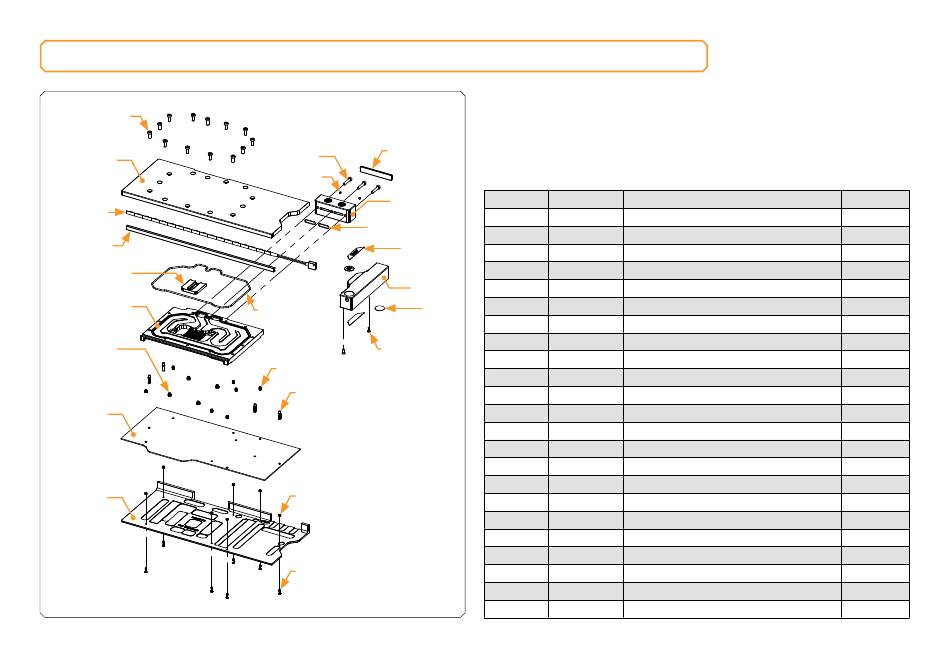

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

20
9
7
3
21
1
16
23
10
11
13
12
8
14
5
2
4
22
6
15
17
19
18

NICKEL PLEXI

- Dimensions: (LxHxW): 334.5 x 155 x 27mm
- D-RGB LED count: 18
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header
Position EAN Description
1 104465 Coldplate (Nickel)
2 103971 Acetal Stand Out
3 104471 LED Cover
4 100663 EK - Badge
5 103964 Mylar sticker
6 8208 Screw M3x8 7991DIN
7 101556 LED D-RGB strip 500/300mm
8 103947 FC Terminal
9 104468 Top plate (Plexi)
10 104475 Backplate (Bl. elox)
11 103942 Terminal Badge
12 104216 Disc magnet 3x3
13 8311 Screw M4x20 DIN7984
14 104106 Terminal OR - 14x1 mm
15 103987 Standoff M3.5-M2.5 x 3
16 103988 Standoff M4-M2.5 x 3mm
17 103986 Standoff M3.5-M2.5 x 11.3mm
18 104187 Screw M2.5x8 AX1
19 104188 Standoff fi 4.5/2.5
20 9024 Screw M4x10 DIN7984
21 103962 Plexi isert
22 104484 Main O-ring 162x2
23 104902 PCB cardboard
- 6 -
Quantity
1
1
1
2
2
2
1
1
1
1
1
2
3
2
7
4
4
7
7
13
1
1
1
