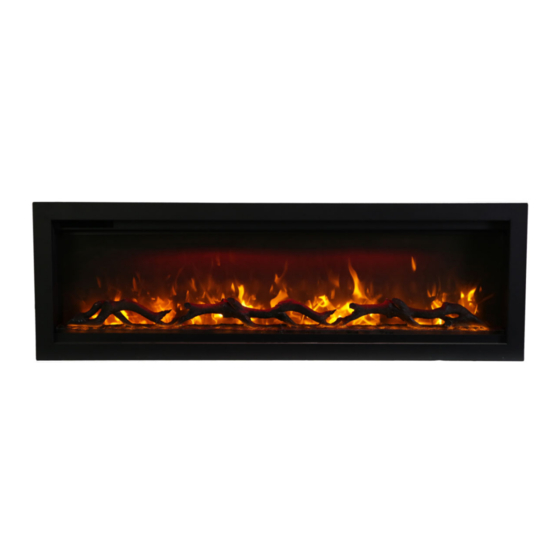

Amantii Symmetry 3.0 Series Repair Manual
  1. Manuals
  2. Brands
  3. Amantii Manuals
  4. Indoor Fireplace
  5. Symmetry 3.0 Series
  6. Repair manual

Amantii Symmetry 3.0 Series Repair Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

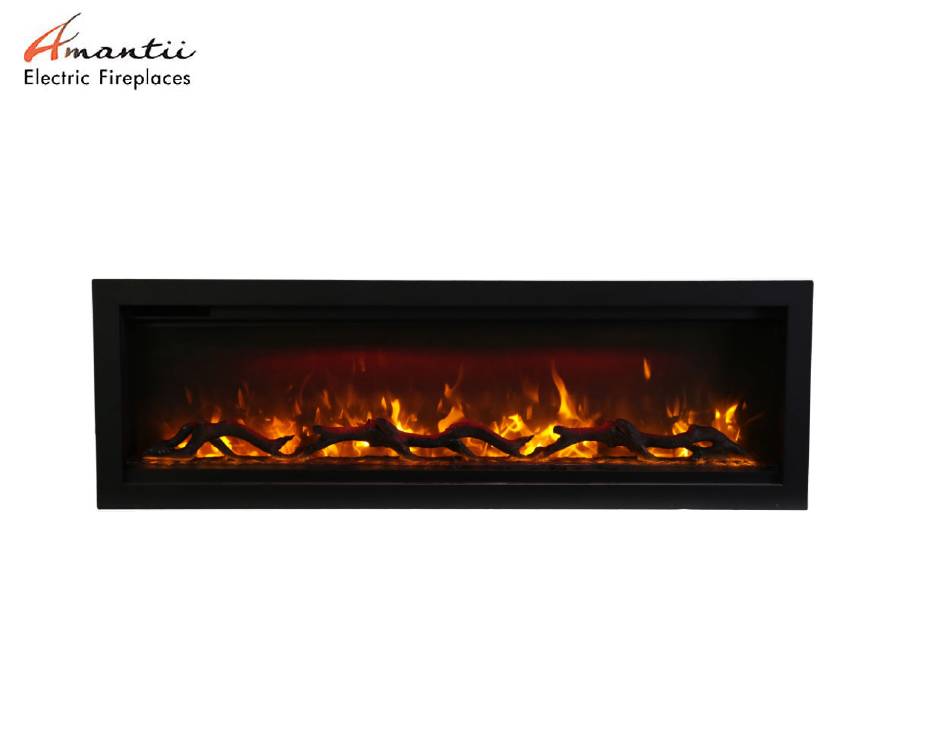

Repair Guide for
Symmetry 3.0 Series
Revision1 02.15.21AC

Advertisement

loading
Need help?

Need help?

Do you have a question about the Symmetry 3.0 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Amantii Symmetry 3.0 Series

Summary of Contents for Amantii Symmetry 3.0 Series

  • Page 1 Repair Guide for Symmetry 3.0 Series Revision1 02.15.21AC...

  • Page 2: Table Of Contents

    Content • Replacing the LED lights • Replacing the flicker motor • Replacing the heater • Replacing the circuit board • Replacing the signal receiver • Replacing the canopy light • Replacing the touch panel • Replacing the Wi-Fi card...

  • Page 3: Replacing The Led Lights

    Replacing the LED tray lights Step 1 To remove the trim, remove the screws circled in red.
  • Page 4 Magnetic stone Trim Note that there are magnetic stones securing the bottom of the trim to the fireplace...
  • Page 5 Step 2 After the trim is removed, remove the front glass panel Front glass panel...
  • Page 6 Step 3 Remove the steel panels holding the glass tray by removing the screws circled in red The steel panels...
  • Page 7 Step 4 To remove the tray glass panel, lift one end upwards. The tray lights are below the glass panel.
  • Page 8 Step 5 Replacing the failed LED strip with a new one requires removing the screws and unplugging the buckle Unscrew Unplug...
  • Page 9 Replace Flame LED light You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights. Step 1 Once the screws circled in red are unfastened, remove the steel bar fixing the back glass and remove the glass...
  • Page 10 Zoomed View Zoomed View Step 2 Simply undo the screws circled in red to remove the flame stencil...
  • Page 11 Flame LED strips are attached to the back of the flame stencil Horizontal view...
  • Page 12 BUCKLE HOOK Step 3 Disconnect the LED strip from the hook and unplug the buckle to replace the LED strip...

  • Page 13: Replacing The Flicker Motor

    Replacing the flicker motor You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights. Step 1 The steel bar fixing the back glass must be removed by unscrewing the screws circled in red. The back glass can then be removed...
  • Page 14 Zoomed View Zoomed View Step 2 Simply undo the screws circled in red to remove the flame stencil...
  • Page 15 On the left side is the flame motor that appears after the flame stencil has been removed...
  • Page 16 Step 3 Remove the screws Disconnect the Remove the screw to take off the motor motor from the rod...
  • Page 17 Step 4 Remove the screws circled in red.
  • Page 18 Step 5 Remove the inner top panel by removing the screws circled in red...
  • Page 19 Step 6 INNER TOP PANEL A new flame motor can be replaced by unbuckling the flame motor from the circuit board...
  • Page 20 Replace the heating element You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights Step 1 Once the steel bar supporting the back glass has been removed, remove the screws circled in red and remove the glass from its mounting.
  • Page 21 Step 2 Remove the screws circled in red to take off the inner top panel.
  • Page 22 The inner top panel holds the heating element, circuit board, signal receiver, and WiFi card. INNER TOP PANEL HEATING ELEMENT...
  • Page 23 Step 3 To disconnect the heating element from the inner top panel, remove the screws circled in red...
  • Page 24 Step 4 The heating element must be unplugged to be changed...
  • Page 25 Replace the PCB board You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights. Step 1 The steel bar fixing the back glass can be removed by unscrewing the screws circled in red and then removing the glass...
  • Page 26 Step 2 Remove the screws circled in red to take off the inner top panel.
  • Page 27 The inner top panel holds the heating element, circuit board, signal receiver, and WiFi card. PCB board INNER TOP PANEL...
  • Page 28 Step 3 Replacing the failed circuit board requires unscrewing the screws circled in red...

  • Page 29: Replacing The Signal Receiver

    Replace the signal receiver You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights Step 1 The steel bar fixing the back glass can be removed by unscrewing the screws circled in red and then removing the glass...
  • Page 30 Step 2 Remove the screws circled in red to take off the inner top panel.
  • Page 31 Step 3 Remove the screws circled in red to disconnect the signal receiver from the inner top panel.
  • Page 32 Step 5 Unplug the signal receiver from the circuit board and replace it with a new one.

  • Page 33: Replacing The Canopy Light

    Replace the Canopy light You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights Step 1 The steel bar fixing the back glass can be removed by unscrewing the screws circled in red and then removing the glass...
  • Page 34 Step 2 Remove the screws circled in red to take off the inner top panel...
  • Page 35 Step 3 Unscrew the screws circled in red to disconnect the heating element from the inner top panel.
  • Page 36 The heating element, PCB board, Canopy light ,Signal receiver and Wi-Fi card are all fixed on inner top panel The heating element The canopy light...
  • Page 37 Step 4 Unscrew the screws circled in red to disconnect the Canopy light from the inner top panel.
  • Page 38 Step 5 Unplug to change a new LED strip for Canopy light. LED strip for Canopy light...

  • Page 39: Replacing The Touch Panel

    Replace the Touch panel Follow STEP 1 to 4 in Replace tray LED light, you arrive at here. Step 1 The steel bar fixing the back glass can be removed by unscrewing the screws circled in red and then removing the glass...
  • Page 40 Step 2 Remove the screws circled in red to take off the inner top panel...
  • Page 41 The inner top panel holds the heating element, circuit board, signal receiver, and WiFi card. Touch panel INNER TOP PANEL...
  • Page 42 Step 3 Unscrew the screws circled in red to take off the touch panel.

  • Page 43: Replacing The Wi-Fi Card

    Replace the Wi-Fi card Follow STEP 1 to 4 in Replace tray LED light, you come to here. Step 1 Unscrew the screws circled in red to remove the steel bar fixing the back glass and then take off the back glass.
  • Page 44 Step 2 Unscrew the screws circled in red to take off the inner top panel.
  • Page 45 The heating element, PCB board, Canopy light ,Signal receiver and Wi-Fi card are all fixed on inner top panel Wi-Fi card INNER TOP PANEL...
  • Page 46 Step 3 To replace a new WiFi card, remove the screw circled in red and unplug the old one.
