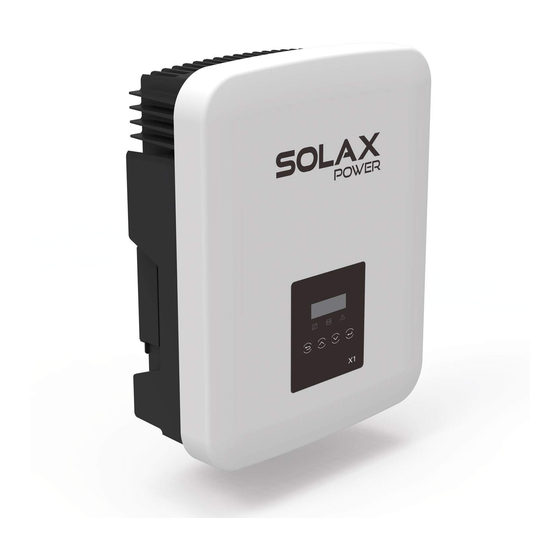

SolaX Power X1-3.0-T-DL User Manual
  1. Manuals
  2. Brands
  3. SolaX Power Manuals
  4. Inverter
  5. X1-3.0-T-DL
  6. User manual

SolaX Power X1-3.0-T-DL User Manual

3.0kw - 5.98kw
Hide thumbs Also See for X1-3.0-T-DL:
Table of Contents

Advertisement

Quick Links

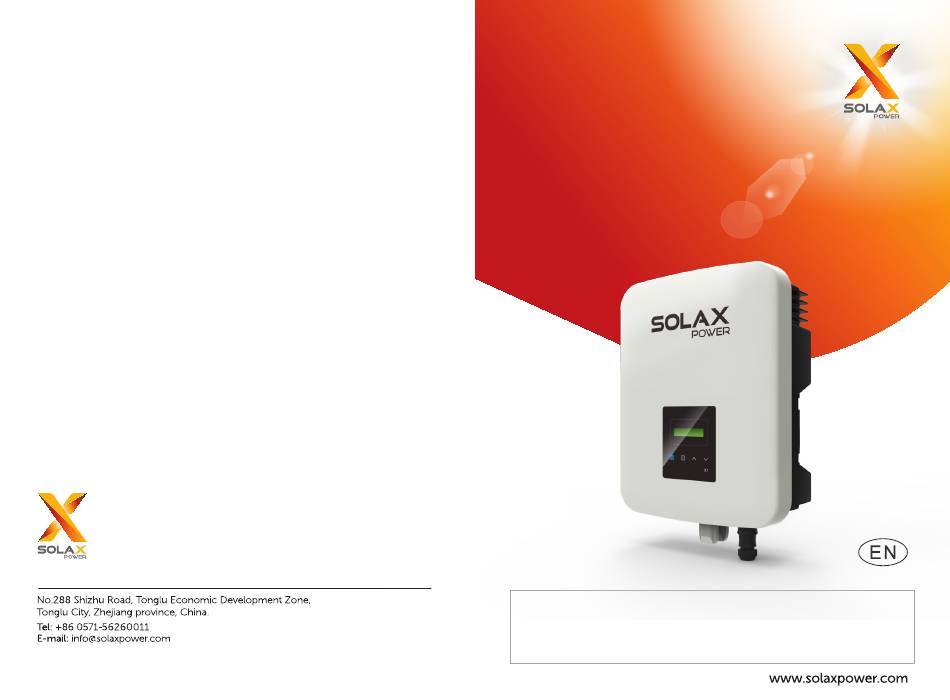

Solax Power Network Technology(Zhe jiang) Co,. Ltd.
X1 Series User Manual
3.0kw - 5.98kw

Copyright Declaration

The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd.
Any corporation or individual should not plagiarize, partitially or fully copy (including
software,etc.), and no reproduction or distribution of it in any form or by any means. All rights
reserved. SolaX Power Network Technology (Zhe jiang) Co.,Ltd. reserves the right of final
interpretation.
614.00392.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1-3.0-T-DL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SolaX Power X1-3.0-T-DL

Summary of Contents for SolaX Power X1-3.0-T-DL

  • Page 1: Copyright Declaration

    Solax Power Network Technology(Zhe jiang) Co,. Ltd. Copyright Declaration The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd. Any corporation or individual should not plagiarize, partitially or fully copy (including software,etc.), and no reproduction or distribution of it in any form or by any means. All rights reserved.

  • Page 2: Table Of Contents

    Contents Contents 1 Note on this Manual 1.1 Scope of Validity 1.2 Target Group 1.3 Symbols Used 2 Safety 2.1 Appropriate Usage 2.2 Important Safety Instructions 2.3 Explanation of Symbols 2.4 EC Directives 3 Introduction 3.1 Basic Features 3.2 Terminals of the Inverter 3.3 Dimension 4 Technical Data 4.1 DC Input...

  • Page 3: Scope Of Validity

    Contents Notes on this Manual 7 Troubleshooting 1 Notes on this Manual 7.1 Troubleshooting 1.1 Scope of Validity 7.2 Routine Maintenance This manual is an integral part of X1 Series, It describes the assembly, installation, commissioning, maintenance and failure of the product. Please read 8 Decommissioning it carefully before operating.

  • Page 4: Safety

    Safety Safety 2 Safety Surge protection devices (SPDs) for PV installation ► 2.1 Appropriate Usage WARNING! Over-voltage protection with surge arresters should be provided The X1 Series are PV inverters which can convert the DC current of the PV generator when the PV power system is installed.

  • Page 5: Important Safety Instructions

    Safety Safety 2.2 Important Safety Instructions DANGER! WARNING! Danger to life due to high voltages in the inverter! Do not operate the inverter when the device is running. All work must be carried out by qualified electrician. The appliance is not to be used by children or persons with reduced physical sensory or mental capabilities, or lack of WARNING! experience and knowledge, unless they have been given...

  • Page 6: Explanation Of Symbols

    Safety Safety PE Connection and Leakage Current 2.3 Explanation of Symbols This section gives an explanation of all the symbols shown on the inverter and • The inverter incorporates a certified internal Residual Current Device (RCD) on the type label. in order to protect against possible electrocution and fire hazard in case of a malfunction in the cables or the inverter.

  • Page 7: Introduction

    Safety Introduction 3. Introduction 2.4 CE Directives This chapter follows the requirements of the European low voltage directives, 3.1 Basic Features which contains the safety instructions and conditions of acceptability for the endues system, which you must follow when installing, operating and servicing Thanks for your purchasing with SolaX X1 Series inverter.

  • Page 8: Dimension

    Introduction Technical Data 4. Technical Data Object Description DC Switch (optional) 4.1 DC Input Waterproof Lock Valve DC Connector X1-3.0-T-D X1-3.3-T-D X1-3.6-T-D X1-4.2-T-D X1-4.6-T-D X1-5.0-T-D 5.3/5.98 -T-D Ground screw Model X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N X1-5.0-T-N 5.3/5.98 -T-N Pocket WiFi/LAN/GPRS (optional) Max.

  • Page 9: Efficiency, Safety And Protection

    4.4 General Data Copyright Declaration The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd. Any corporation or individual should not plagiarize, partitially or fully copy (including software,etc.), and no reproduction or distribution of it in any form or by any means. All rights reserved. SolaX Power Network Technology (Zhe jiang) Co.,Ltd.

  • Page 10: Installation Precaution

    Installation Installation 5.3 Installation Precaution 5.4 Installation Steps Ø Preparation X1 Series inverter is designed for outdoor installation (IP 65). Make sure the installation site meets the following conditions: Below tools are needed before installation. Not be exposed to glare. Not in areas where highly flammable materials are stored.

  • Page 11: Connections Of The Inverter

    Installation Installation Connection Steps 5.5 Connections of the Inverter Below tools are needed before connection. 5.5.1 The Main Steps to Connect to the Inverter Wire crimper recommended model : PV String Connection Ø H4TC0001 manufacturer:Amphenol The inverter has a couple of PV connectors which can be connected in series into 2- Wire crimper Strpping pliers strings PV modules.
  • Page 12 Installation Installation Grid Connection Ø d) Separate the AC plug into three parts as below. - Hold the middle part of the female insert, rotate the back shell to X1 series inverter are designed for single phase grid. Voltage range is 220/230/240V, loose it, and datach it from female inset.
  • Page 13 Installation Installation Ø Selection of Fuses and Cables connection NOTE! Main cable(AC line cable)shall be short circuit protected and thermal overload protected. Always fit the input cable with fuse. Normal gG(US:CC or T)fuses will protect the input cable in short circuit situation. They will also prevent damage to adjoining equipment. Dimension the fuses according to local safety regulations, appropriate input voltage and the related current of the solar inverter.
  • Page 14 Installation Installation RS 485/Meter/DRM Ø RS 485 Connection Steps: 1) Firstly unscrew the screw from the 485 port.(PH1 cross screwdriver . a. RS 485 torque:0.8±0.1Nm) RS 485 is one standard communication interface which can transmit the real data 2) Prepare a communication cable and trip the insulation from it. from inverter to PC or other monitoring equipments.
  • Page 15 Installation Installation Upgrade 3) Then insert U-disk into the USB port on the bottom of the inverter. Then User can update the inverter system through the U-disk. turn on DC switch or connect the PV connector, the LCD will show the main pictures as below.

  • Page 16: Run The Inverter

    Installation Operation Method 5.6 Run the Inverter 6. Operation Method Ø Start inverter after checking all below steps: a) Check that device is xed well on the wall. 6.1 Control panel b) Make sure all the DC breakers and AC breakers are disconnected. c) AC cable is connected to grid correctly.

  • Page 17: Lcd Structure

    Operation Method Operation Method 6.2 LCD Structure 6.3 LCD Operation Enter Please refer to the inverter for the most updated structure >Safety Country **Previous page Grid >AS4777< Back *User can also see the U,I & P Down 1 level 2 level 3 level of the PV.
  • Page 18 Operation Method Operation Method Ø LCD Display (3) Power Factor: ( For speci c country if required by the local grid.) •1 level There are 6 modes for selecting: Off , Under-Excited, Over-Excited, PF(p), Q( u ). a) The first line displays the parameters(Power, Today and Total) and the values. All parameters are shown below.
  • Page 19 Operation Method Operation Method →The way to operate the value : (9) New Password: Installer can set the new password here. a) Just watch the parameter of the mode by short pressing (Λ) and (V) . →The way to set password: b) If you change other mode by short pressing (Λ) and (V) , you need return the Power Factor a) Long press the key (V) to enter the interface, and long press again to modify .

  • Page 20: Troubleshooting

    Troubleshooting Troubleshooting 7 Troubleshooting 7.1 Troubleshooting This section contains information and procedures for solving possible problems with X1 series inverters, and provides you with troubleshooting tips to identify and solve most problems that could occur with the X1 series inverters. This section will help you narrow down the source of any problems you may encounter.

  • Page 21: Routine Maintenance

    Troubleshooting Troubleshooting 7.2 Routine Maintenance Inverters do not need any maintenance or correction in most condition,but if the inverter often loses power due to overheating,this can be the following reason: ● The cooling fins on the rear of house are coverd by dirts. Clean the cooling fins with a soft dry cloth or brush if necessary.

  • Page 22: Decommissioning

    Decommissioning 8 Decommissioning 8.1 Dismantling the Inverter Disconnect the inverter from DC Input and AC output. Wait for 5 minutes for de-energizing. Disconnect communication and optional connection wirings. Remove the inverter from the bracket. Remove the bracket if necessary. WARNING ! Before dismantling the inverter, please be sure to disconnect the DC switch, and then unplug the PV and AC cables, otherwise it will lead to an electric shock hazard.
