ENDA EI1410 NTC Quick Start Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the device is
damaged by not following instructions detailed in the manual. The company shall not be responsible for any
damage or losses however caused, which may be experienced as a result of the installation or use of this product.

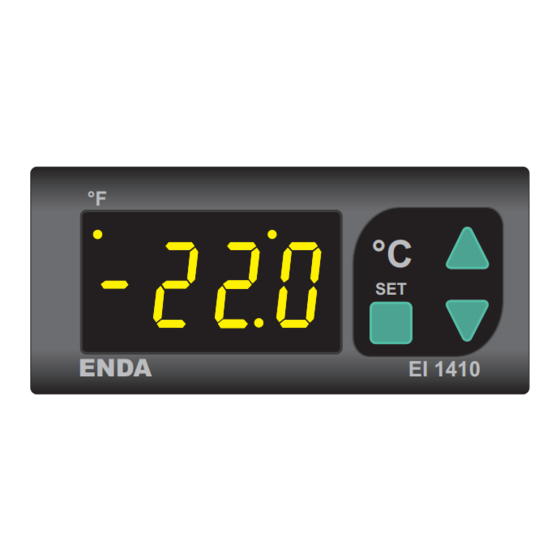

ENDA EI1410 NTC TEMPERATURE INDICATOR
Thank you for choosing ENDA EI1410 NTC temperature indicator.
* 77 x 35mm sized.
* 4 digits display.
* Easy to use by front panel keypad.
* Display can be selected decimal or integer.
* Temperature unit can be selected °C or °F.
* Maximum and minimum measurement values are registered.
* Upper and lower limits of the alarm value can be adjusted
* CE marked according to European Norms.
Order Code : EI1410-NTC-
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Scale
Sensitivity
Accuracy
EMC
Safety requirements
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
1
Supply Voltage
230VAC...230V AC
24............24V AC/DC
12............12V AC/DC
0 ... +50°C/-25 ... 70°C
80% up to 31 decreasing linearly 50% at 40
According to EN 60529
Max. 2000m
230V AC +10% -20%, 50/60Hz or 24V AC/DC 10%, 50/60Hz or 12V AC/DC 10%, 50/60Hz
Max. 4 VA
2.5mm² screw-terminal connections
-60.0°C...150.0°C
Decimal
-60°C...150°C
Integer
0.1°C
± 1°C
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
The device is designed to operate in controlled electromagnetic environment)
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
Suitable for flush-panel mounting.
W77xH35xD71mm
EI1410-230VAC
EI1410-24 and EI1410-12
Self extinguishing plastics.
Fax : +90 216 365 74 01
°F
ENDA
.
Front panel : IP65 ,
±
Approx. 190g (after packing)
Approx. 110g (after packing)
1/3
°C
SET
SET
EI 1410
Rear panel : IP20
±
EI1410-E-08
